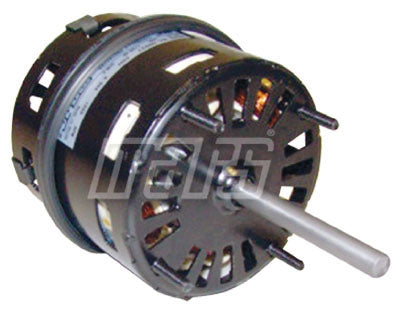

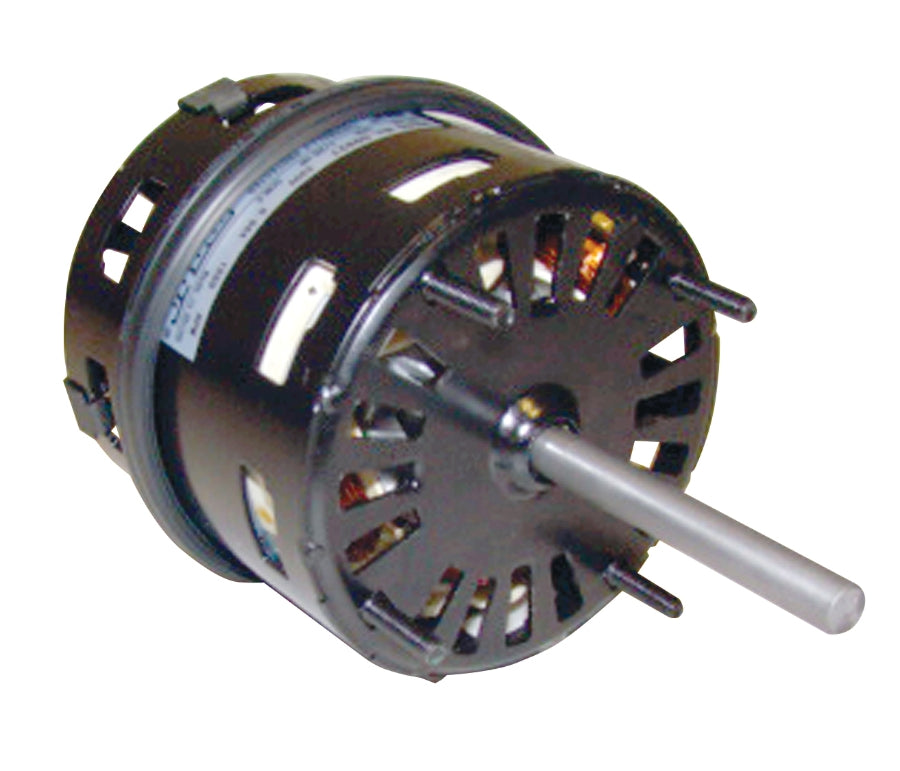

Mars Motors & Armatures 09933 1/20 HP 208 to 230 VAC 1-Phase 60 Hz 1.3 A 1550 RPM NEMA Frame Size 3.3

Product Description

The Mars Motors & Armatures 09933 is a refrigeration evaporator fan motor. It has a power rating of 1/20 horsepower and operates at a voltage of 208 to 230 volts AC. The motor runs on a frequency of sixty hertz and has a full load amp rating of 1.3 amps. With a speed rating of one thousand five hundred fifty RPM and a NEMA frame size of three point three, this motor is suitable for various refrigeration applications.

• Voltage: 208 to 230 VAC, single-phase
• Speed: 1550 RPM at one speed
• Application: Used in commercial refrigeration evaporator fans and blowers

Product Highlights

This motor features an open enclosure and uses shaded pole technology for efficient operation. It is designed with B insulation class to ensure durability and safety while in use.

Product Information

Standard Information

• Brand: Mars Motors & Armatures
• Type: Refrigeration motor

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.3 Amp
• Number of Speeds: 1
• Speed Rating: 1550 RPM
• NEMA Frame Size: 3.3
• Insulation Class: B
• Mounting Type: Through bolt
• Ambient Temperature Rating: 40°F
• Shaft Size: 5/16 inch diameter x 2.25 inch length
