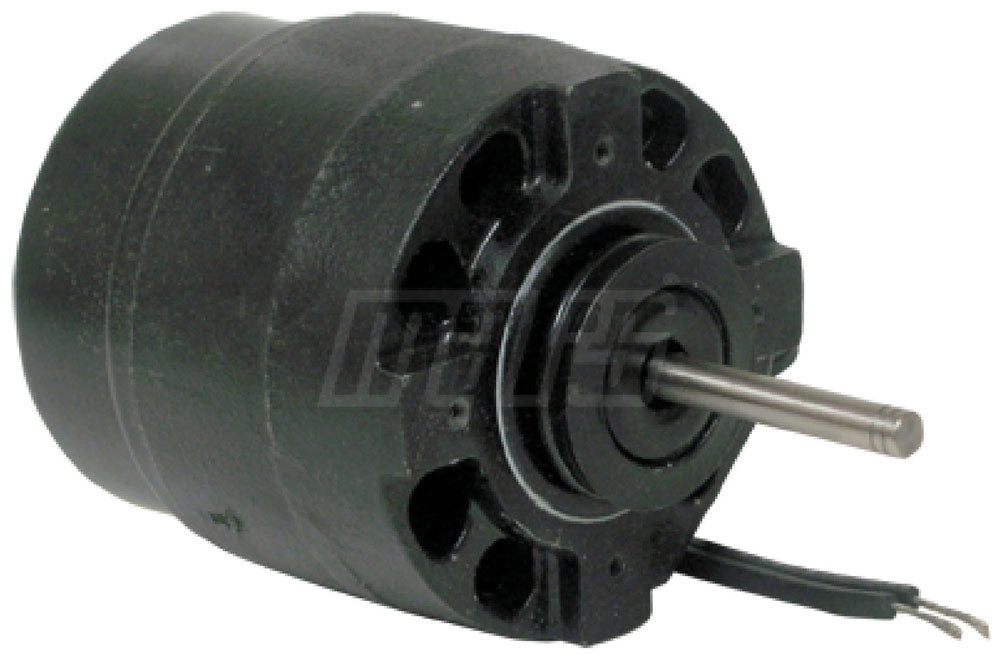

Mars Motors & Armatures 01342 1/20 HP 208 to 230 VAC 1-Phase Refrigeration Fan Motor

Product Description

The Mars Motors & Armatures 01342 is a refrigeration fan motor with a power rating of one twenty horsepower. It operates on a voltage range of two hundred eight to two hundred thirty volts AC and is designed for one-phase use. With a speed rating of one thousand five hundred fifty RPM, this motor is ideal for refrigeration applications.

• Designed for horizontal mounting with shaft down
• Features an open enclosure and shaded pole design
• Constructed with cast iron for durability

Product Highlights

This motor is suitable for various refrigeration tasks. It features a one-speed operation and includes a standard lead length, making installation straightforward.

Product Information

Standard Information

• Manufacturer: Mars Motors & Armatures
• UPC: 685744013426

Technical Specifications

• Power Rating: 1/20 HP
• Voltage Rating: 208 to 230 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 1.1 Amp
• Number of Speeds: 1
• Speed Rating: 1550 RPM
• NEMA Frame Size: 11
• Insulation Class: B
• Frame Material: Cast Iron
• Mounting: Horizontal and Shaft Down
• Application: Refrigeration
• Approval: UL, UR, CSA
• Rotation Type: Counter Clockwise
• Size: 4 Inch Diameter x 4.82 Inch Length
• Shaft Size: 5/16 Inch Diameter x 2 Inch Length
• Ambient Temperature Rating: 125 Deg C
• Includes: 34 Inch Lead
• Excludes: Capacitor
