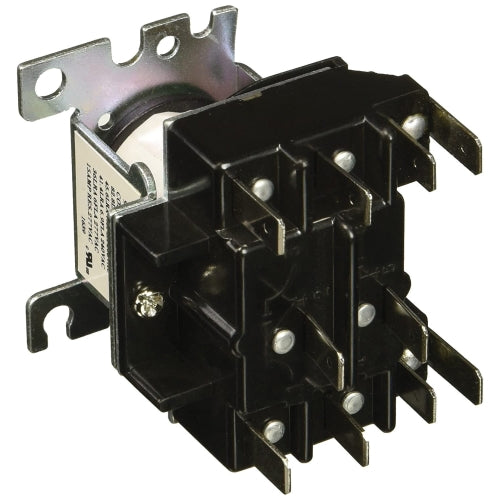

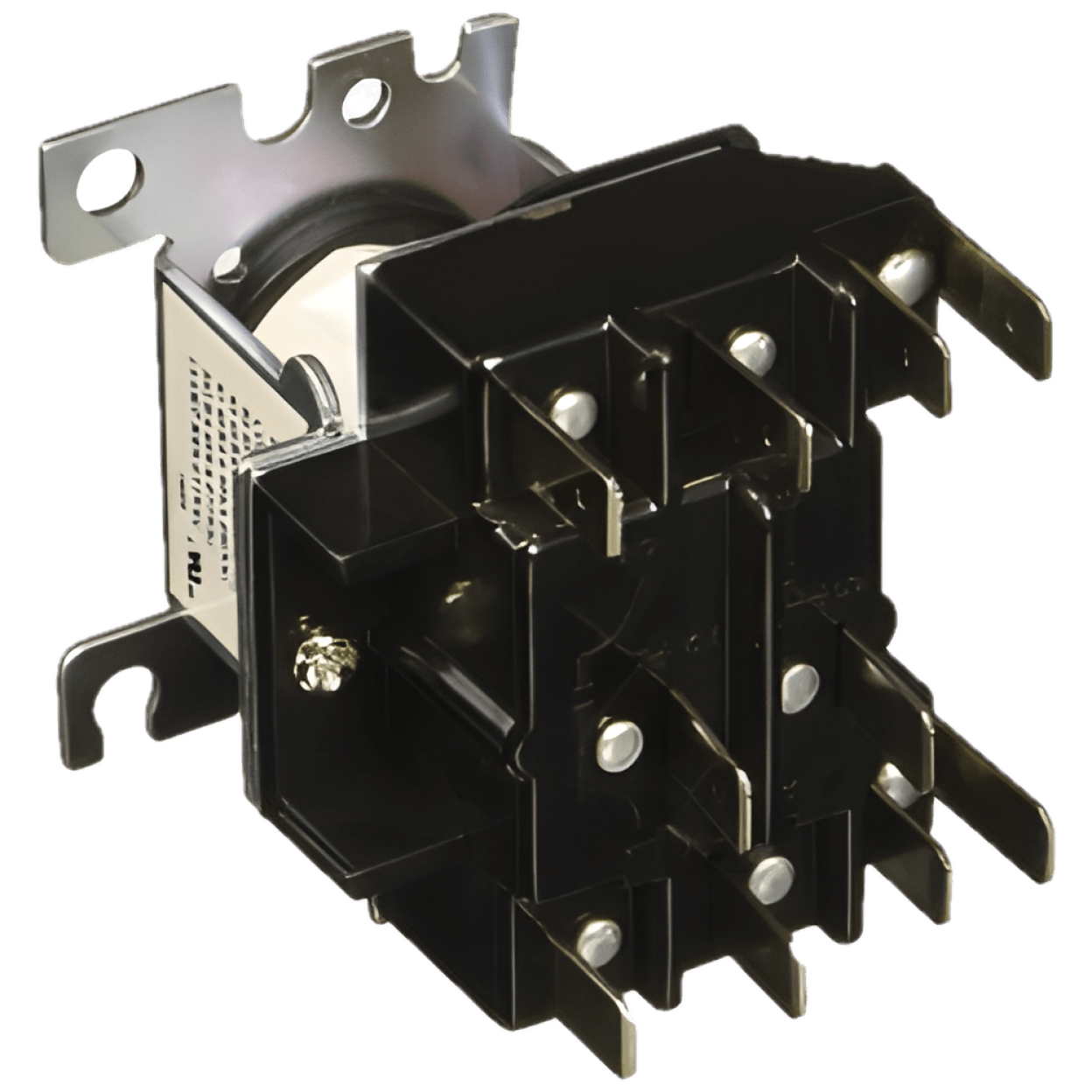

MARS Motors and Armatures 92341 Mars 110/120V 25A Switching 2PDT HVAC Relay

Product Description

The MARS Motors and Armatures 92341 is a reliable HVAC relay designed for effective control in heating and air conditioning systems. This relay operates at a coil voltage of 110/120 volts and is rated for a current of twenty-five amps. It features a two-pole design with a two-pole double throw (2PDT) configuration, suitable for various HVAC applications.

• Coil Voltage: 110/120V
• Amperage Rating: 25A Switching
• Contact Configuration: 2PDT

Product Highlights

This HVAC relay is ideal for switching heavier loads with a compact design. It can handle full load amps with both inductive and resistive loads, making it versatile for different HVAC setups.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 92341

Technical Specifications

• Coil Voltage: 110/120V
• Ampere Rating: 25A Switching
• Frequency Rating: 50/60 Hz
• Contact Configuration: 2PDT
• Number of Poles: 2
• Full Load Amps-Inductive: 15A at 120/277VAC
• Full Load Amps-Resistive: 25A at 277VAC
• Drop Down Voltage: >=24VAC
• Pickup Voltage: <=96VAC
• Hold Voltage: 96VAC
• Terminal Type: Quick Connect
• Standards/Approvals: UL and CUR Listed
