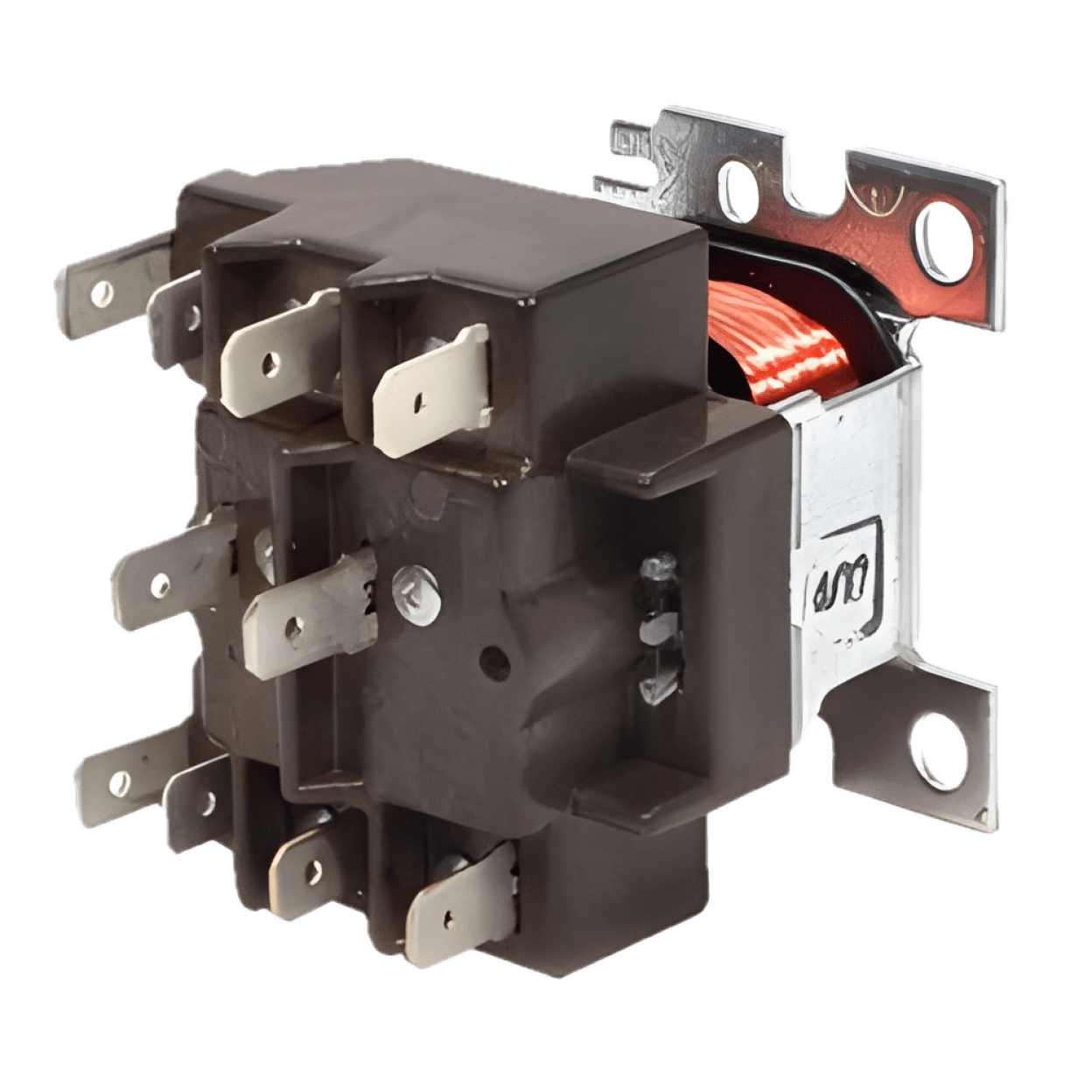

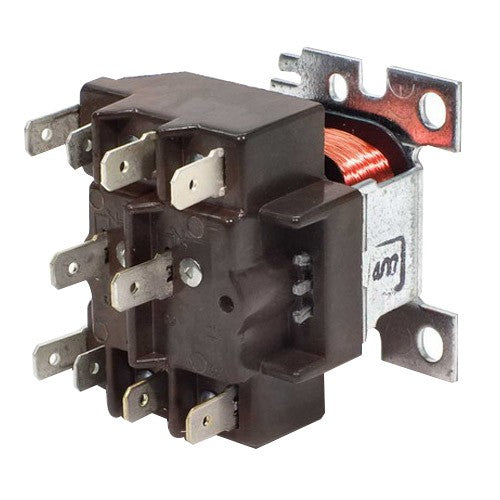

MARS Motors and Armatures 92340 Mars 2-Pole Switching Relay, DPDT, Quick-Connect Terminal, 24V

Product Description

The MARS Motors and Armatures 92340 is a 2-pole switching relay with a DPDT contact configuration. It is designed for use in HVAC systems and other electrical applications. This relay has a contact rating of twenty-five amps at 277 VAC resistive and fifteen amps at 277 VAC inductive, making it suitable for heavy load applications.

• Quick-connect terminal connection for easy installation
• Standard coil rating of twenty-four volts
• Compatible with various heating, cooling, and refrigeration systems

Product Highlights

The MARS 92340 relay ensures reliable switching for HVAC systems and has a broader application in other machinery where high electrical load management is needed.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 92340

Technical Specifications

• Contact Configuration: DPDT
• Contact Rating: 25A at 277VAC resistive, 15A at 277VAC inductive
• Size: 2.13 inch x 1.88 inch x 2.25 inch
• Coil Rating: 24V
• Frequency: 50/60 Hz
• Drop Down Voltage: >=4.8VAC
• Pickup Voltage: <=19.2VAC
• Standards: UL and CUR
• Bracket Type: Flange
