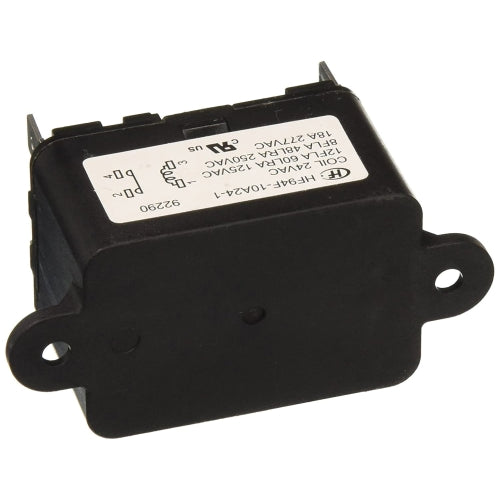

MARS Motors and Armatures 92290 Mars 24V 18A SPST General Purpose Switching Relay

Product Description

The MARS Motors and Armatures 92290 is a reliable 24V 18A SPST general-purpose switching relay designed for HVAC applications. It features a single-pole contact configuration and is suitable for various tasks within heating, ventilation, and air conditioning systems. This relay ensures efficient switching and control of HVAC components.

• Full load amps-inductive: 8A
• Full load amps-resistive: 16A
• UL and CUR Listed for safety compliance

Product Highlights

This product is crafted for efficient HVAC system management, offering dependable performance in demanding environments.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Coil Voltage: 24V

Technical Specifications

• Ampere Rating: 18A
• Frequency Rating: 60 Hz
• Drop Down Voltage: 4.8V
• Pickup Voltage: 20.4V
• Hold Voltage: 13.2V
• Inrush Current: 55A
• Bracket Type: Flange
• Terminal: Quick Connect
