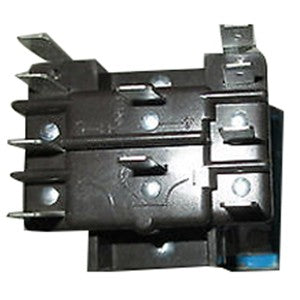

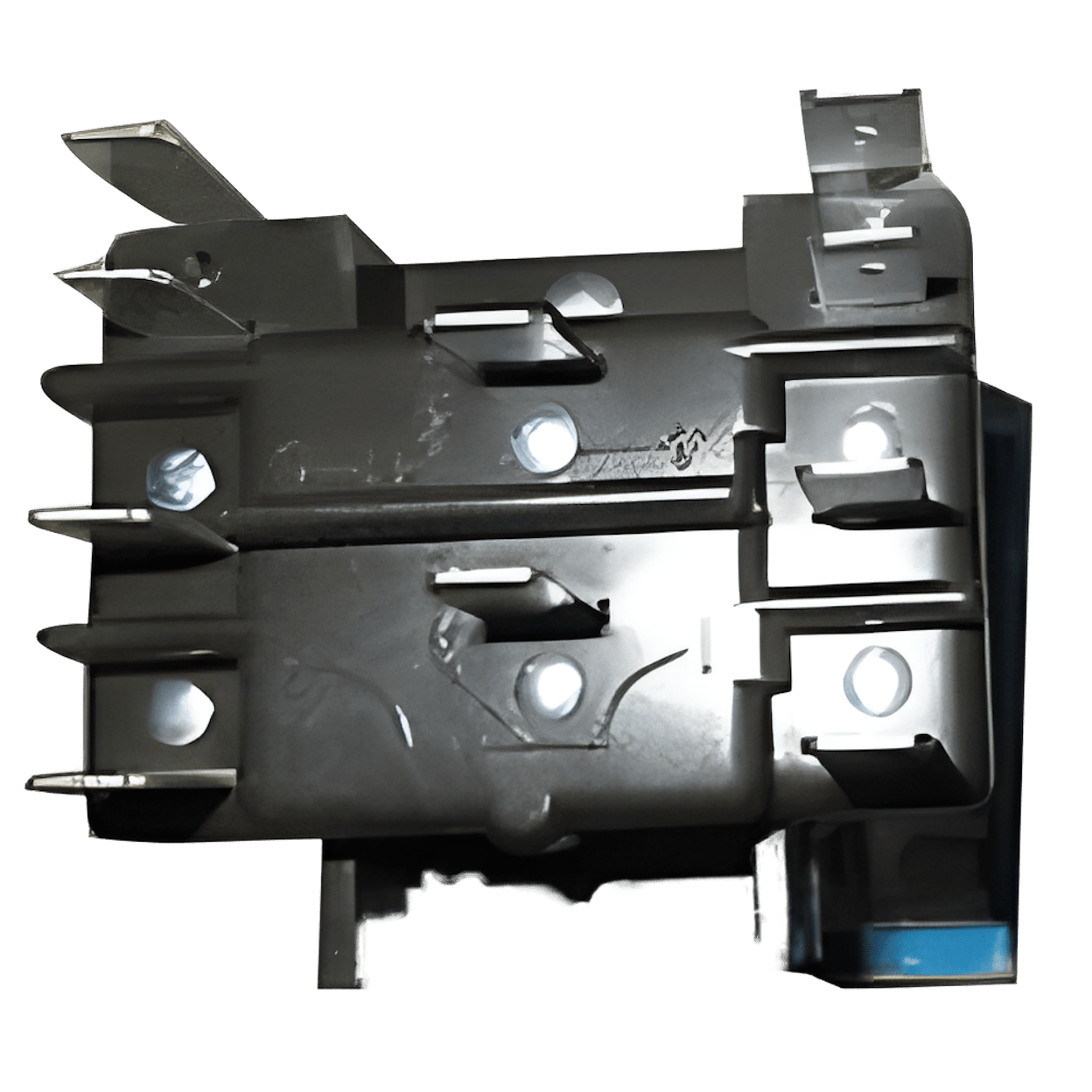

MARS Motors and Armatures 90341 2-Pole Air Conditioning Relay 120V

Product Description

The MARS Motors and Armatures 90341 is a reliable 2-pole air conditioning relay. It operates at 120 volts and is designed for use in HVAC systems. This relay is suitable for contact ratings of 25 amps at 277VAC resistive loads and 15 amps at 277VAC inductive loads.

• Contact Rating: 25A At 277VAC Resistive
• Coil Rating: 120V
• UL Listed and CSA Certified

Product Highlights

This relay is utilized in various applications such as air conditioning, refrigeration, and heating. It features a quick connect connection type and works effectively with a frequency rating of 50/60 Hz.

Product Information

Standard Information

• Item Type: HVAC Contactors & Fan Relays
• Number Of Poles: 2

Technical Specifications

• Voltage Rating: 96V Hold
• Pickup Voltage: 96VAC
• Drop Down Voltage: 24VAC
• Dimensions: 2.13 inches L x 1.88 inches W x 2.25 inches H
• Coil Voltage: 120V
• Frequency Rating: 50/60 Hz
• Standards: UL Listed, CSA Certified
