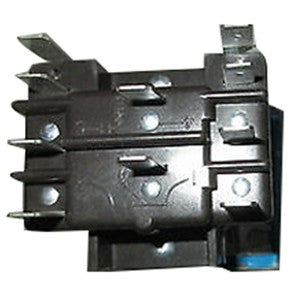

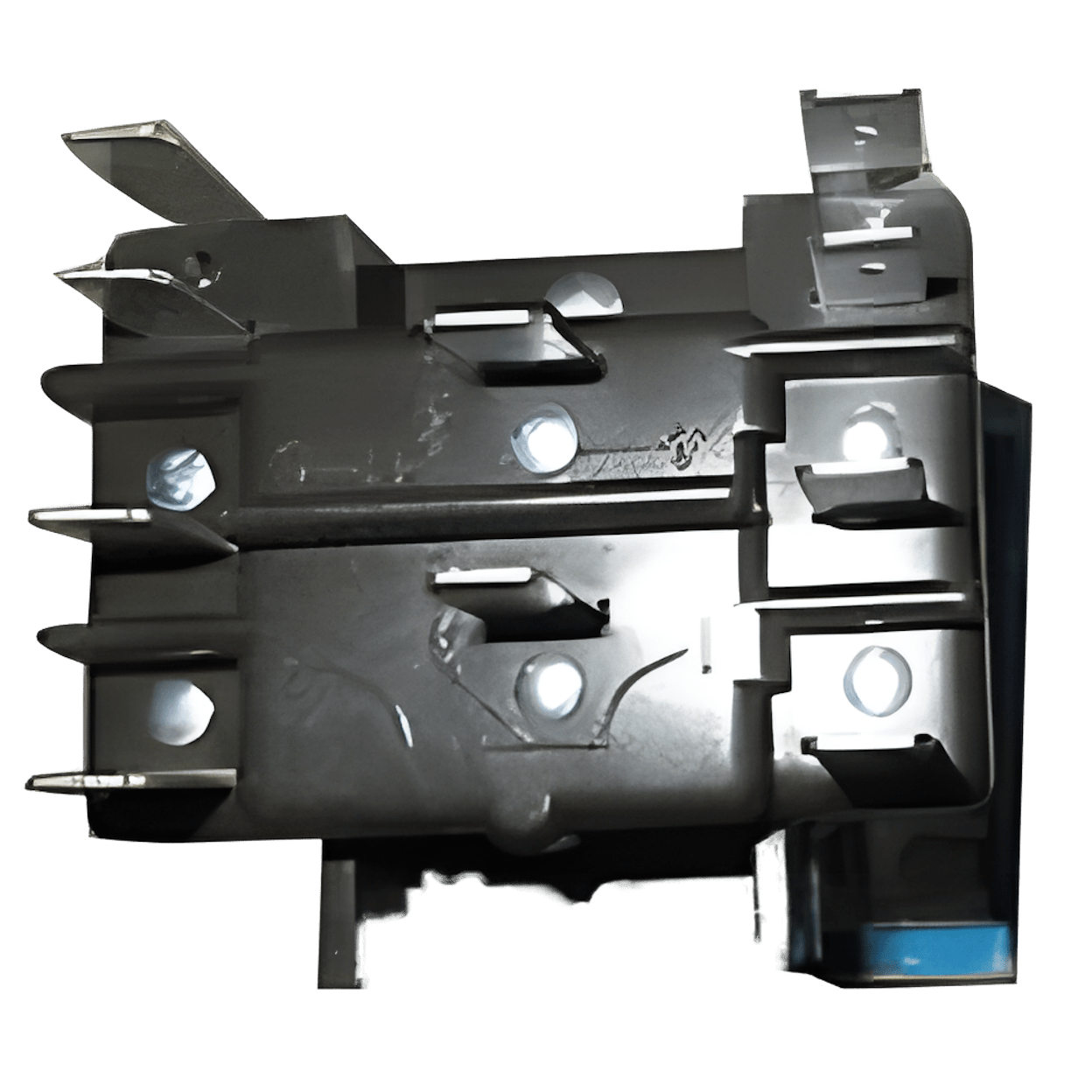

MARS Motors and Armatures 90340 2-Pole Air Conditioning Relay, DPDT, 24V

Product Description

The MARS Motors and Armatures 90340 is a 2-pole air conditioning relay designed for various HVAC applications. It features a DPDT contact configuration suitable for air conditioning systems. This relay can handle a contact rating of 25A at 277VAC for resistive loads and 15A at 277VAC for inductive loads.

• Rated at 25A for resistive and 15A for inductive loads.
• Coil rating of 24V with a hold voltage of 19.2VAC.
• Compatible with quick connect connections.

Product Highlights

This relay is versatile for HVAC systems, refrigeration, and heating units. It can also be used in general appliance switching, fan controls, and vending machines.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: GL90340

Technical Specifications

• Contact Configuration: DPDT
• Coil Voltage: 24V
• Frequency Rating: 50/60 Hz
• Dimensions: 2.13 inches L x 1.88 inches W x 2.25 inches H
• Pickup Voltage: 19.2VAC
• Drop Down Voltage: 4.8VAC
• Power Ratings: 5VA/3VA
• Standards: UL Listed, CSA Certified
