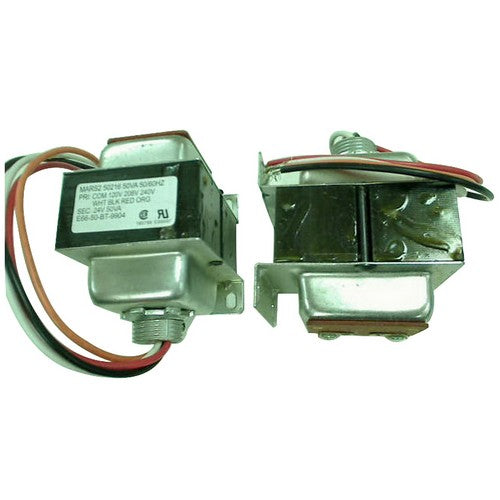

MARS Motors and Armatures 50314 Mars Power Transformer, 50VA, 120/208/240VAC Primary, 24VAC Secondary

Product Description

The MARS Motors and Armatures 50314 is a control transformer designed for efficient power supply in various systems. This model features a kva rating of fifty volt-amperes, with a primary voltage range of one hundred twenty to two hundred forty volts alternating current and a secondary voltage of twenty-four volts alternating current. It's suitable for applications in air conditioning, heating, or refrigeration systems.

• End bell type design for compact installation.
• Color coded leads for easy connections.
• Multi-mount capability for versatile installation options.

Product Highlights

This transformer meets UL Class 2 safety standards ensuring reliability in sensitive environments.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: TRF50

Technical Specifications

• Type: End Bell Type
• KVA Rating: 50VA
• Primary Voltage: 120/208 to 240VAC
• Secondary Voltage: 24VAC
• Frequency: 50/60 Hz
• Connection: Color Coded Leads, Screw Terminals on Secondary
• Mounting: Multi-Mount
• Enclosure: NEMA Class II
• Standards: UL Class 2 Recognized
• Applications: Provides power for control circuits in air conditioning, heating, or refrigeration systems
