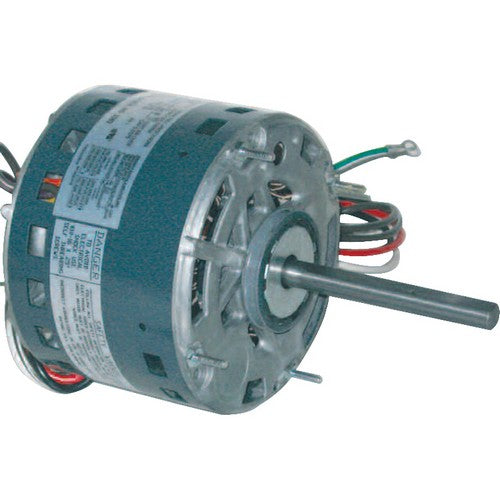

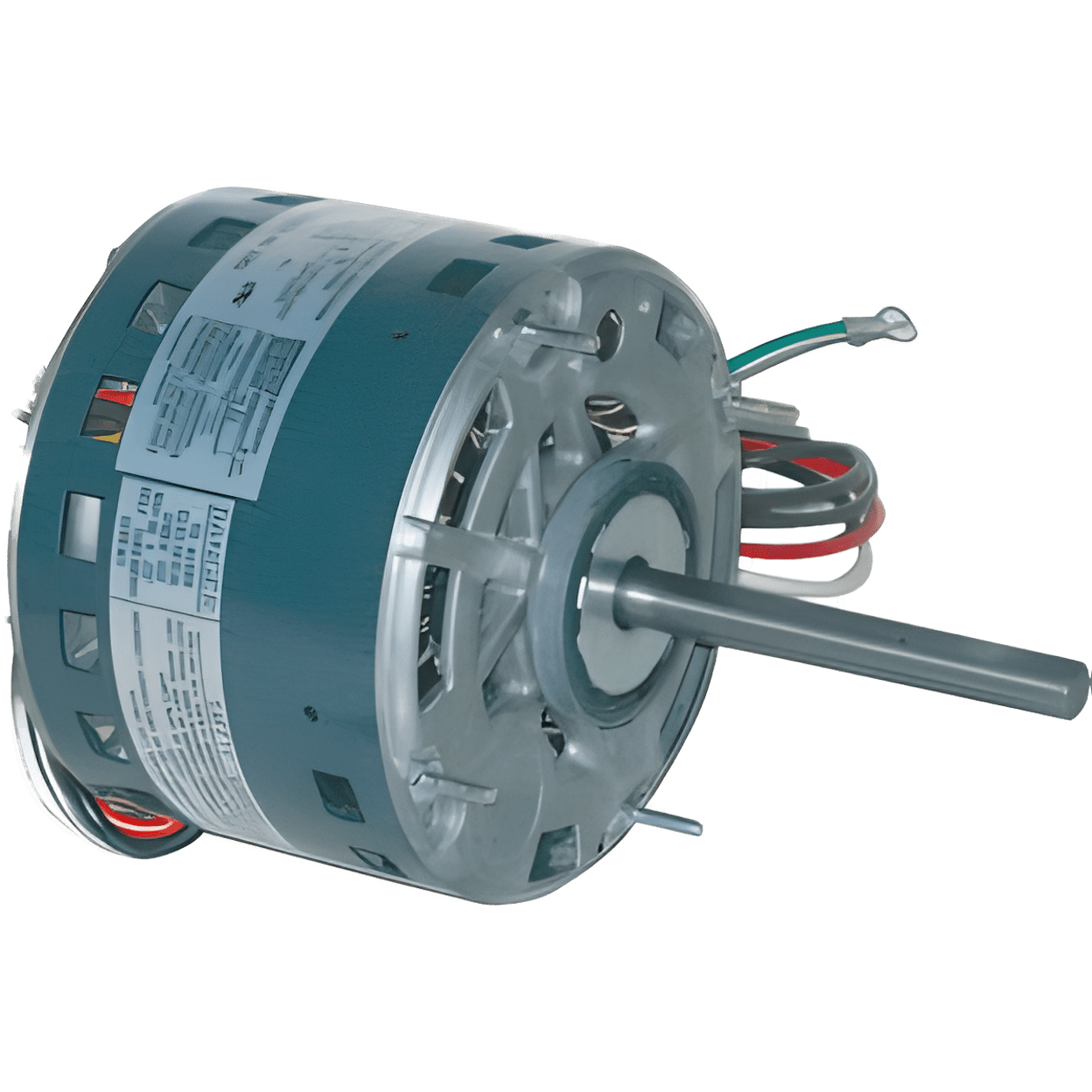

MARS Motors and Armatures 3587 Direct Drive 3-Speed Reversible Blower Motor 1/2 HP 115V

Product Description

The MARS Motors and Armatures 3587 is a reversible blower motor designed for HVAC applications. This motor operates at 1075 RPM and can provide a power output ranging from one-fourth to one-half horsepower, making it suitable for various ventilation and heating tasks.

• Direct drive 3-speed adjustment
• Voltage rating of 115V
• Reversible operation for versatile installation

Product Highlights

This motor is ideal for contractors and technicians who need reliable, efficient operation for air circulation in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: MARS Motors and Armatures
• Part Number: GEM3587

Technical Specifications

• RPM: 1075 rpm
• Type: Blower Motor
• Voltage Rating: 115V
• Horse Power: 1/2 HP
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 4 inch
• Mounting: Thru-Bolts
• Capacitor: 5 MFD/370V
• Frame: NEMA 48Y
• Bearing Type: Sleeve
• Amperage Rating: 9A
• Rotation: Reversible
