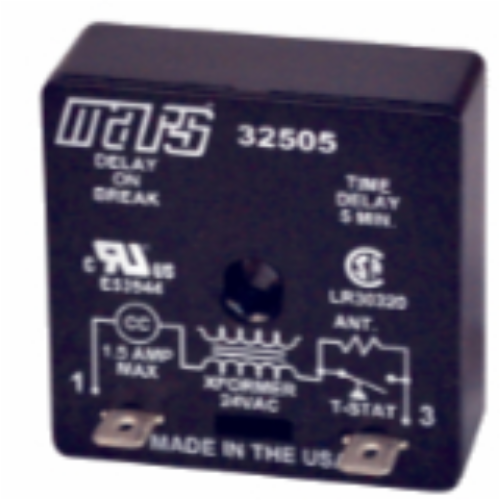

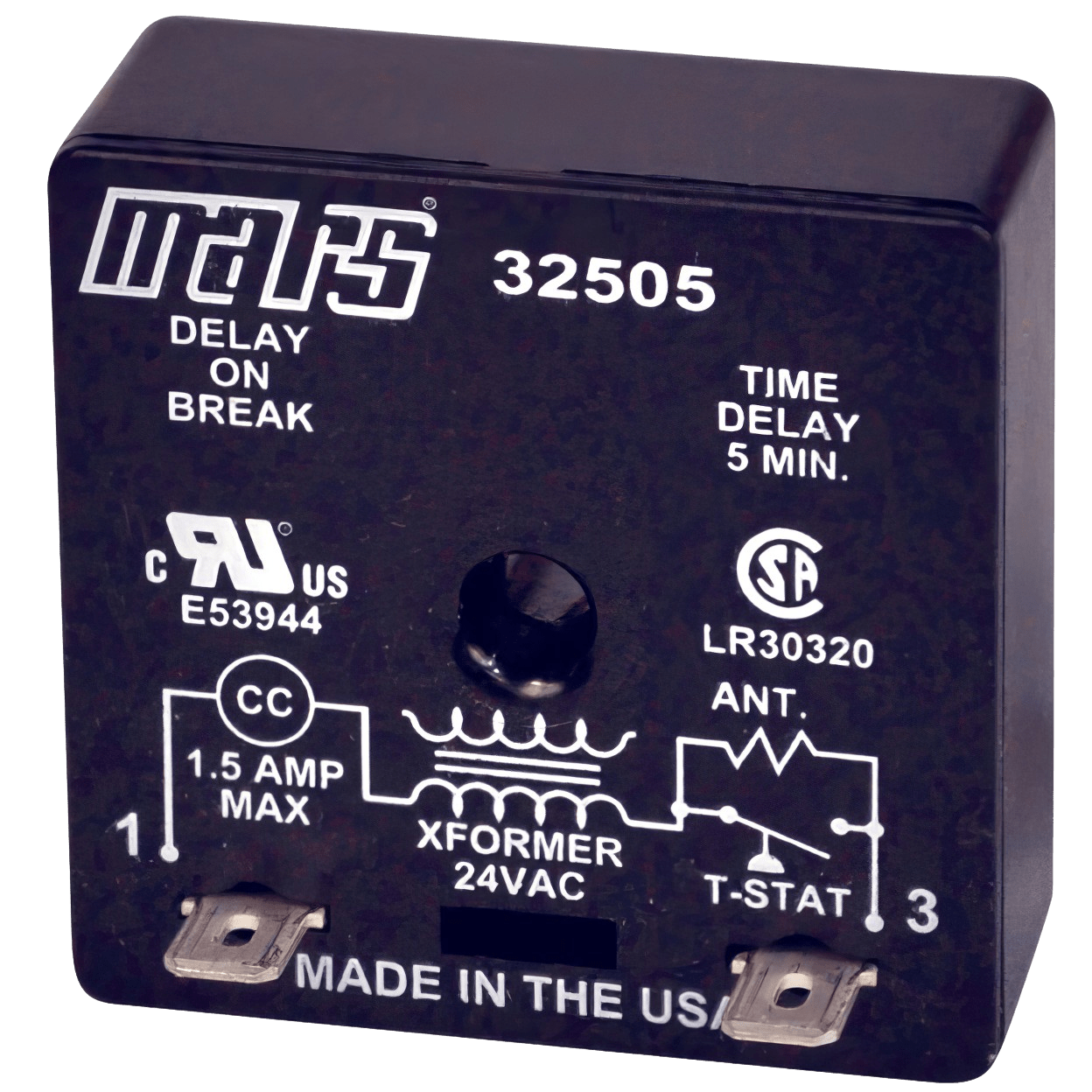

MARS Motors and Armatures 32505 Mars 24V Coil Delay on Break Fixed Adjustment Solid State Timer, 5 min

Product Description

The MARS Motors and Armatures 32505 is a solid state timer designed for HVAC systems. This timer features a delay on break function with a fixed adjustment time of five minutes. It operates on a coil voltage of twenty-four volts and is suitable for voltage ratings from eighteen to thirty volts alternating current. The timer effectively prevents short cycling in air conditioning and refrigeration systems, ensuring reliable operation.

• Coil voltage of 24V for effective HVAC control
• Fixed delay period of 5 minutes for reliable performance
• Designed to prevent short cycling of compressors

Product Highlights

This timer is essential for ensuring that compressors do not restart prematurely, which can cause damage and inefficiencies.

Product Information

Standard Information

• Type: Delay on Break Solid State Timer
• Coil Voltage: 24V

Technical Specifications

• Voltage Rating: 18 to 30VAC
• Ampere Rating: 1.5A
• Frequency Rating: 50/60 Hz
• Connection: 6 inch Wire Leads
• Drop Down Voltage: 3V at 1A
• Dimensions: 3.6 inch L x 2.2 inch W x 1.4 inch H
• Delay on Make: 5 min
