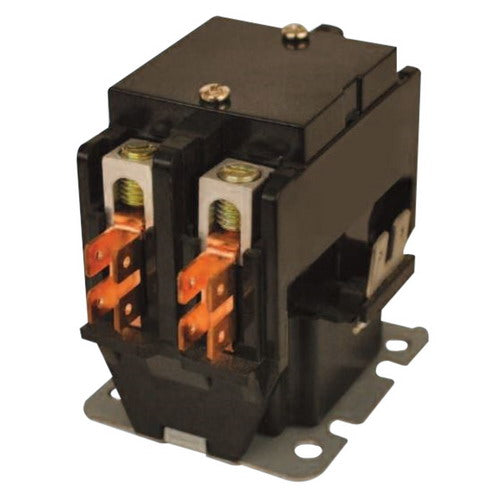

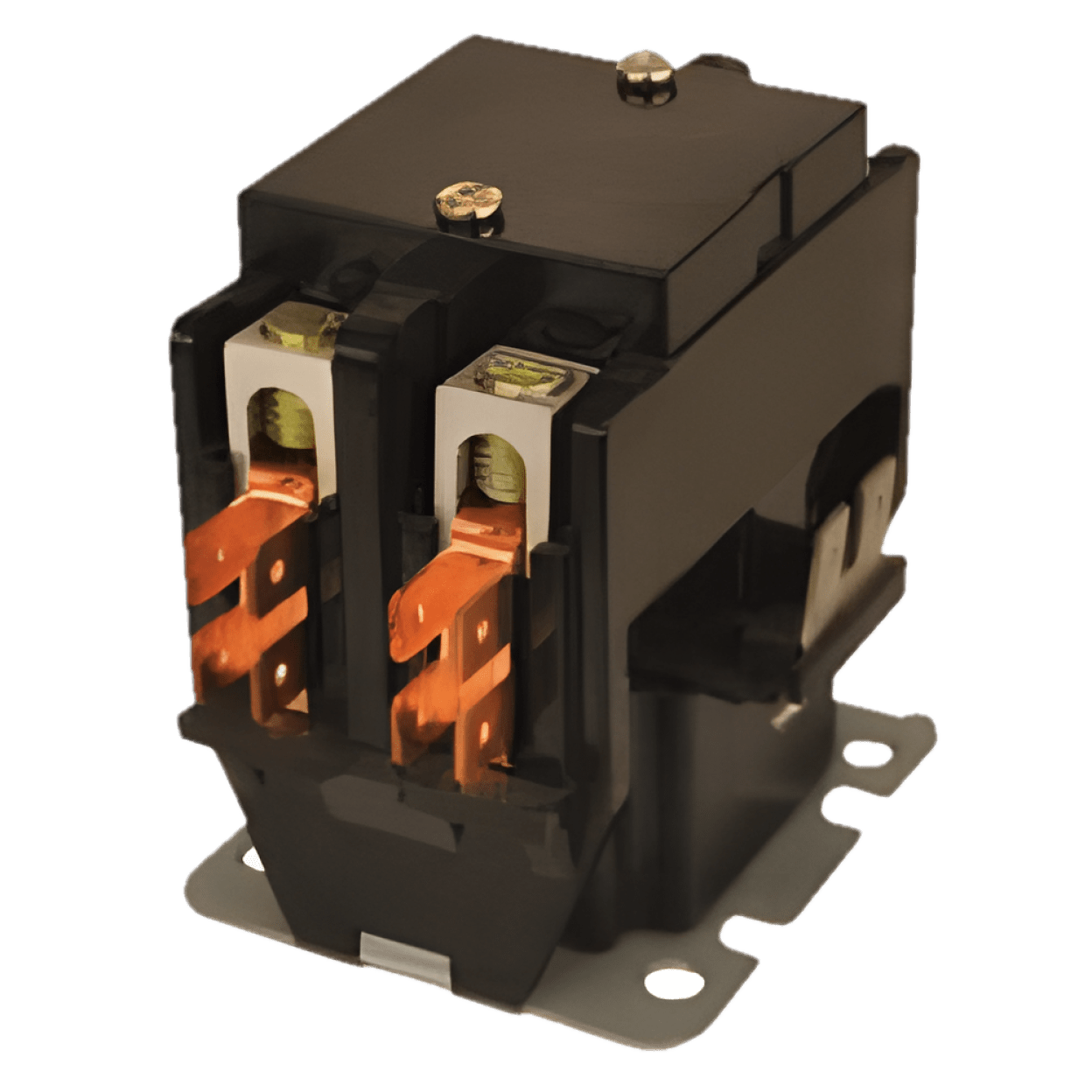

MARS Motors and Armatures 17316 Jard 30A 1.5-Pole 120V Coil Definite Purpose Contactor with Lugs

Product Description

The MARS Motors and Armatures 17316 is a definite purpose contactor designed for specific applications in HVAC systems. It operates at a coil voltage of 120V and is suitable for refrigeration, air conditioning, and electric heating systems.

• Universal mounting base for easy replacements
• Full load amps-inductive rated at 30A
• Constructed to meet UL and CSA standards

Product Highlights

This contactor can handle various power connections, making it versatile for different setups.

Product Information

Standard Information

• Type: Definite Purpose
• Number of Poles: 1.5

Technical Specifications

• Coil Voltage: 120V
• Frequency Rating: 50/60 Hz
• Dimensions: 3.29 inch W x 2.38 inch H x 2 inch D
• Full Load Amps-Resistive: 40A
• Applications: Refrigeration, Air Conditioning, Electric Heating Systems
• Standards/Approvals: UL Listed, CSA Certified
• QC Terminals Per Pole: 4
• Power Connection Options: Screws and quick connects or lugs and quick connects
