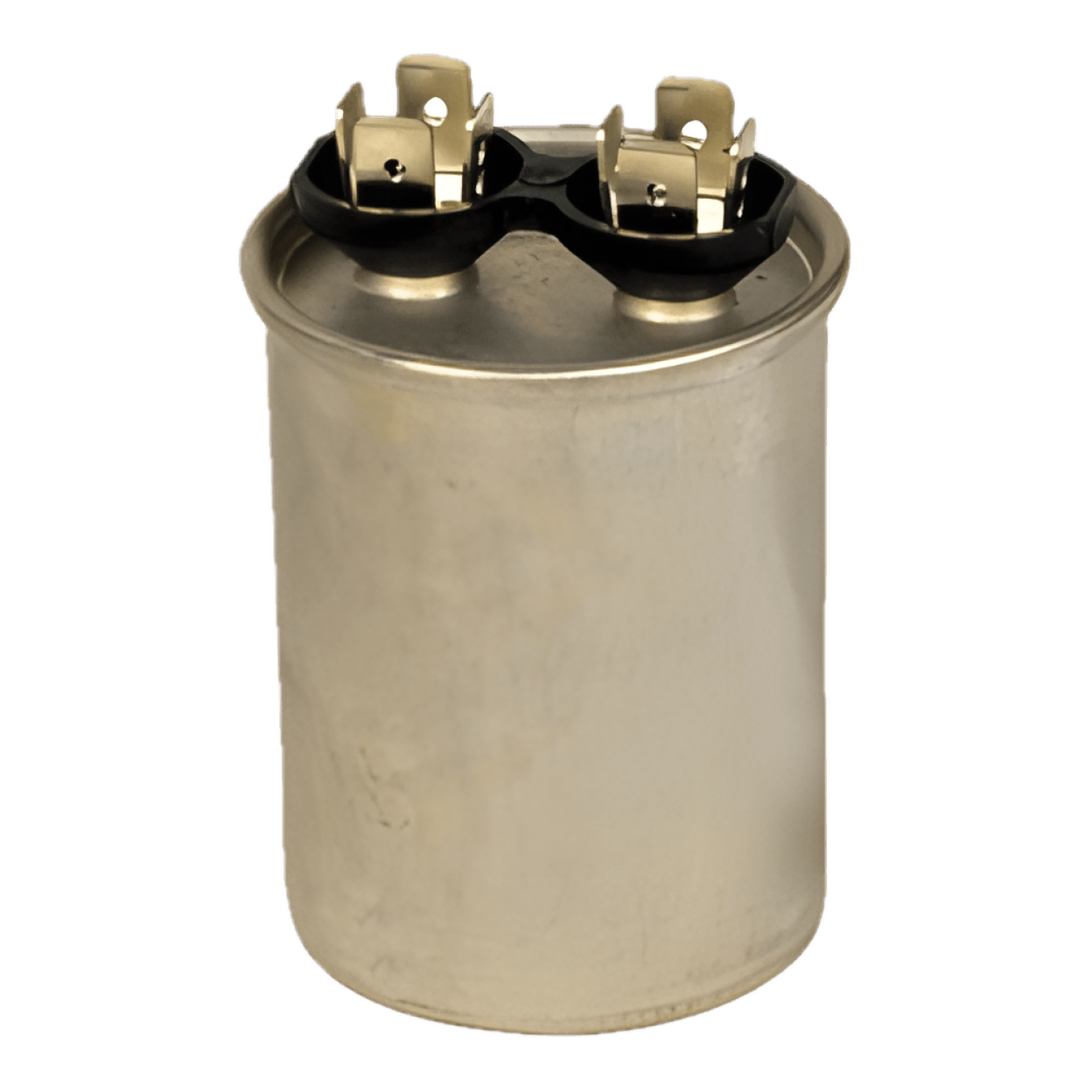

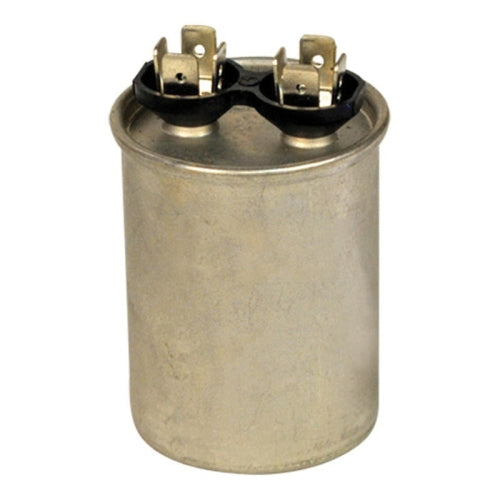

MARS Motors and Armatures 14259 Mars 80 MFD 440/370VAC Dual Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 14259 is a dual voltage motor run capacitor designed for HVAC applications. This capacitor has a capacitance of eighty MFD and operates at a voltage rating of 370/440 volts. It features a round shape with dimensions of two and a half inches in diameter and five and a quarter inches in height. The case is made of aluminum and is rated to operate in temperatures between negative forty to seventy degrees Celsius. This capacitor is suitable for use in various HVAC systems and is UL listed and CSA certified, ensuring compliance with industry standards.

• Capacitance: 80 MFD
• Voltage: 370/440V
• Temperature range: -40 to 70 Deg C

Product Highlights

This product is an OEM-grade component that has been tested and approved by major motor and compressor manufacturers.

Product Information

Standard Information

• Item Name: Motor Run Capacitor
• Type: Dual Voltage

Technical Specifications

• Shape: Round
• Capacitance Range: 80 MFD
• Voltage Rating: 370/440V
• Temperature Rating: -40 to 70 Deg C
• Material: Aluminum
• Height: 5.250 inches
• Outside Diameter: 2.500 inches
