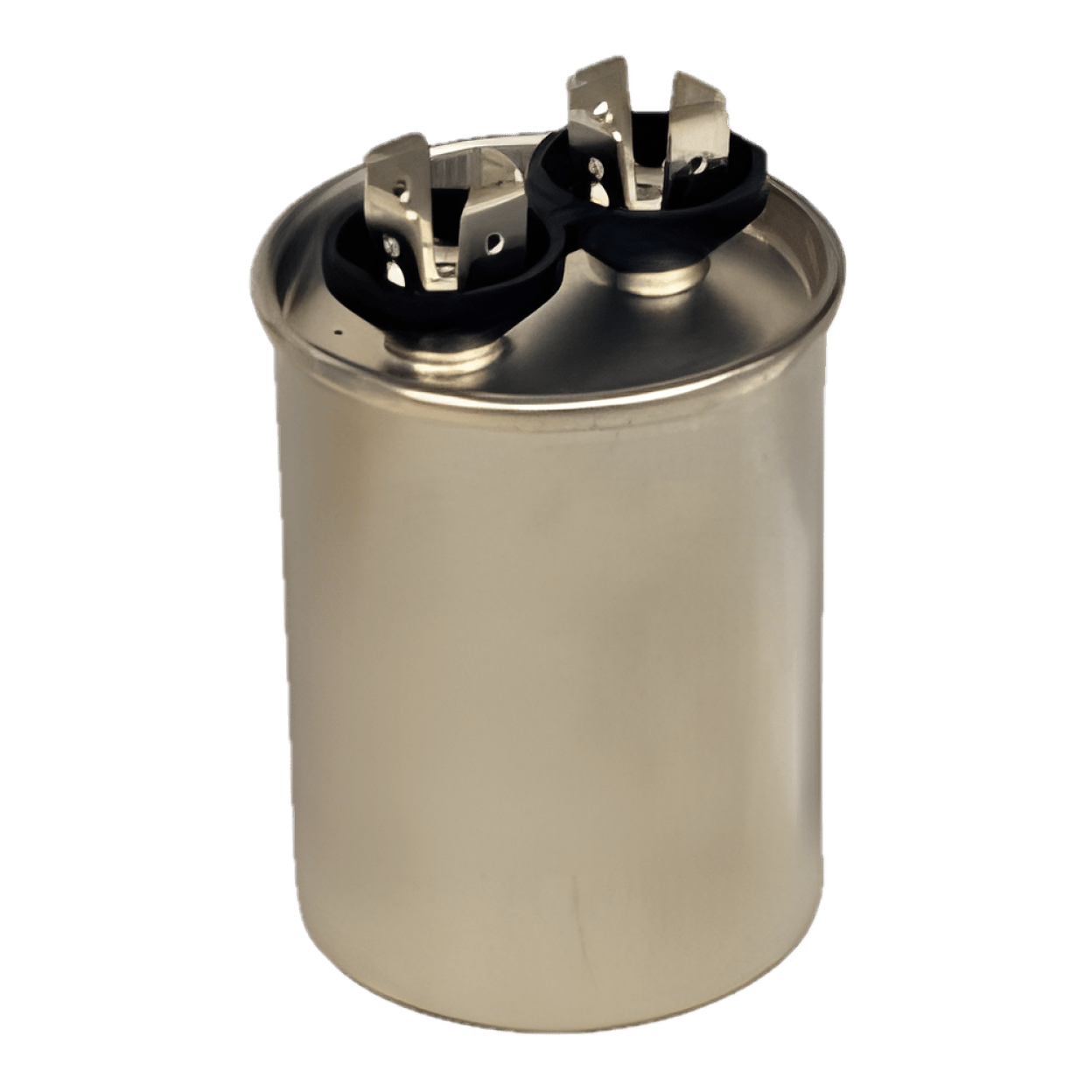

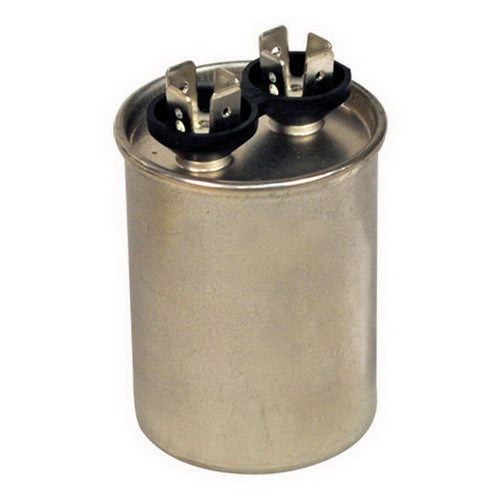

MARS Motors and Armatures 14257 Mars 80/5 MFD 440/370VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 14257 is a dual section round motor run capacitor designed for HVAC systems. This capacitor has a capacitance rating of eighty and five MFD, with a voltage rating of four hundred forty and three hundred seventy VAC. It operates efficiently at a frequency of fifty or sixty Hertz and has four terminals for easy connections.

• Tested and approved by major US motor and compressor companies
• UL Listed and CSA Certified
• Operational life of sixty thousand hours

Product Highlights

This capacitor is suitable for various HVAC applications and is made from durable aluminum material, ensuring long-lasting use.

Product Information

Standard Information

• Item Name: Motor Run Capacitor
• Type: Dual Section

Technical Specifications

• Voltage Rating: 440/370VAC
• Capacitance: 80/5 MFD
• Temperature Rating: -40 to 70 Deg C
• Overall Height: 5.250 inch
• Outside Diameter: 2.500 inch
• Standards/Approvals: UL Listed, CSA Certified
• Frequency Rating: 50/60 Hz
• Material: Aluminum
