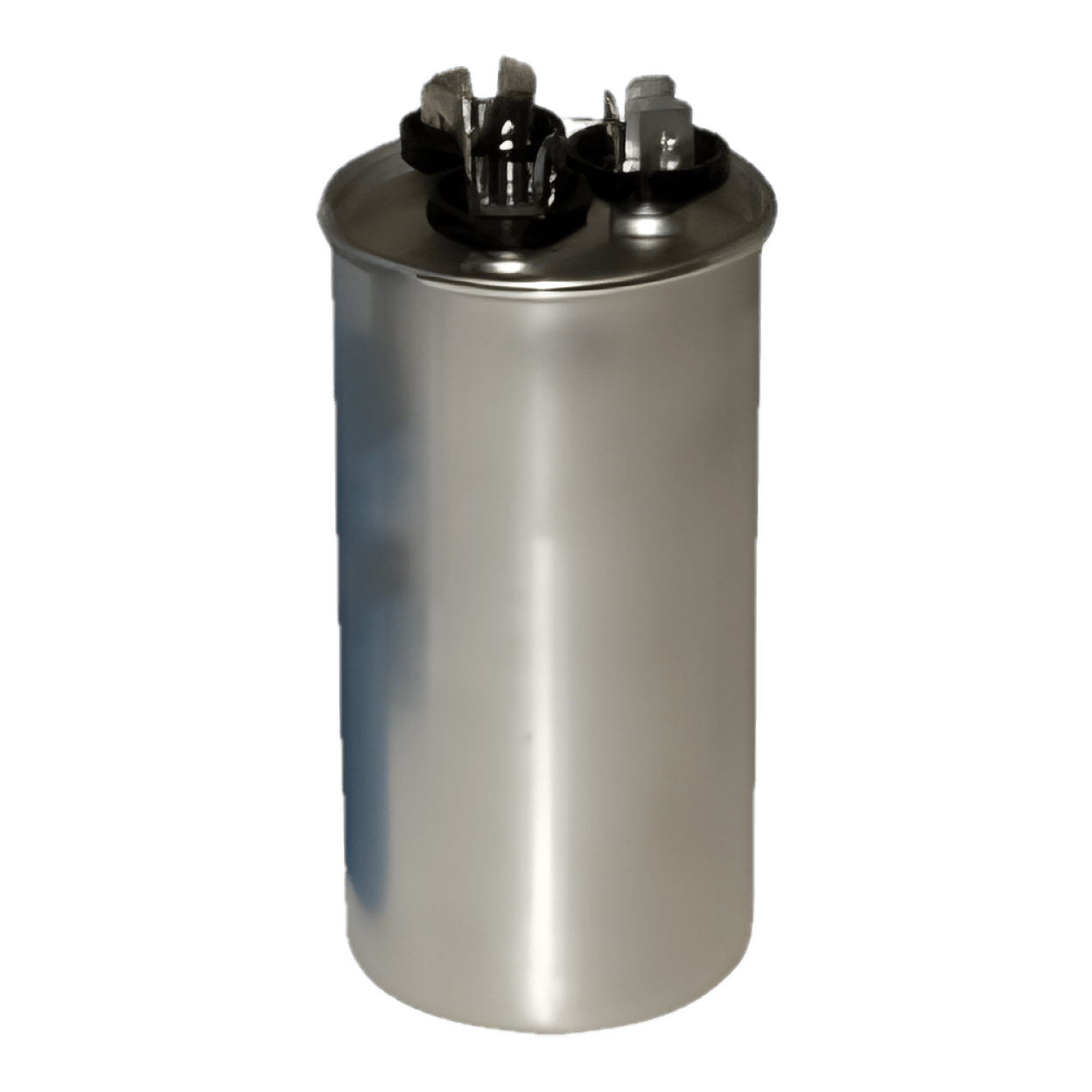

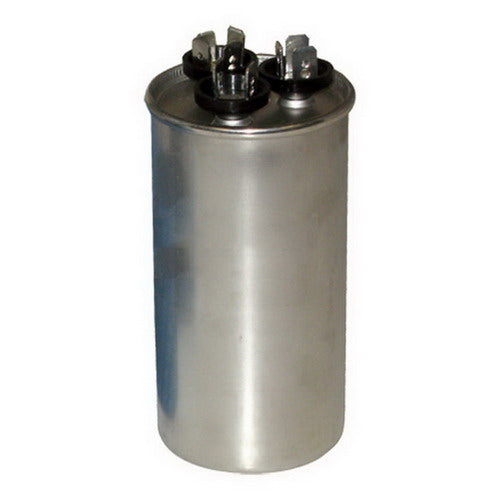

MARS Motors and Armatures 14117 Mars 80/10 MFD 440/370VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 14117 is a dual section round motor run capacitor designed for HVAC applications. The capacitor has a capacitance of eighty and ten MFD, along with a voltage rating of four hundred forty and three hundred seventy VAC. It operates effectively at frequencies of fifty to sixty Hertz. The dual section design features terminals numbered four, three, and two.

• Capacitance: 80/10 MFD
• Voltage rating: 440/370VAC
• Dimensions: 2.5 inches diameter by 5.25 inches height

Product Highlights

This capacitor is constructed from aluminum, has a temperature rating of negative forty to seventy degrees Celsius, and offers an operational life of sixty thousand hours. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 14117

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 80/10 MFD
• Voltage Rating: 440/370VAC
• Temperature Rating: -40 to 70 Deg C
• Operational Life: 60,000 hr
• Standards/Approvals: UL Listed and CSA Certified
• Dimensions: 2.5 inches diameter x 5.25 inches height
