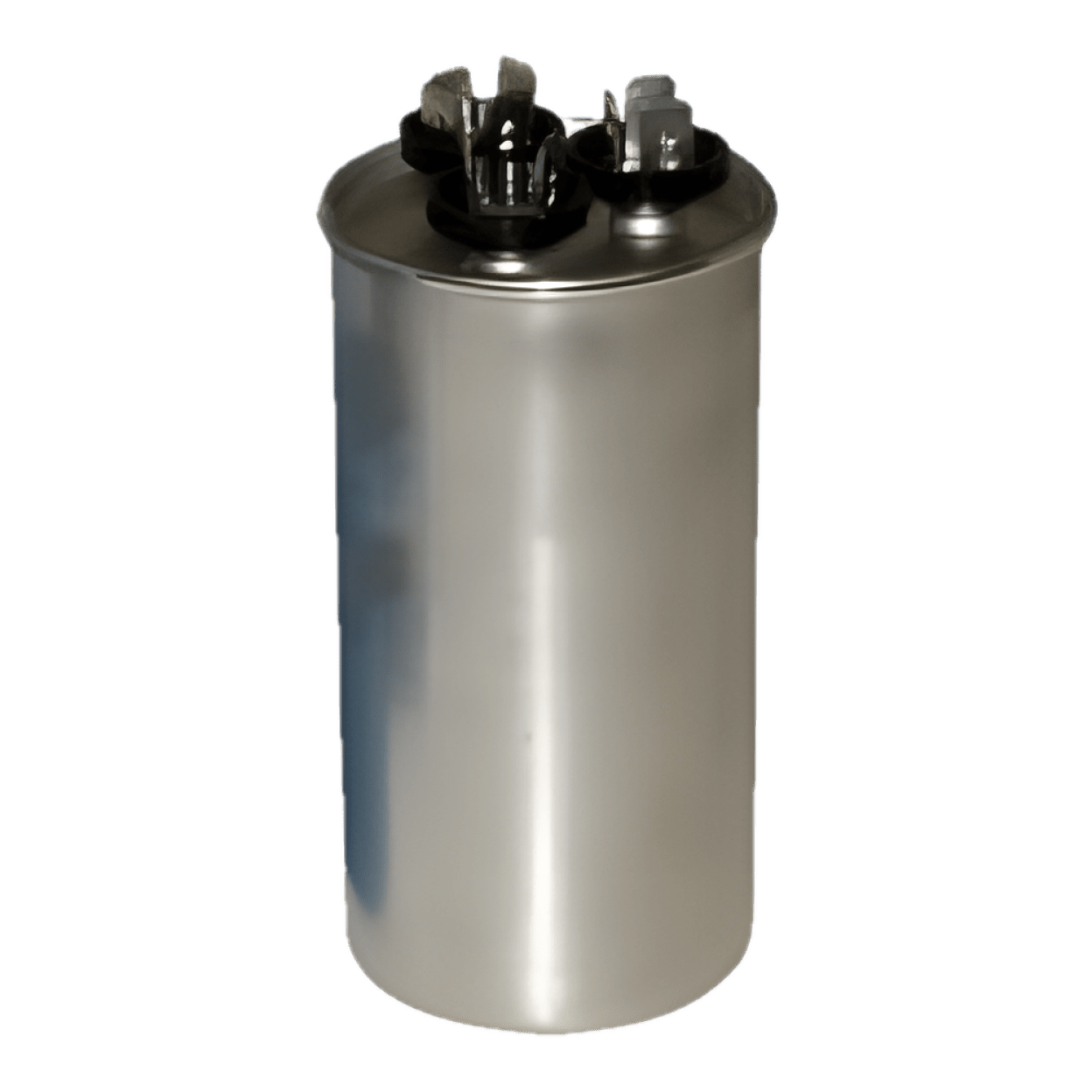

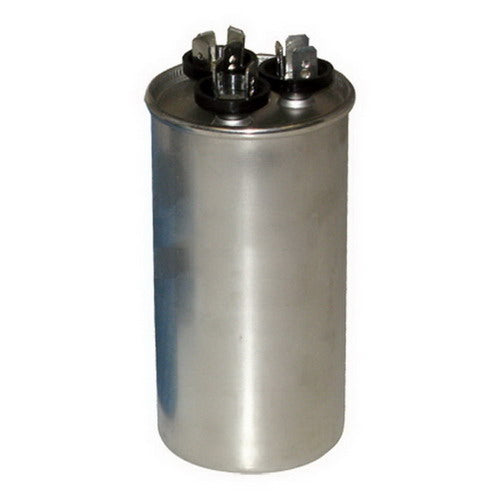

MARS Motors and Armatures 12978 Jard 40/3 MFD 440VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 12978 is a dual section round motor run capacitor designed for HVAC applications. This capacitor has a capacitance of forty and three microfarads at a voltage rating of four hundred forty VAC. It operates effectively at a frequency of fifty to sixty hertz. Installation is simplified with three terminals and one physical interrupter for safety.

• Durable aluminum construction
• Temperature range from negative forty to seventy degrees Celsius
• UL Listed and CSA Certified for reliability

Product Highlights

This motor run capacitor is ideal for two microfarad applications but can be adapted through various parallel connections. It is designed for general replacements.

Product Information

Standard Information

• Item Name: Motor Run Capacitor
• Type: Dual Section

Technical Specifications

• Shape: Round
• Capacitance: 40/3 MFD
• Voltage Rating: 440VAC
• Frequency Rating: 50/60 Hz
• Terminal: 4, 3, 2
• Outside Diameter: 2 inch
• Overall Height: 4.375 inch
• Material: Aluminum
• Temperature Rating: -40 to 70 Deg C
• Standards/Approvals: UL Listed and CSA Certified
