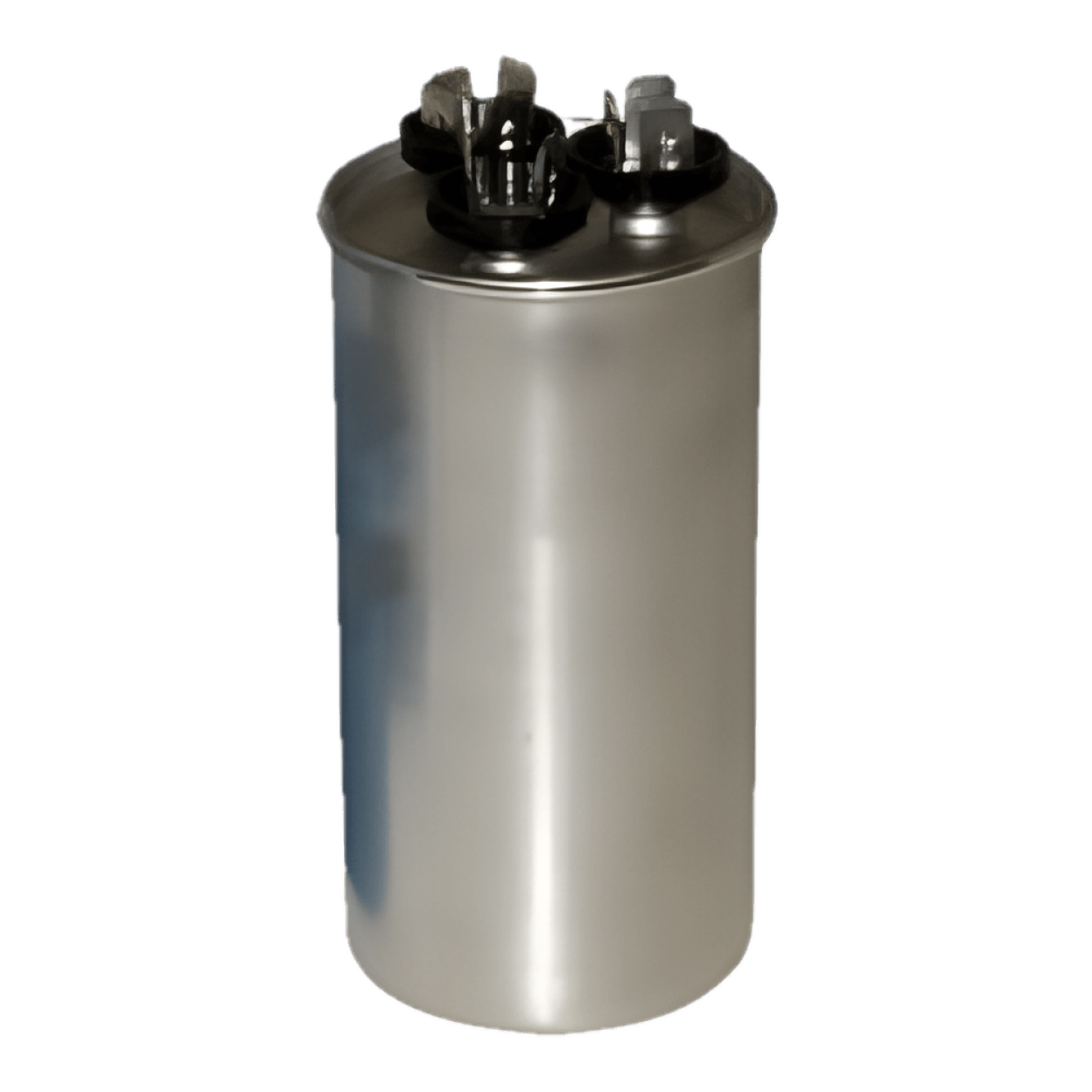

MARS Motors and Armatures 12895 Jard 60/5 MFD 370VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 12895 is a Jard 60/5 MFD 370VAC dual section round motor run capacitor. This capacitor is designed for use in HVAC systems to provide reliable operation and performance.

• Capacitance: 60/5 microfarads
• Voltage Rating: 370VAC
• Temperature Rating: -40 to 70 degrees Celsius

Product Highlights

This dual section capacitor is primarily used for two microfarad applications. It can be configured in various ways to achieve different microfarad ratings. The MARS capacitor is UL Listed and CSA Certified, making it a safe and dependable choice for HVAC professionals.

Product Information

Standard Information

• Part Number: 12895
• Brand: MARS Motors and Armatures

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 60/5 MFD
• Voltage Rating: 370VAC
• Frequency Rating: 50/60 Hz
• Terminal: 4, 3, 2
• Dimensions: 2 inch diameter by 4.375 inch height
• Material: Aluminum
• Specifications Approval: UL Listed and CSA Certified
• Temperature Rating: -40 to 70 degrees Celsius
