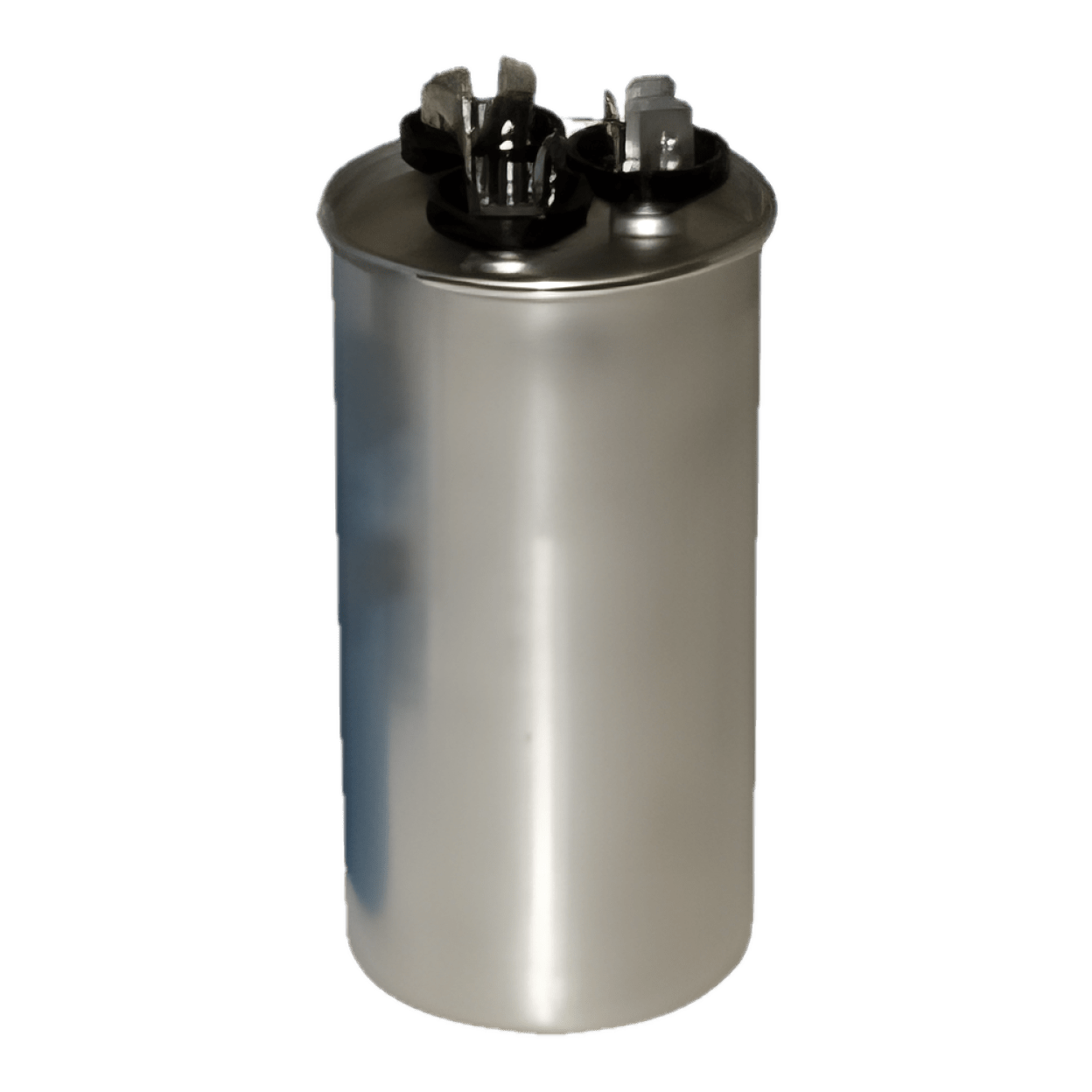

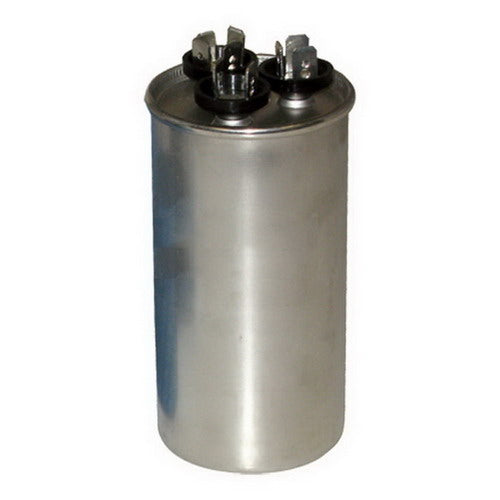

MARS Motors and Armatures 12766 Jard 35/5 MFD 370VAC Dual Section Round Motor Run Capacitor

Product Description

MARS Motors and Armatures 12766 is a dual section round motor run capacitor designed for HVAC applications. This capacitor operates at a voltage rating of 370VAC and features a capacitance of 35/5 microfarads, making it suitable for various motor applications. The product has a temperature rating that allows it to function effectively between -40 to 70 degrees Celsius.

• Material: Aluminum
• UL Listed and CSA Certified
• Multiple terminal sizes for easy installation

Product Highlights

This motor run capacitor is ideal for general replacements in HVAC systems. It is a non-PCB capacitor ensuring safety and reliability in applications.

Product Information

Standard Information

• Part Number: MARS12766
• Minimum Order Quantity: 1

Technical Specifications

• Item Name: Motor Run Capacitor
• Type: Dual Section
• Shape: Round
• Capacitance: 35/5 MFD
• Voltage Rating: 370VAC
• Frequency Rating: 50/60 Hz
• Terminal: 4, 3, 2
• Dimensions: 2 inches diameter x 3.625 inches height
• Material: Aluminum
• Temperature Rating: -40 to 70 degrees Celsius
• Standards/Approvals: UL Listed and CSA Certified
