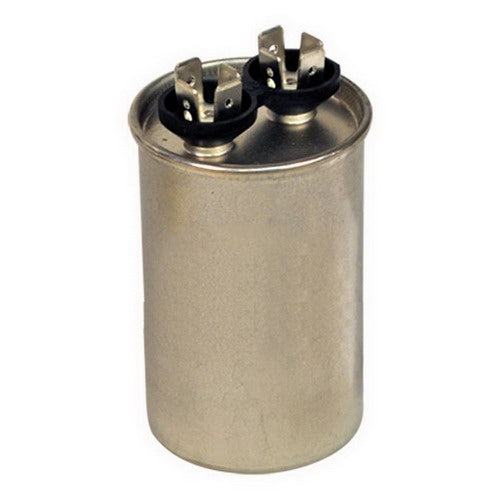

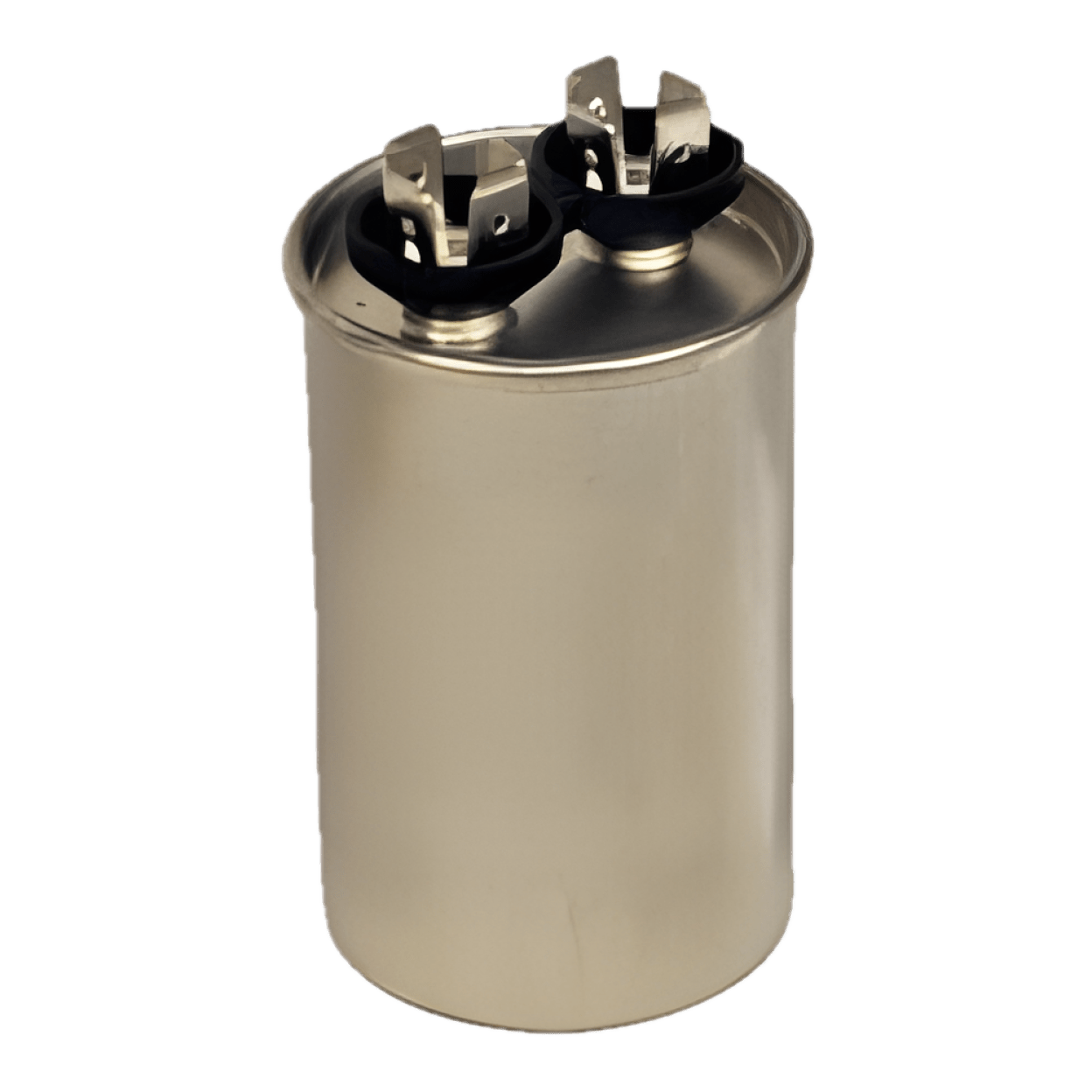

MARS Motors and Armatures 12751 Jard 50 MFD 440VAC Single Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 12751 is a round motor run capacitor designed for HVAC applications. It has a capacitance of fifty microfarads and a voltage rating of four hundred forty volts AC. This single-section capacitor is suitable for 50/60 Hz frequency. The dimensions are two inches in diameter and four point twenty-five inches in height. The product is made from aluminum, ensuring durability and efficiency. It also adheres to UL and CSA specifications.

• High capacitance of 50 MFD
• Voltage rating of 440VAC
• UL Listed and CSA Certified for safety

Product Highlights

Ideal for replacing damaged or non-working motor run capacitors in HVAC systems, ensuring reliable performance and efficiency.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 12751

Technical Specifications

• Capacitance: 50 MFD
• Voltage Rating: 440VAC
• Frequency Rating: 50/60 Hz
• Type: Single Section
• Shape: Round
• Dimensions: 2 inch diameter x 4.25 inch height
• Material: Aluminum
• Temperature Rating: -40 to 70 Deg C
• Standards/Approvals: UL Listed and CSA Certified
