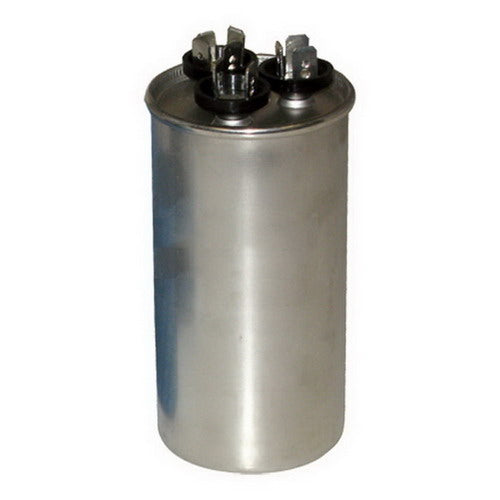

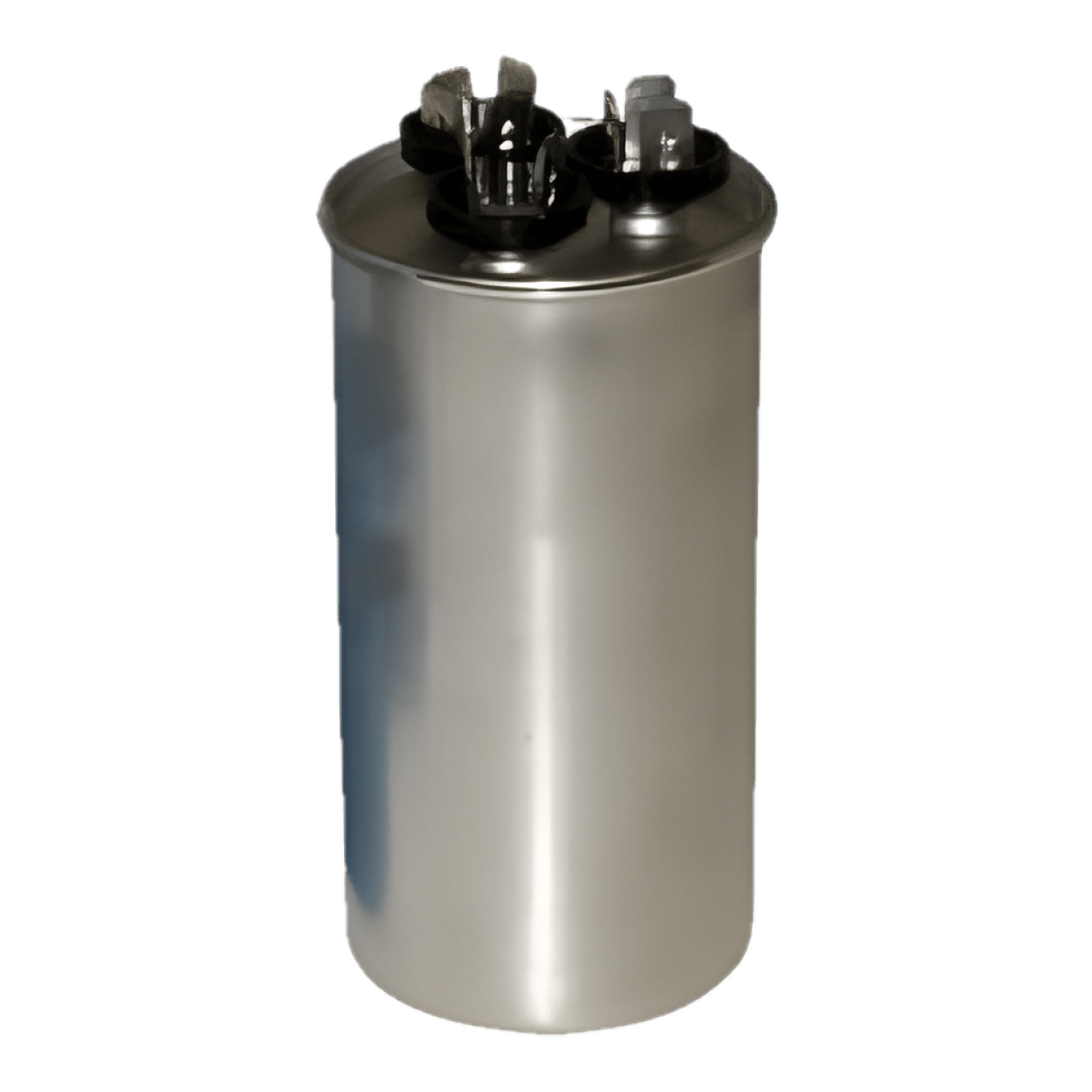

MARS Motors and Armatures 12747 Jard 45/3 MFD 370VAC Dual Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 12747 is a reliable dual section motor run capacitor designed for HVAC applications. This component features a capacitance rating of 45/3 MFD and operates at a voltage of 370VAC. It serves crucial roles in enhancing the efficiency of motor operations.

• Capacitance of 45/3 MFD for optimal performance
• Temperature range of -40 to 70 degrees Celsius
• UL listed and CSA certified for safety standards

Product Highlights

This dual section run capacitor is essential for applications that require two microfarad ratings. Its aluminum casing provides durability and reliability, making it suitable for various replacement needs.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 12747

Technical Specifications

• Item Name: Motor Run Capacitor
• Type: Dual Section
• Shape: Round
• Voltage Rating: 370VAC
• Capacitance: 45/3 MFD
• Temperature Rating: -40 to 70 degrees Celsius
• Terminal: 4, 3, 2
• Overall Height: 3.625 inches
• Outside Diameter: 2 inches
• Standards/Approvals: UL Listed, CSA Certified
