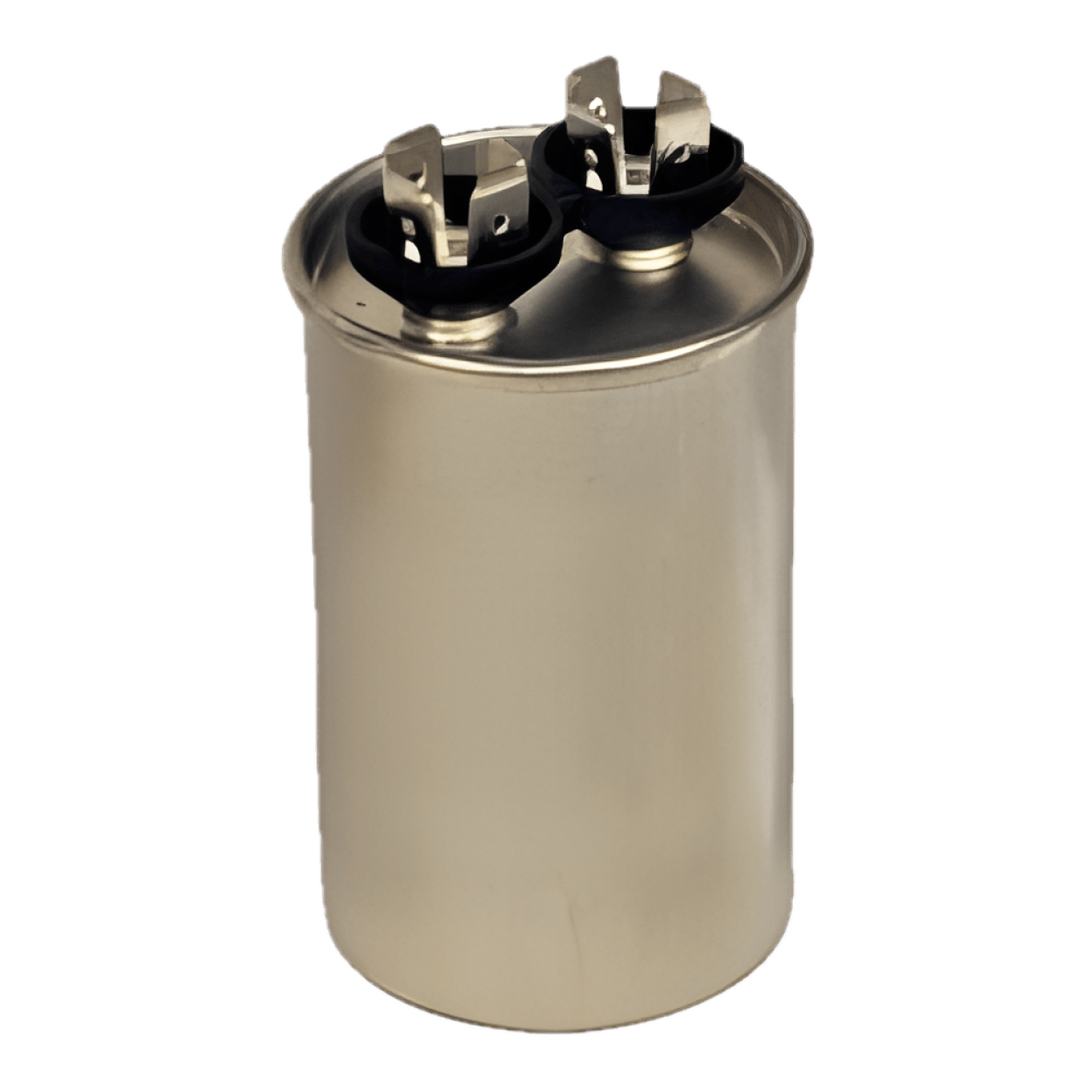

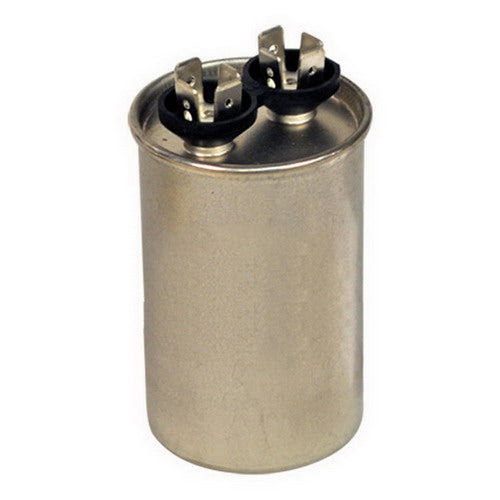

MARS Motors and Armatures 12737 Jard 20 MFD 440VAC Single Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 12737 is a Jard twenty microfarad capacitor designed for motor run applications. This single-section round capacitor operates at four hundred forty volts AC and is suitable for use in both 50 and 60 hertz frequency environments. Its compact design makes it ideal for a variety of HVAC systems.

• Capacitance: twenty microfarads
• Voltage Rating: four hundred forty VAC
• UL Listed and CSA Certified for safety

Product Highlights

The capacitor is perfect for general replacements in HVAC systems, ensuring reliable performance and compliance with industry standards.

Product Information

Standard Information

• Type: Single Section
• Shape: Round

Technical Specifications

• Capacitance: twenty microfarads
• Voltage Rating: four hundred forty VAC
• Temperature Rating: minus forty to seventy degrees Celsius
• Material: Aluminum
• Dimensions: one point seventy-five inch diameter x three point one two five inch height
• Terminal Count: Four
• Frequency Rating: fifty to sixty Hz
• Standards/Approvals: UL Listed and CSA Certified
