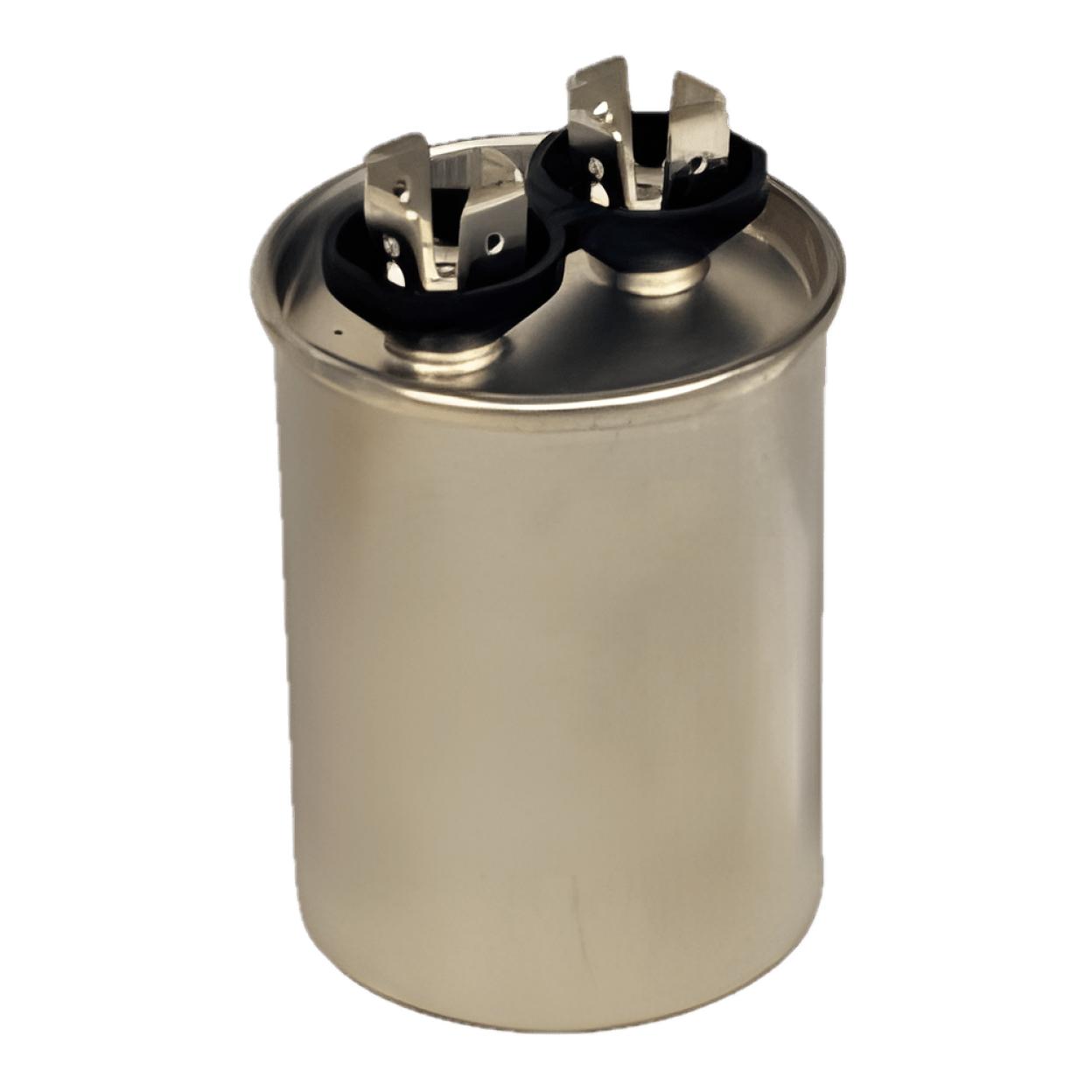

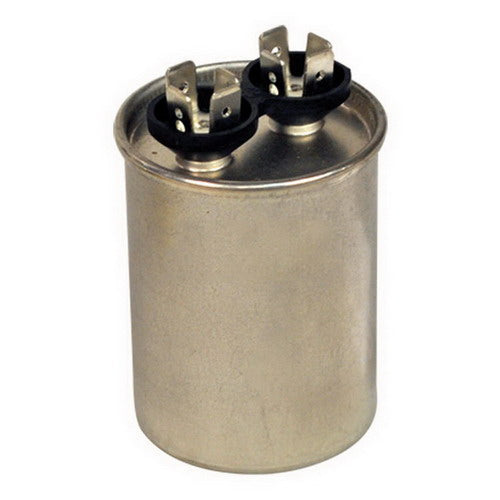

MARS Motors and Armatures 12734 Jard 15 MFD 440VAC Single Section Round Motor Run Capacitor

Product Description

The MARS Motors and Armatures 12734 is a motor run capacitor designed for various HVAC applications. This single section round capacitor operates at a voltage rating of four hundred forty volts alternating current (VAC) and has a capacitance of fifteen microfarads (MFD). The capacitor is built from durable aluminum, suitable for environments with temperatures ranging from -40 to 70 degrees Celsius.

• Capacitance: 15 MFD
• Voltage Rating: 440VAC
• UL Listed and CSA Certified

Product Highlights

This capacitor is an ideal choice for HVAC system maintenance and repairs. It serves as a reliable replacement for old or failing capacitors in air conditioning units and other motor applications.

Product Information

Standard Information

• Item Name: Motor Run Capacitor
• Material: Aluminum

Technical Specifications

• Type: Single Section
• Shape: Round
• Frequency Rating: 50/60 Hz
• Terminal: 4
• Outside Diameter: 1.750 inch
• Overall Height: 2.875 inch
• Temperature Rating: -40 to 70 Deg C
• Standards/Approvals: UL Listed and CSA Certified
