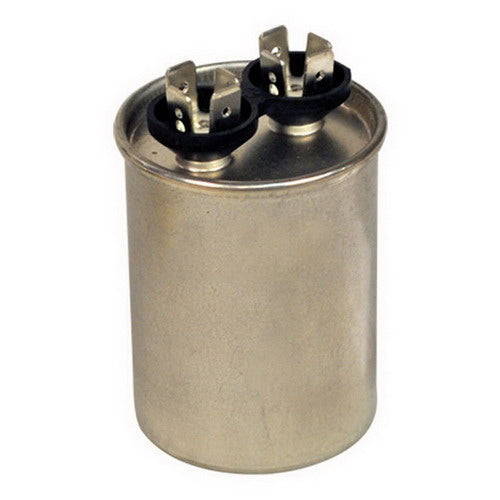

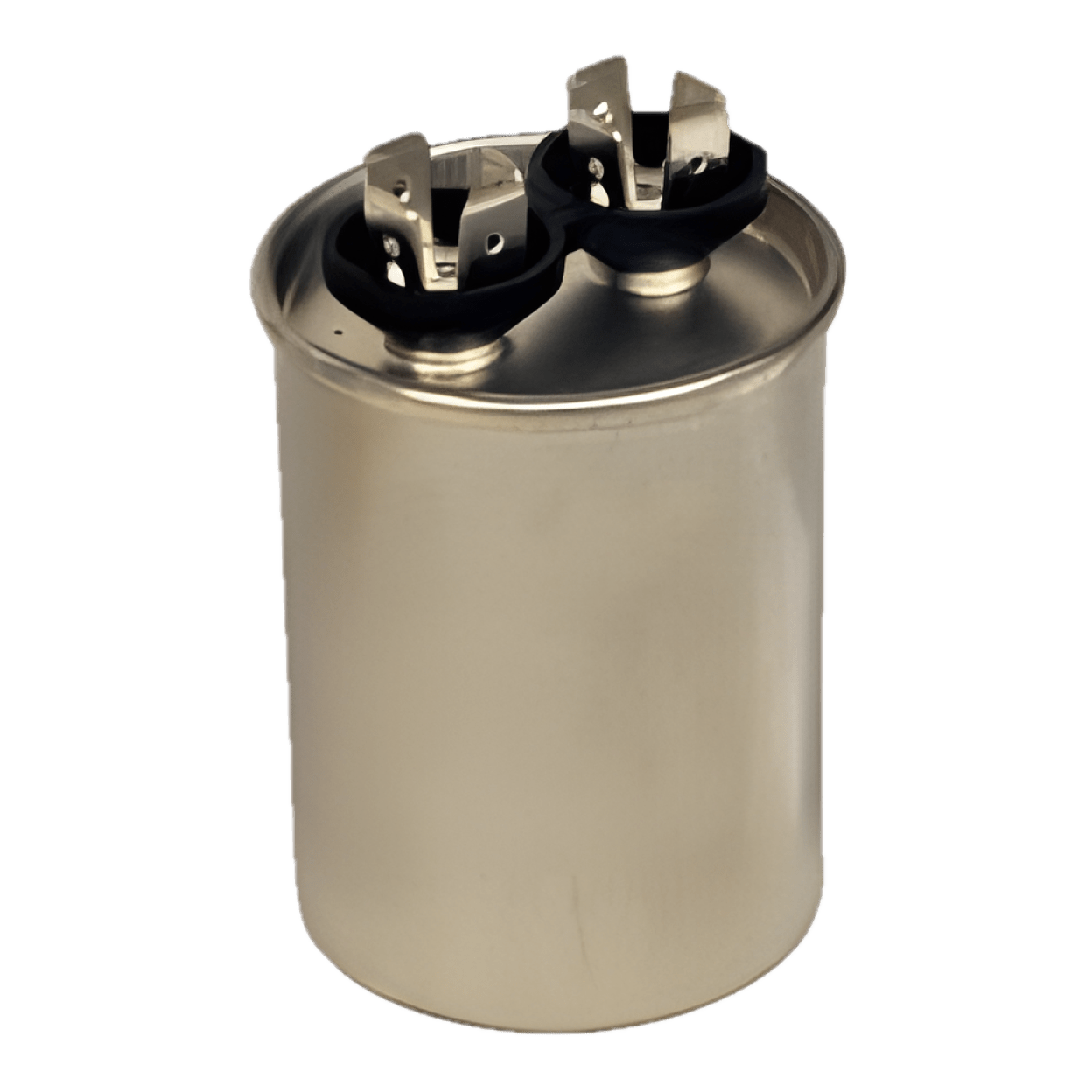

MARS Motors and Armatures 12732 Jard 10 MFD 440VAC Single Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 12732 is a motor run capacitor designed for reliable performance in HVAC applications. This component is ideal for electric motors requiring a capacitance of ten microfarads and operates effectively at a voltage rating of four hundred forty volts AC.

• Capacitance value: 10 MFD
• Voltage rating: 440VAC
• Temperature rating: -40 to 70 degrees Celsius

Product Highlights

This durable capacitor features a round shape and single section construction, making it suitable for a range of general replacement needs in HVAC systems.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 12732

Technical Specifications

• Capacitance: 10 MFD
• Voltage Rating: 440VAC
• Frequency Rating: 50/60 Hz
• Terminal Configuration: 4 terminals
• Dimensions: 2 inch diameter x 2.5 inch height
• Material: Aluminum
• Temperature Rating: -40 to 70 degrees Celsius
• Standards/Approvals: UL Listed and CSA Certified
