MARS Motors and Armatures 12730 Jard 35/3 MFD 370VAC Dual Section Round Motor Run Capacitor

Product Description

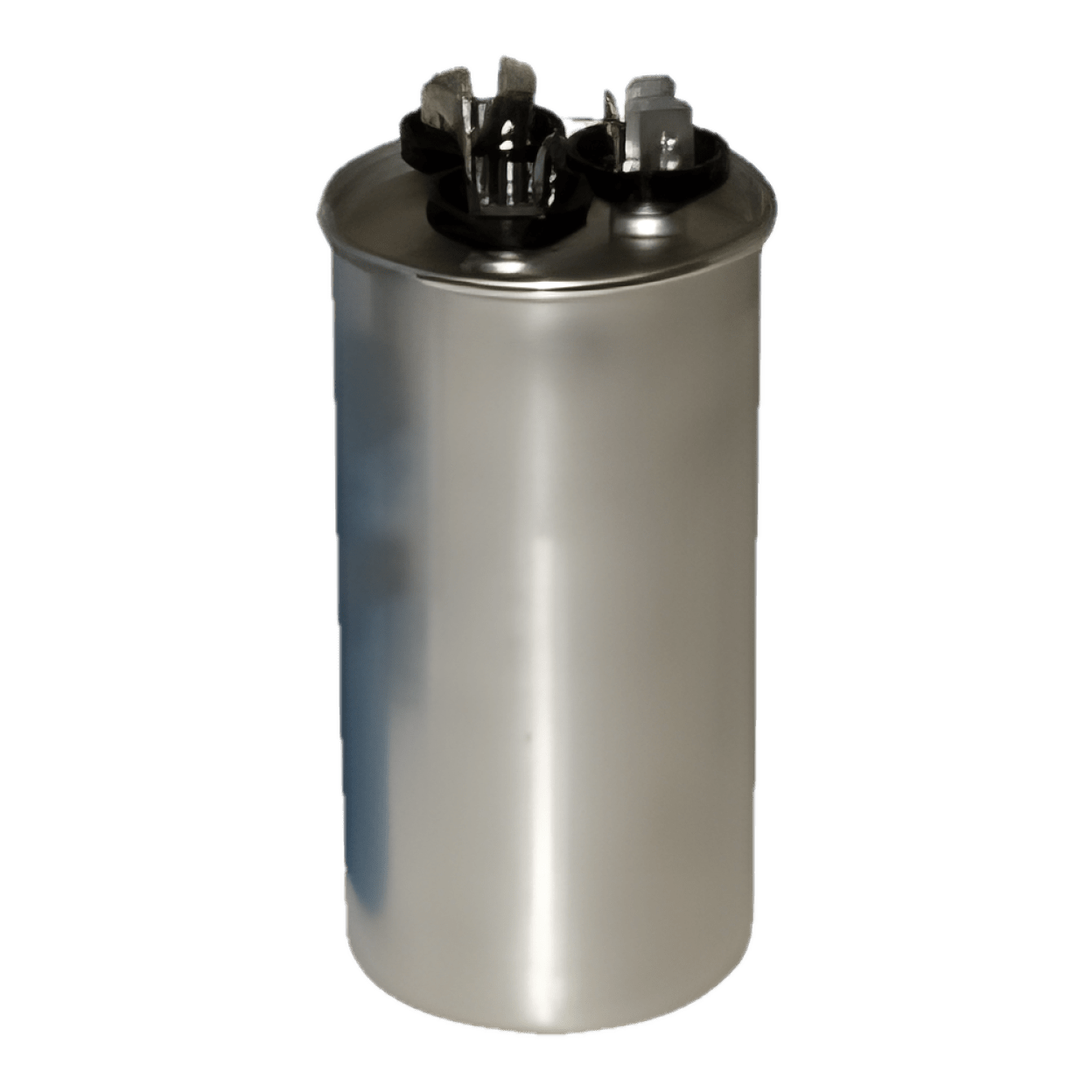

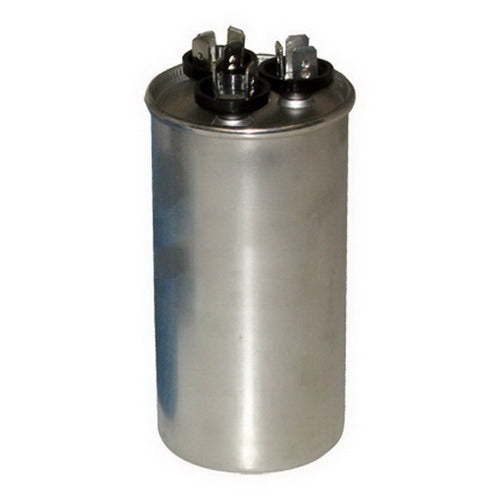

The MARS Motors and Armatures 12730 is a dual section round motor run capacitor, ideal for HVAC applications. This capacitor has a capacitance of thirty-five/three microfarads and operates at a voltage rating of three hundred seventy VAC. It is designed for both 50 and 60 Hz frequency ratings with terminals labeled four, three, and two. The capacitor features a compact size with a diameter of two inches and a height of three point six two five inches, making it suitable for various installation spaces.

• Dual section design allows for flexible application in HVAC systems.
• Non-PCB capacitors ensure safety and compliance.
• Meets UL Listed and CSA Certified standards for reliability.

Product Highlights

This product is essential for efficient operation in HVAC systems, providing reliable performance under different conditions.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: mars12730

Technical Specifications

• Type: Dual Section
• Shape: Round
• Capacitance: 35/3 MFD
• Voltage Rating: 370VAC
• Frequency Rating: 50/60 Hz
• Terminal Configuration: 4, 3, 2
• Diameter: 2 inch
• Height: 3.625 inch
• Material: Aluminum
• Temperature Rating: -40 to 70 Deg C
• Standards/Approvals: UL Listed and CSA Certified
