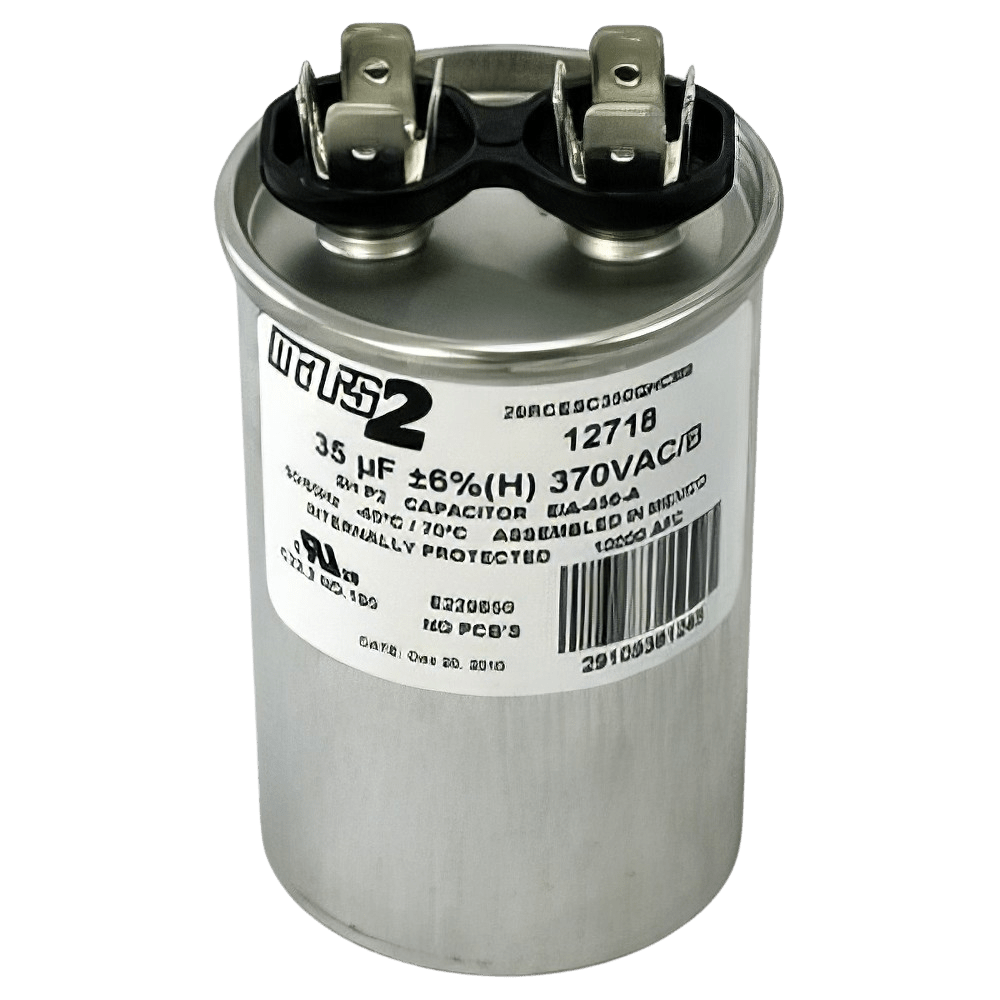

MARS Motors and Armatures 12718 Mars 35MFD 370VAC Single Section Round Motor Run Capacitor, Aluminum

Product Description

The MARS Motors and Armatures 12718 is a motor run capacitor designed for efficient operation. This single section capacitor has a capacitance range of thirty-five microfarads and a voltage rating of three hundred seventy volts AC. It features four terminals and is constructed in a round shape using aluminum for durability. The temperature range for this capacitor is from negative forty to seventy degrees Celsius. It meets standards set by UL and CSA.

• Capacitance Range: 35 MFD
• Voltage Rating: 370VAC
• Temperature Rating: -40 to 70 Deg C

Product Highlights

This capacitor serves as a reliable component for HVAC systems, ensuring effective motor function and energy efficiency.

Product Information

Standard Information

• Type: Single
• Shape: Round

Technical Specifications

• Capacitance Range: 35 MFD
• Voltage Rating: 370VAC
• Frequency Rating: 50/60 Hz
• Outside Diameter: 1.750 inch
• Overall Height: 3.250 inch
• Material: Aluminum
• Temperature Rating: -40 to 70 Deg C
• Terminal: 4
