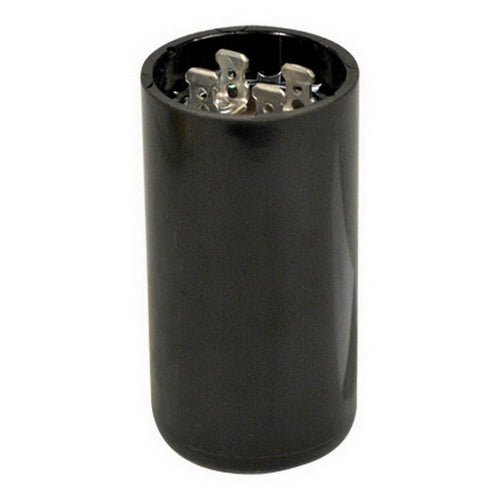

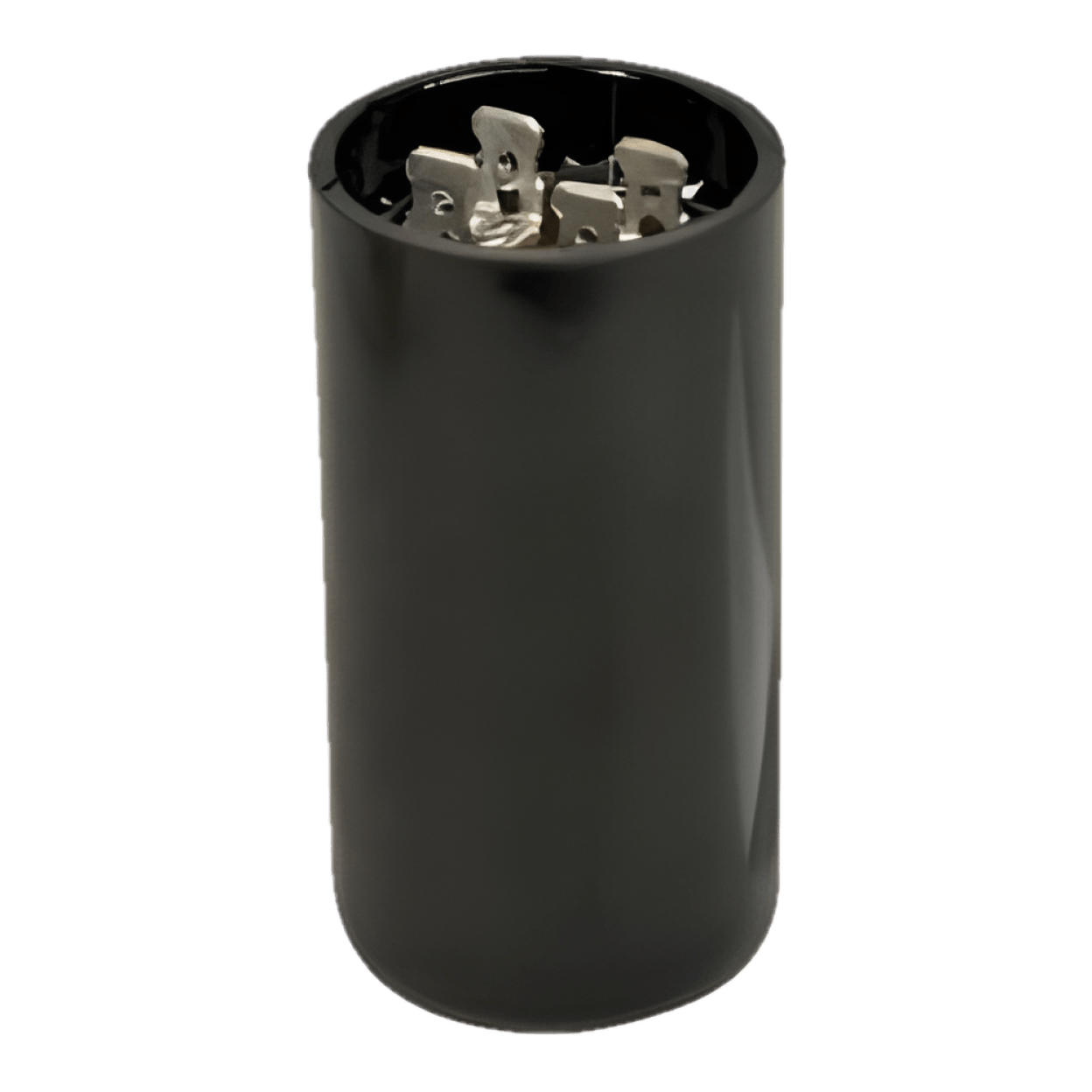

MARS Motors and Armatures 11992 Jard 135 to 162 MFD 330VAC Round Motor Start Capacitor, Phenolic

Product Description

The MARS Motors and Armatures 11992 is a round motor start capacitor designed for reliable performance. This device operates at a capacitance range of one hundred thirty-five to one hundred sixty-two microfarads and supports a voltage rating of three hundred thirty volts alternating current. Its compact design makes it suitable for various applications, ensuring smooth motor operation.

• Capacitance range from 135 to 162 MFD
• Voltage rating of 330VAC
• Hermetically sealed to protect against contaminants

Product Highlights

This motor start capacitor is UL listed and CSA certified, ensuring compliance with safety standards. The phenolic casing provides durability and temperature resistance.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 11992

Technical Specifications

• Capacitance: 135 to 162 MFD
• Voltage Rating: 330VAC
• Frequency Rating: 50/60 Hz
• Terminal: 2
• Shape: Round
• Dimensions: 1.812 inch diameter x 4.375 inch height
• Material: Phenolic
• Temperature Rating: -40 to 65 Deg C
