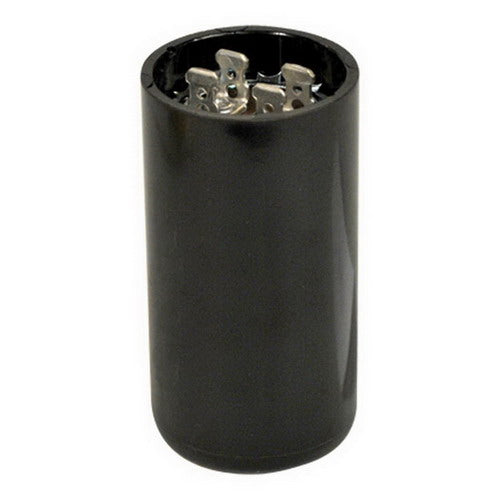

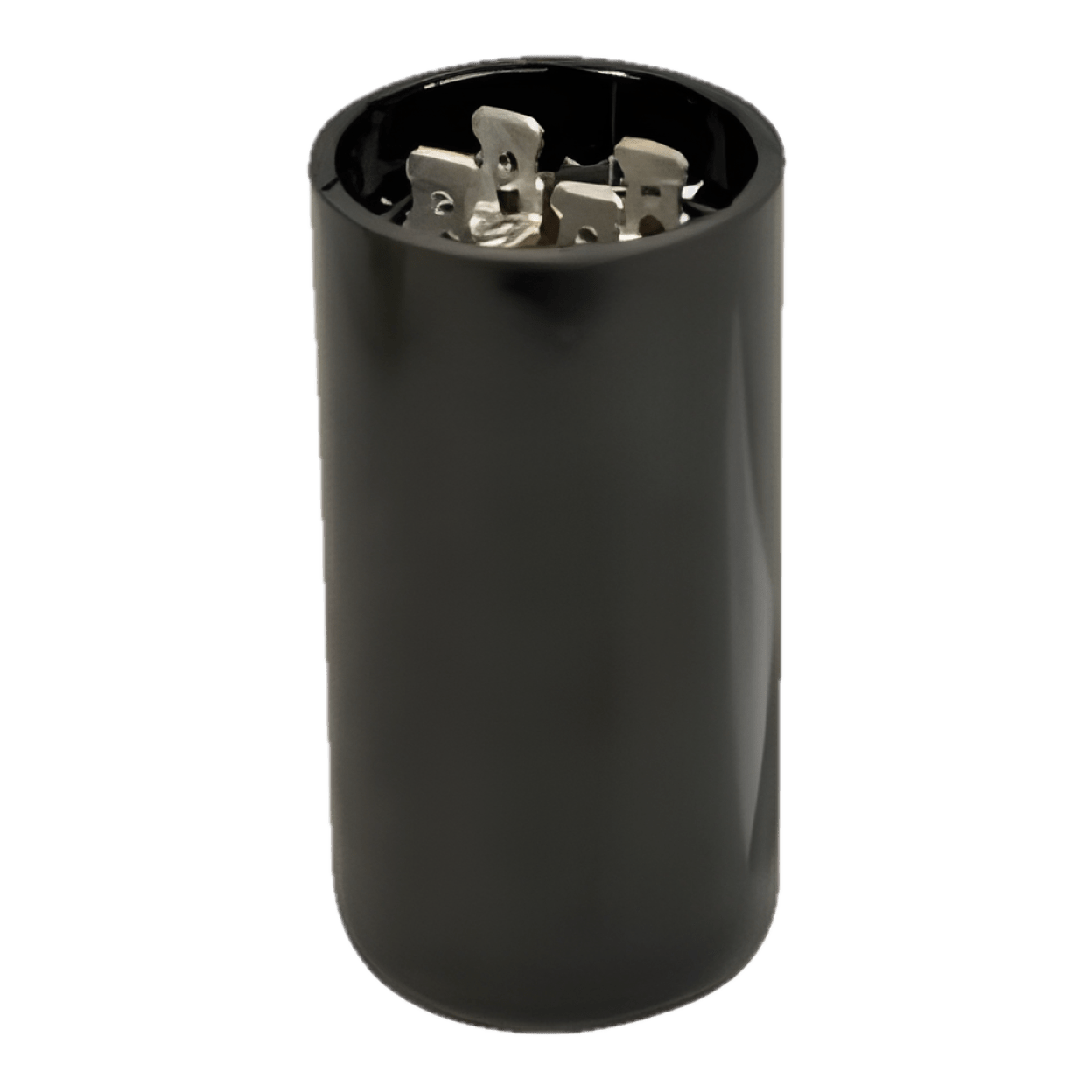

MARS Motors and Armatures 11970 Jard 270 to 324 MFD 330VAC Round Motor Start Capacitor, Phenolic

Product Description

The MARS Motors and Armatures 11970 is a motor start capacitor designed for effective performance in HVAC systems. This round capacitor provides a capacitance range of two hundred seventy to three hundred twenty-four microfarads (MFD) with a voltage rating of three hundred thirty volts alternating current (VAC).

• Capacitance range: 270 to 324 MFD
• Voltage rating: 330VAC
• UL Listed and CSA Certified for safety

Product Highlights

This product is a component used in starting motors, ensuring reliable operation and enhancing the efficiency of HVAC systems.

Product Information

Standard Information

• Manufacturer: MARS Motors and Armatures
• Part Number: 11970

Technical Specifications

• Type: Motor Start Capacitor
• Shape: Round
• Capacitance: 270 to 324 MFD
• Voltage Rating: 330VAC
• Frequency Rating: 50/60 Hz
• Terminal: 2
• Outside Diameter: 2.062 inches
• Overall Height: 4.375 inches
• Material: Phenolic
• Temperature Rating: -40 to 65 Deg C
• Standards/Approvals: UL Listed and CSA Certified
