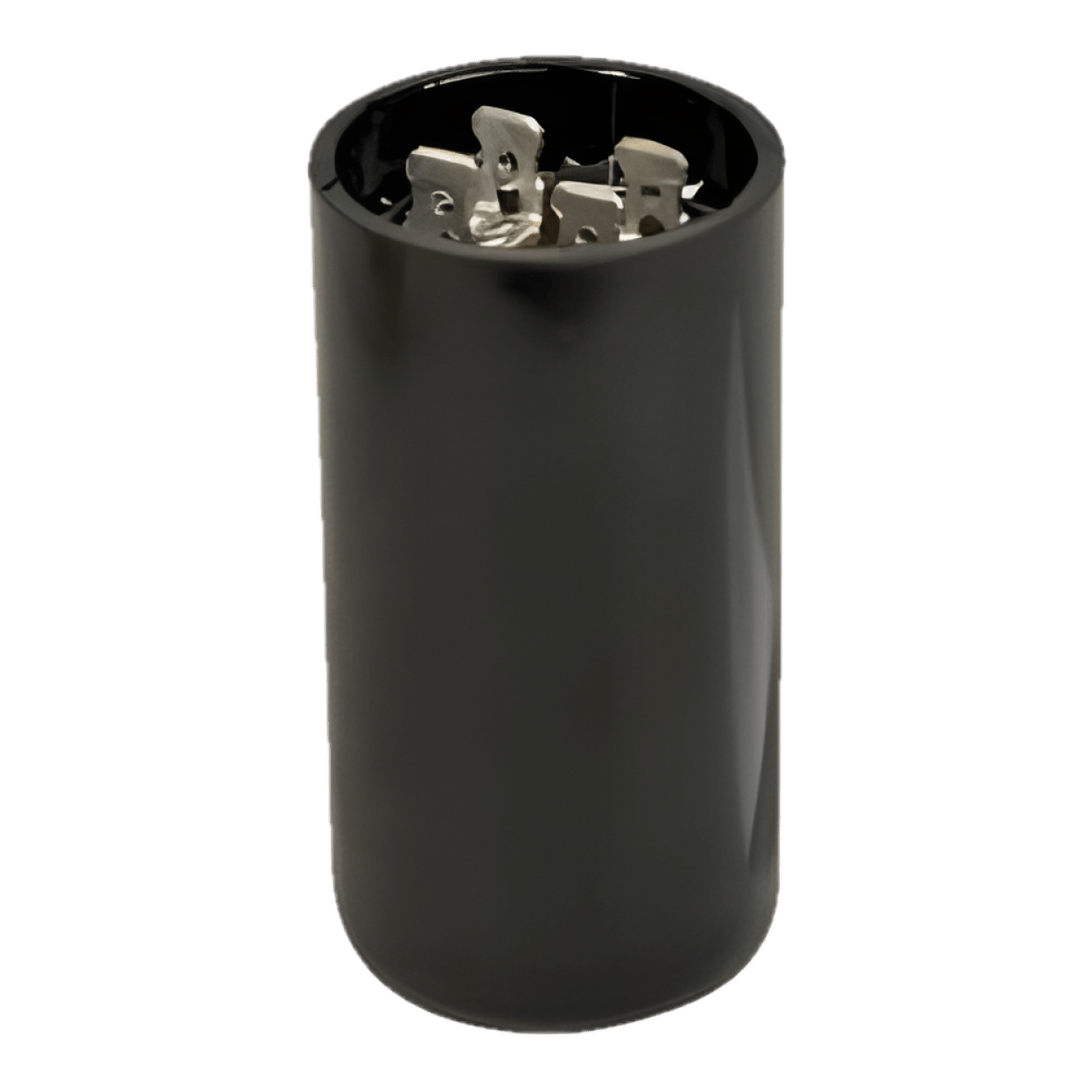

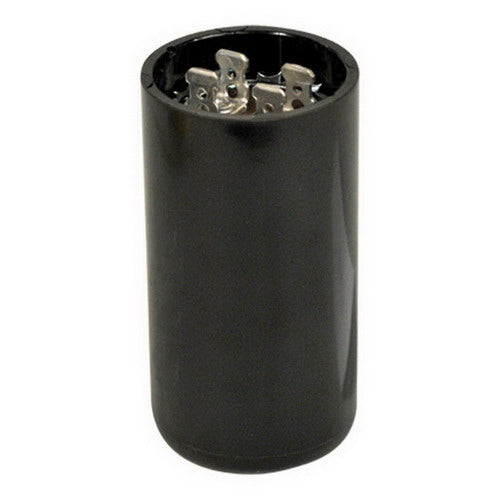

MARS Motors and Armatures 11968 Jard 189 to 227 MFD 330VAC Round Motor Start Capacitor

Product Description

The MARS Motors and Armatures 11968 is a round motor start capacitor designed to meet high performance standards. It provides a capacitance range of 189 to 227 MFD and operates at a voltage rating of 330VAC. This capacitor is suitable for use in HVAC systems to enhance motor reliability.

• Capacitance range: 189 to 227 MFD
• Voltage rating: 330VAC
• Temperature rating: -40 to 65 Deg C

Product Highlights

This product is ideal for replacing capacitors in various HVAC applications. It features a phenolic construction that withstands heat and humidity, ensuring durability.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: 11968

Technical Specifications

• Item Name: Motor Start Capacitor
• Shape: Round
• Capacitance: 189 to 227 MFD
• Voltage Rating: 330VAC
• Frequency Rating: 50/60 Hz
• Terminal: 2
• Outside Diameter: 1.812 inch
• Overall Height: 4.375 inch
• Material: Phenolic
• Temperature Rating: -40 to 65 Deg C
• Standards/Approvals: UL Listed and CSA Certified
