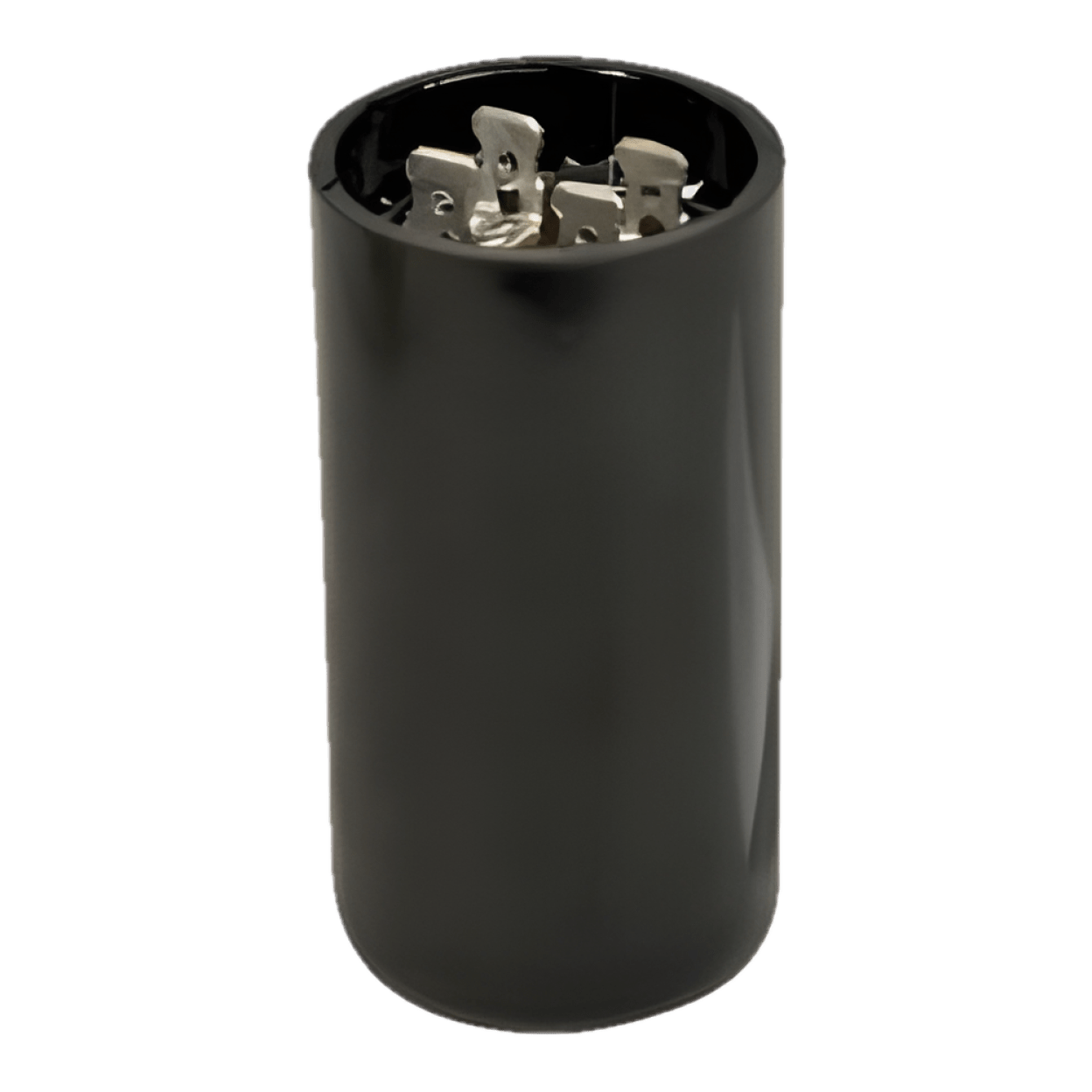

MARS Motors and Armatures 11952 Jard 216 to 259 MFD 220/250VAC Round Motor Start Capacitor

Product Description

The MARS Motors and Armatures 11952 is a round motor start capacitor designed for HVAC applications. It has a capacitance range of two hundred sixteen to two hundred fifty-nine MFD. The voltage rating is suitable for two hundred twenty to two hundred fifty VAC, making it ideal for various motor start applications.

• Capacitance range: 216 to 259 MFD
• Voltage rating: 220/250VAC
• Temperature rating: -40 to 65 Degrees Celsius

Product Highlights

This capacitor is built with a phenolic material that provides durability. It is hermetically sealed to protect against oil, dirt, and moisture. Improved terminal construction ensures lower heat generation under high-temperature conditions.

Product Information

Standard Information

• Item Name: Motor Start Capacitor
• Shape: Round

Technical Specifications

• Capacitance: 216 to 259 MFD
• Voltage Rating: 220/250VAC
• Frequency Rating: 50/60 Hz
• Terminal: 2
• Outside Diameter: 1.812 inch
• Overall Height: 3.375 inch
• Material: Phenolic
• Temperature Rating: -40 to 65 Degrees Celsius
• Standards/Approvals: UL Listed and CSA Certified
