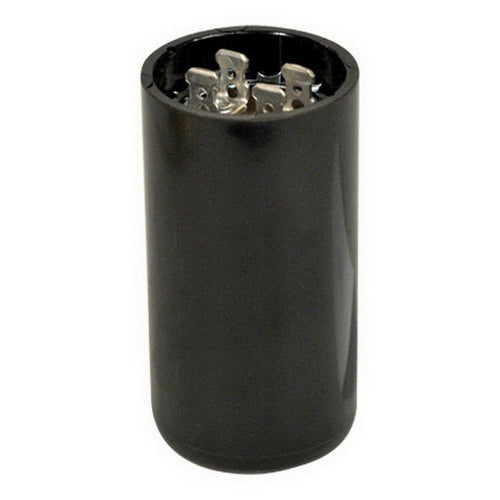

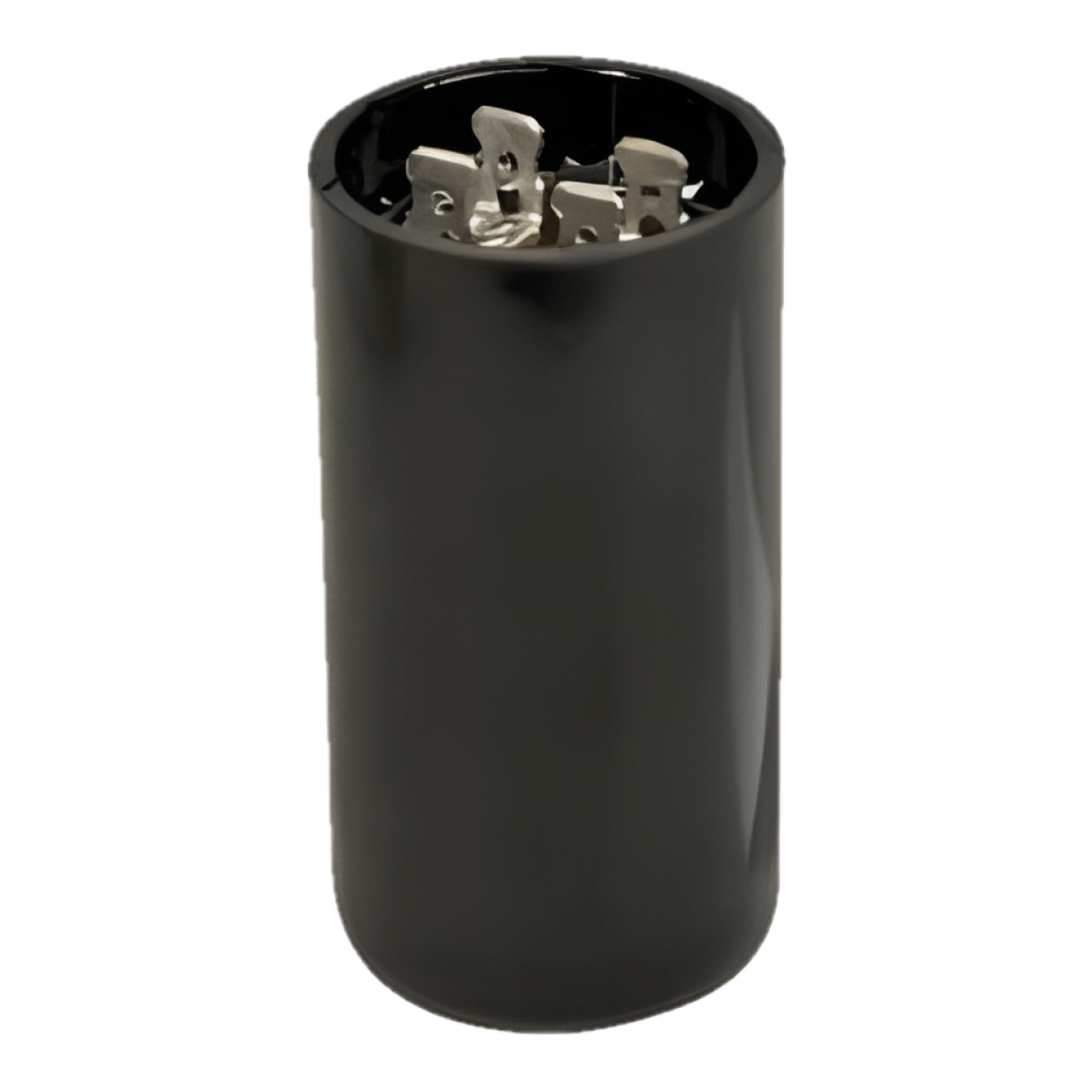

MARS Motors and Armatures 11950 Jard 161 to 193 MFD 220/250VAC Round Motor Start Capacitor, Phenolic

Product Description

The MARS Motors and Armatures 11950 is a round motor start capacitor designed for HVAC applications. This capacitor has a capacitance value ranging from one hundred sixty-one to one hundred ninety-three MFD and operates at a voltage rating of two hundred twenty to two hundred fifty VAC.

• Capacitance: 161 to 193 MFD
• Voltage Rating: 220/250VAC
• Material: Phenolic

Product Highlights

Ideal for replacing worn-out capacitors in HVAC systems, this component is UL listed and CSA certified. The phenolic material provides durability and can withstand temperatures from negative forty to sixty-five degrees Celsius.

Product Information

Standard Information

• Item Name: Motor Start Capacitor
• Shape: Round

Technical Specifications

• Voltage Rating: 220/250VAC
• Capacitance: 161 to 193 MFD
• Temperature Rating: -40 to 65 Deg C
• Overall Height: 3.375 inch
• Overall Diameter: 1.812 inch
• Terminal: 2
• Frequency Rating: 50/60 Hz
• Standards/Approvals: UL Listed and CSA Certified
