MARS Motors and Armatures 10870 Mars Azure Digi-Motor 117 2-Speed Outdoor Condenser Fan Motor 230V 1/5 to 1/2 HP 825 to 1075 rpm

Product Description

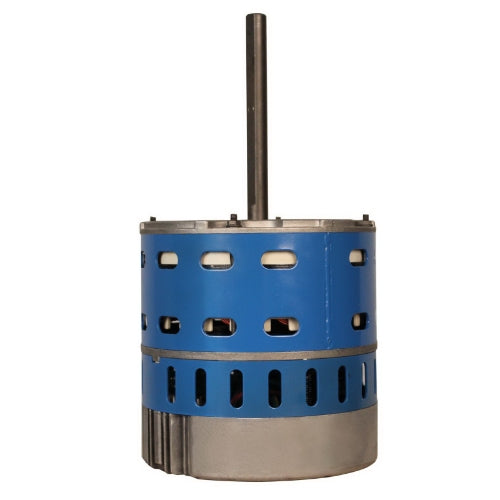

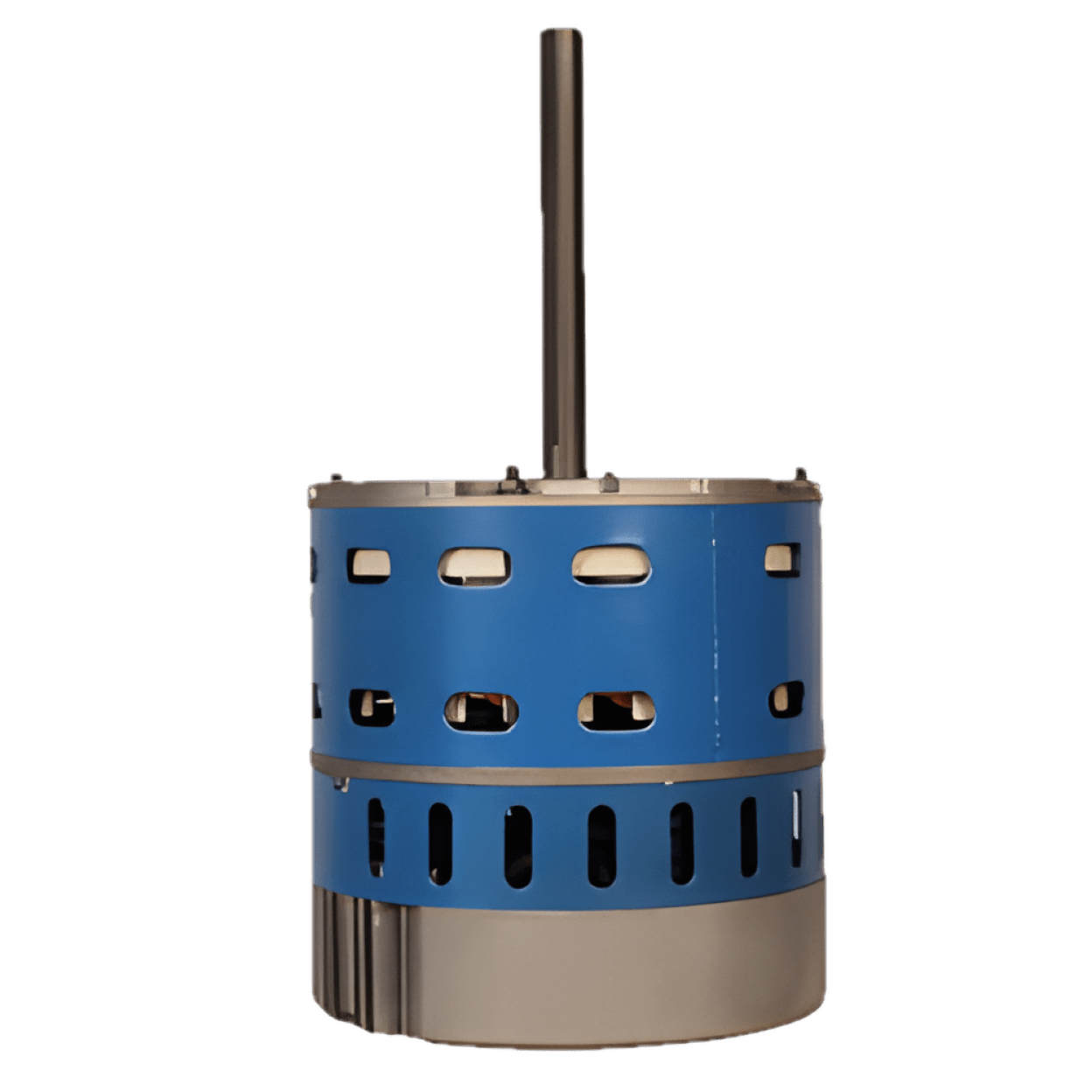

The MARS Motors and Armatures 10870 is a reliable outdoor condenser fan motor designed for HVAC applications. With a voltage rating of 208 to 230 volts and power ranging from one-fifth to one-half horsepower, this motor operates effectively at a speed between eight hundred twenty-five to one thousand seventy-five RPM.

• Two-speed operation for efficiency
• Reversible rotation to fit various installation requirements
• Built with a durable NEMA 48 frame

Product Highlights

This motor is suitable for outdoor use and is designed specifically for condenser applications in HVAC systems, offering versatility with its two-speed feature.

Product Information

Standard Information

• Item Name: Condenser Fan Motor
• Manufacturer: MARS Motors and Armatures

Technical Specifications

• Horse Power: 1/5 HP
• Voltage Rating: 208 to 230V
• Phase: 1
• Shaft Diameter: 1/2 inch
• Mounting: Stud
• Frame: NEMA 48
• Number of Speed: 2
• Rotation: Reversible
