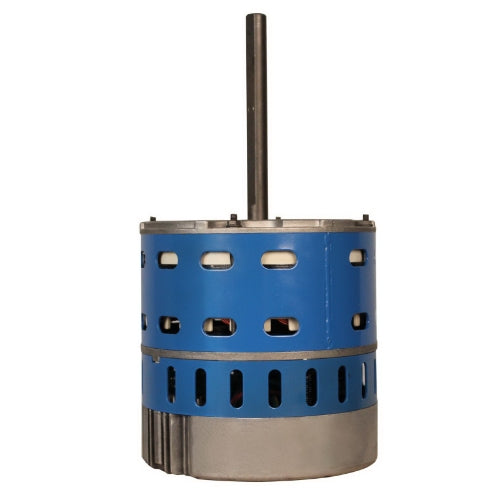

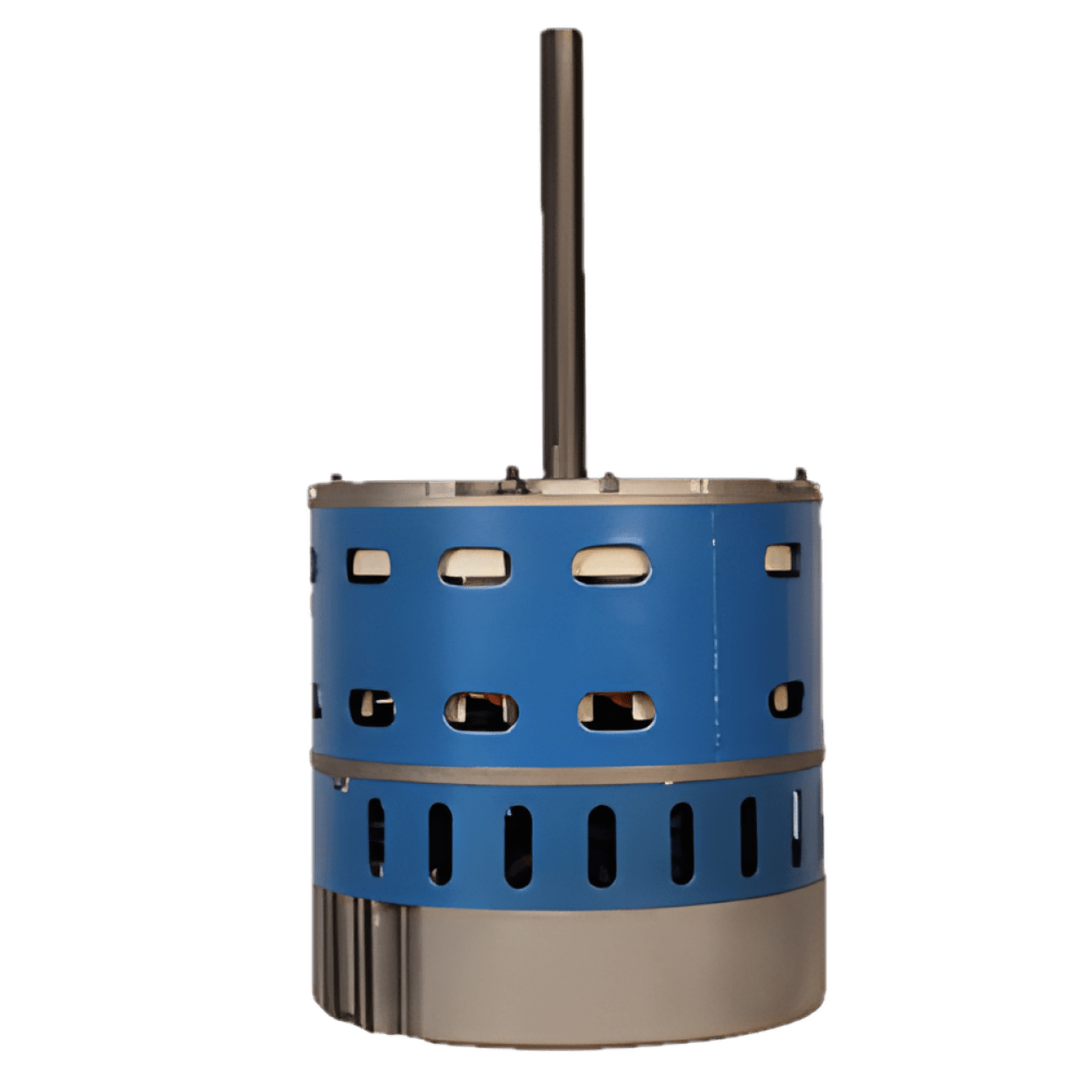

MARS Motors and Armatures 10860 Mars Azure Digi-Motor 116 5-Speed Blower Motor, 120 to 240V, 1/5 to 1/2 HP, 350 to 1400 rpm

Product Description

The MARS Motors and Armatures 10860 is a reliable blower motor, designed to deliver performance for various HVAC applications. This model operates between 120 to 240 volts and features a power range of one-fifth to one-half horsepower. Its five-speed functionality allows for efficient airflow management, making it suitable for different system requirements.

• Voltage range from 120 to 240 volts
• Five-speed options for flexible operation
• Compact design suitable for standard HVAC applications

Product Highlights

This blower motor is ideal for use in heating and cooling systems, ensuring efficient ventilation and air circulation.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 10860

Technical Specifications

• RPM: 1400
• Type: Blower Motor
• Frame: NEMA 48
• Phase: 1
• Horse Power: 1/5 HP
• Voltage Rating: 120 to 240V
• No Load RPM: 350 to 1400
• Shaft Diameter: 1/2 inch
• Shaft Length: 4.94 inches
• Motor Body Diameter: 5-1/2 inches
• Mounting: Belly Band
• Rotation: CCW/CW
• Bearing Type: Ball
• Number of Speed: 5
