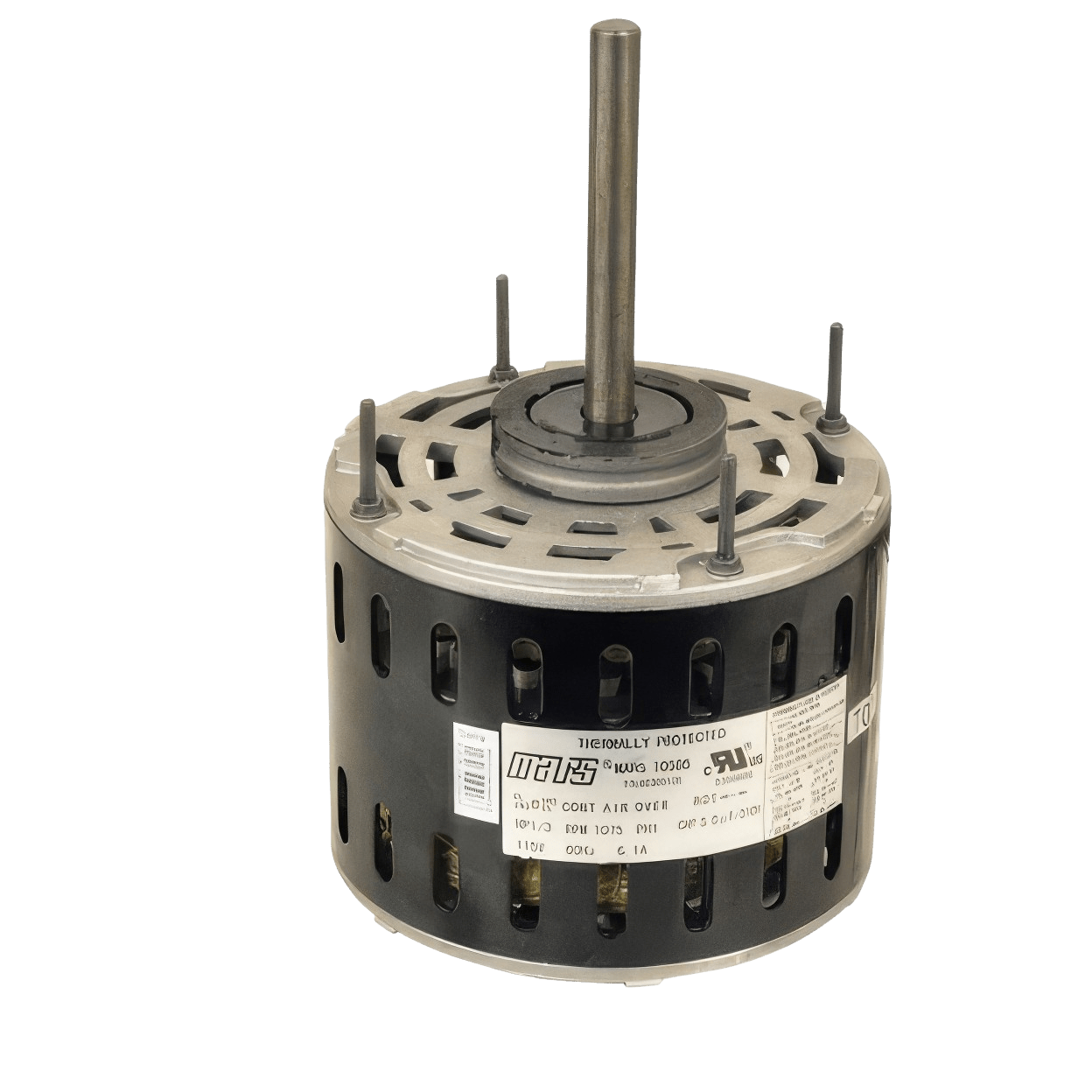

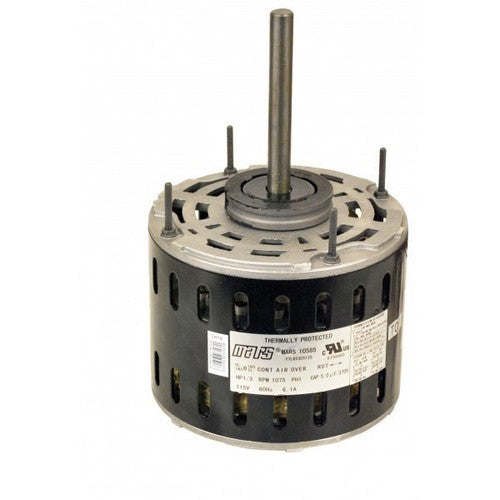

MARS Motors and Armatures 10729 Mars Outdoor 1 Speed 1-Phase Reversible Condenser Fan Motor, 1075 rpm, 1/3 HP, 208 - 230V

Product Description

MARS Motors and Armatures presents the MPN 10729 condenser fan motor designed for reliable performance in outdoor HVAC applications. This motor operates at one speed and is reversible, making it suitable for various setups.

• Voltage rating of 208 to 230 volts
• Horsepower of one-third, ideal for moderate cooling needs
• Compatible with both thru-bolts and band mounting systems

Product Highlights

This condenser fan motor is efficient and versatile, making it a preferred choice for HVAC professionals. Its reversible function allows for adjustments based on specific cooling requirements.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 10729

Technical Specifications

• RPM: 1075 rpm
• Type: Condenser Fan Motor
• Phase: 1-Phase
• Voltage Rating: 208 to 230V
• Horse Power: 1/3 HP
• Shaft Diameter: 1/2 inch
• Capacitor: 7.5 MFD/370V
• Mounting: Thru-Bolts or Band Mounting
• Shaft Length: 6 inch
• Bearing Type: Sleeve
• Amperage Rating: 2.4A
• Rotation: Reversible
