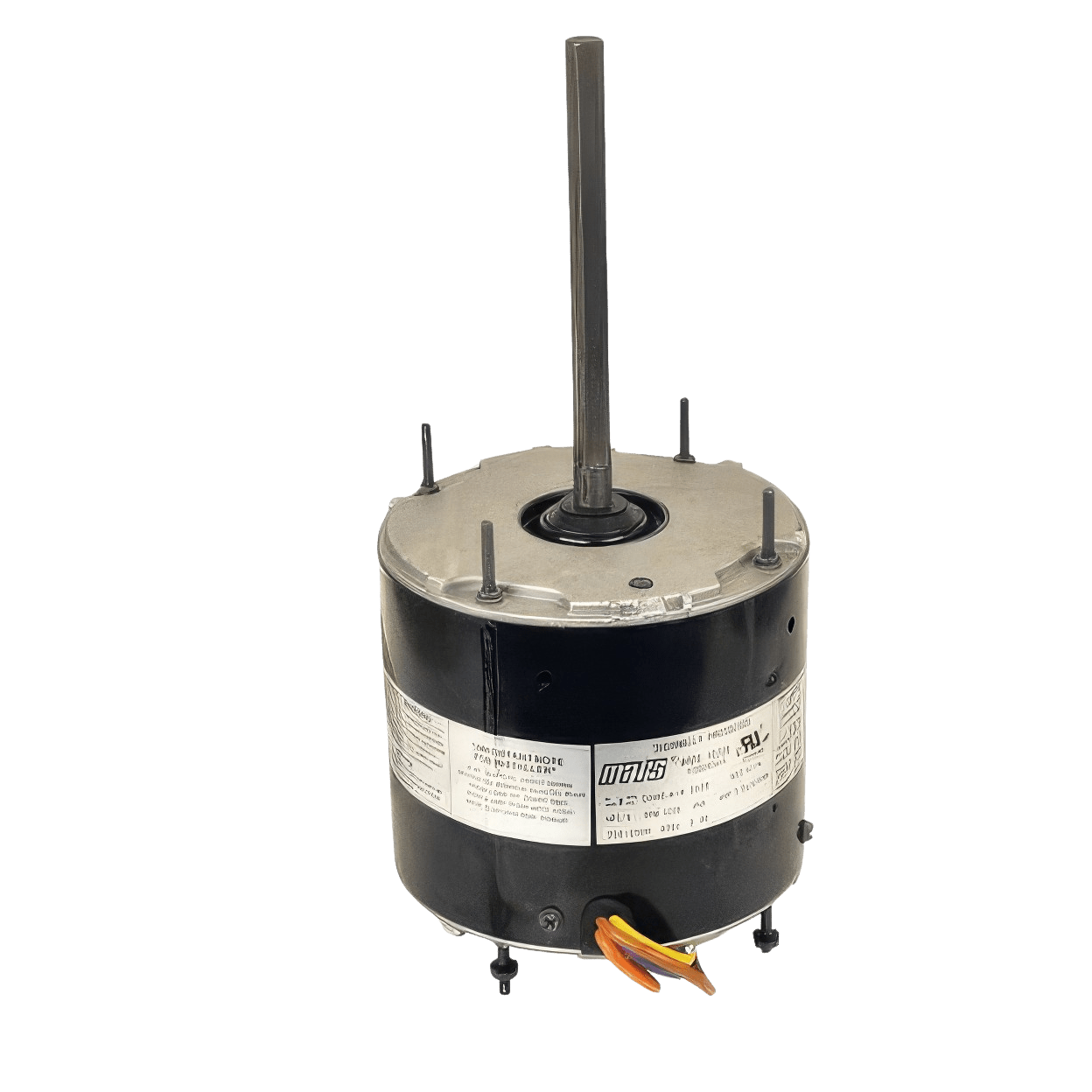

MARS Motors and Armatures 10727 Mars 1/6 HP 208 to 230V PSC Condenser Fan Motor

Product Description

The MARS Motors and Armatures 10727 is a condenser fan motor designed for outdoor use. This motor operates at a 1/6 horsepower with voltage ratings of 208 to 230 volts. It has a no-load RPM of one thousand seventy-five and features a drip-proof enclosure, making it suitable for air conditioning or heat pump applications.

• Voltage Rating: 208 to 230V
• Thermal Protection: Automatic
• Reversible Rotation

Product Highlights

This motor is efficient for air circulation in various HVAC systems, ensuring optimal performance in outdoor installations.

Product Information

Standard Information

• Item Name: Condenser Fan Motor
• Horse Power: 1/6 HP

Technical Specifications

• No Load RPM: 1075 rpm
• Type: Outdoor, PSC
• Enclosure: Drip Proof
• Frame: #48
• Hertz: 60 Hz
• Phase: 1
• Ampere Rating: 0.9A
• Mounting: All Angle
• Rotation: Reversible
• Ambient Temperature: 60 Deg C
• Insulation Class: Class B
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inch
• Capacitor Rating: 5/370 MFD
• Bearing: Sleeve
• Standards/Approvals: cUL Listed
• Applications: For Air Conditioning or Heat Pump Applications
