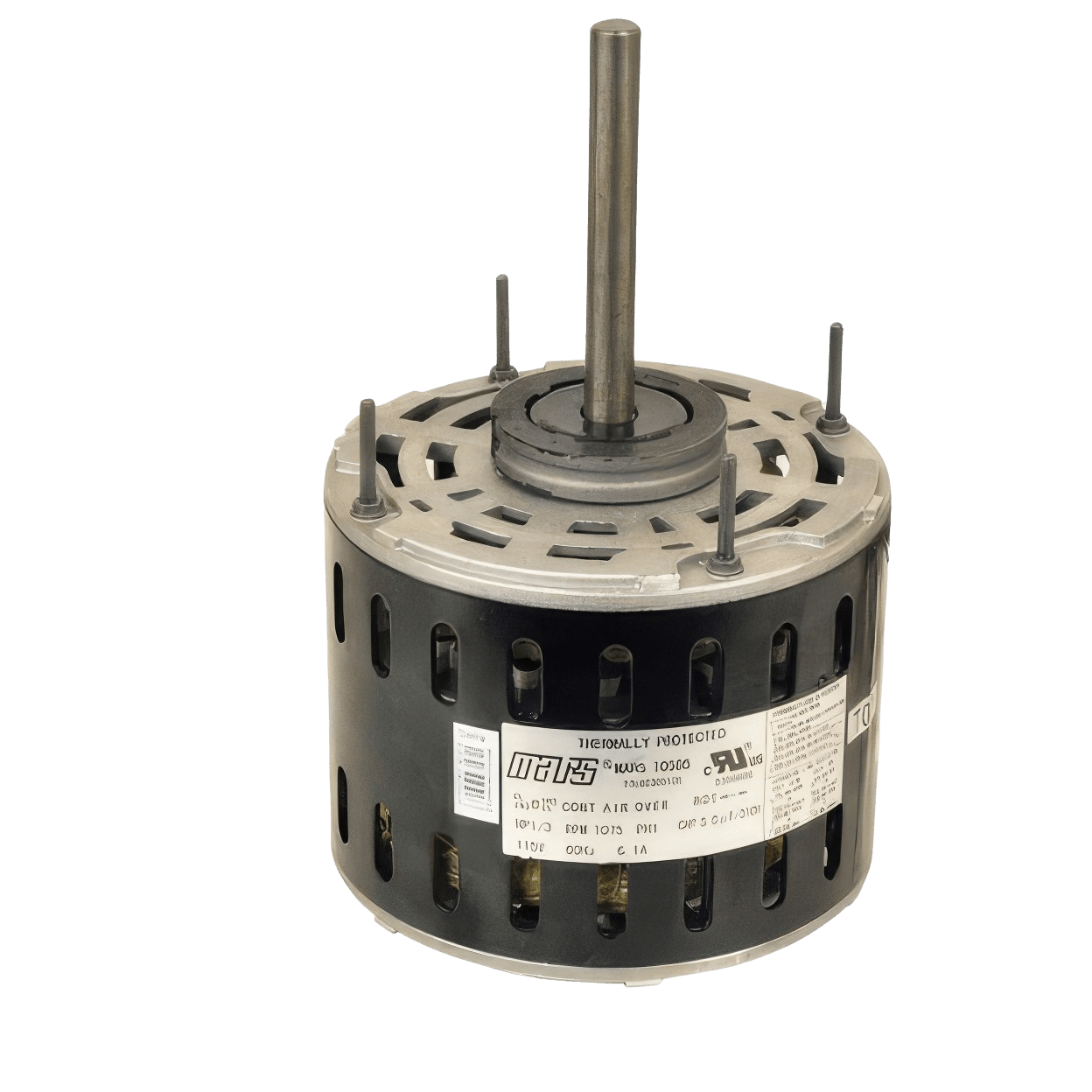

MARS Motors and Armatures 10590 Mars Direct Drive 3-Speed 1-Phase Reversible Blower Motor, 1075 rpm, 3/4 HP, 208 - 230V

Product Description

The MARS Motors and Armatures 10590 is a direct drive blower motor that operates at seven hundred seventy-five RPM. This blower motor is designed specifically for HVAC applications. With a three-quarter horsepower rating and a voltage range from two hundred eight to two hundred thirty volts, it provides the necessary power for efficient airflow.

• Voltage Rating: 208 to 230V
• Phase: 1-Phase
• Mounting: Resilient Rings, Thru Bolts

Product Highlights

This motor is reversible, offering flexibility in installation. It features a sleeve bearing type and a NEMA 48 frame size, ensuring compatibility with a variety of systems.

Product Information

Standard Information

• MPN: 10590
• Product Name: Mars Direct Drive 3-Speed Blower Motor

Technical Specifications

• Horse Power: 3/4 HP
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inch
• No Load RPM: 1075 rpm
• Amperage Rating: 4.5A FLA
• Bearing Type: Sleeve
• Rotation: Reversible
