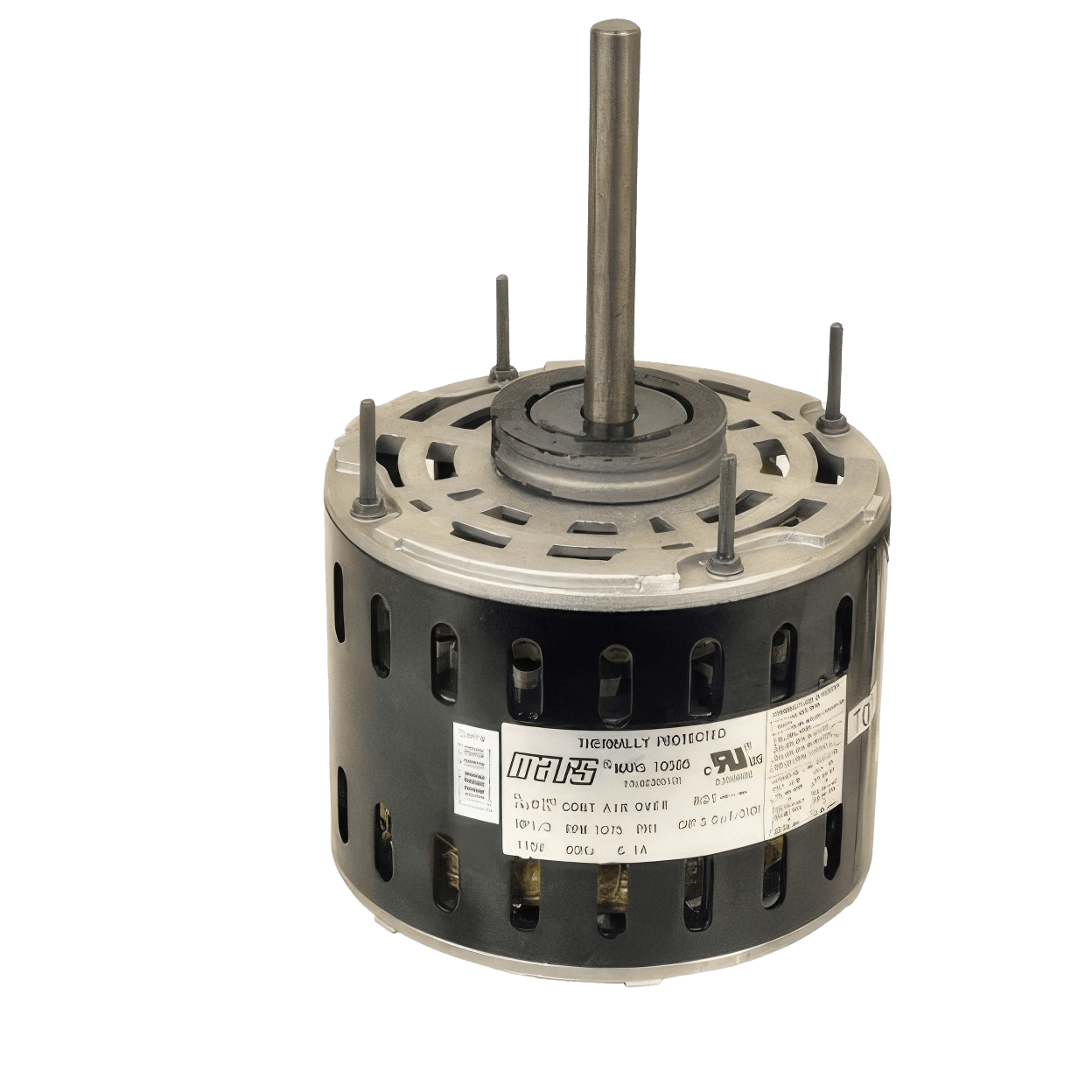

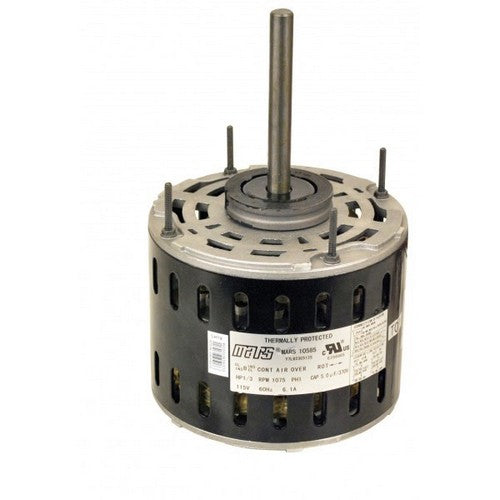

MARS Motors and Armatures 10588 Mars Direct Drive 3-Speed 1-Phase Reversible Blower Motor 1/2 HP 208 - 230V

Product Description

The MARS Motors and Armatures 10588 is a direct drive 3-speed blower motor. Designed for HVAC applications, this motor operates efficiently at a speed of one thousand seventy-five RPM. It is reversible and ideal for varied airflow requirements.

• Power: Half horsepower
• Voltage: Supports two hundred eight to two hundred thirty volts
• Phase: Operates on single-phase power

Product Highlights

This motor features resilient mounting rings and is designed to fit NEMA 48 frames. It also has a shaft length of four and a half inches and a diameter of half an inch, making it versatile for installation.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 10588

Technical Specifications

• RPM: 1075
• Type: Blower Motor
• Frame: NEMA 48
• Phase: 1-Phase
• Horse Power: 1/2 HP
• Voltage Rating: 208 to 230V
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inch
• Mounting: Resilient Rings, Thru Bolts
• Amperage Rating: 3.2A FLA
• Bearing Type: Sleeve
• Rotation: Reversible
