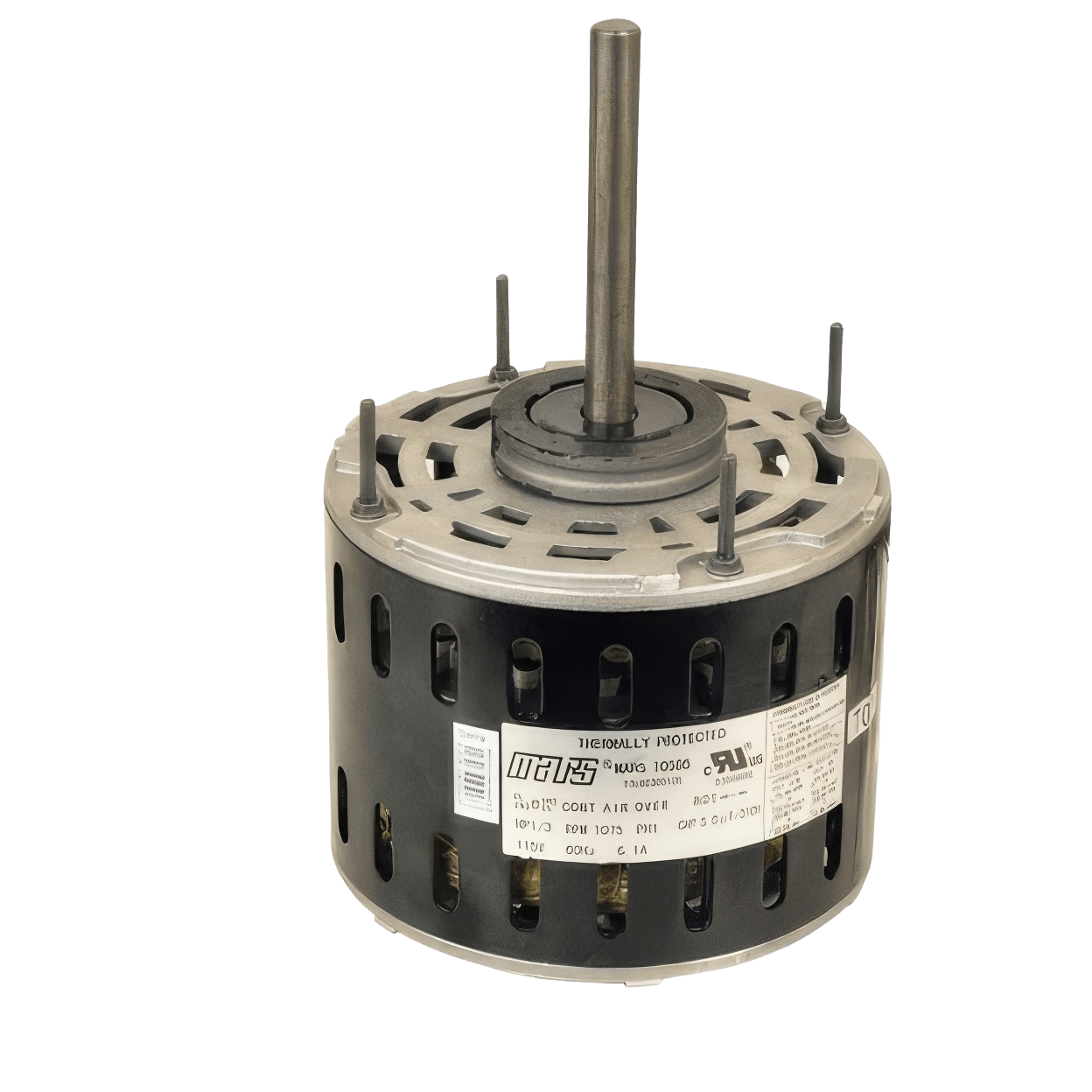

MARS Motors and Armatures 10585 Mars Direct Drive 3-Speed 1-Phase Reversible Blower Motor, 1/3 HP 115V

Product Description

The MARS Motors and Armatures 10585 is a versatile blower motor designed for HVAC applications. This motor features a three-speed setting and operates at a speed of one thousand seventy-five revolutions per minute. It is a one-phase motor rated at one-third horsepower and one hundred fifteen volts, making it suitable for a variety of heating and cooling systems.

• Three-speed operation for optimal airflow control
• Reversible rotation for versatile installation
• High performance at one-third horsepower

Product Highlights

This blower motor is ideal for both residential and commercial HVAC systems. It can be used in applications requiring a reliable and efficient blower motor to maintain air circulation.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• MPN: 10585

Technical Specifications

• RPM: 1075 rpm
• Type: Blower Motor
• Voltage Rating: 115V
• Horse Power: 1/3 HP
• Phase: 1-Phase
• No Load RPM: 1075 rpm
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inch
• Mounting: Resilient Rings, Thru Bolts
• Frame: NEMA 48
• Bearing Type: Sleeve
• Amperage Rating: 6.1A FLA
• Rotation: Reversible
