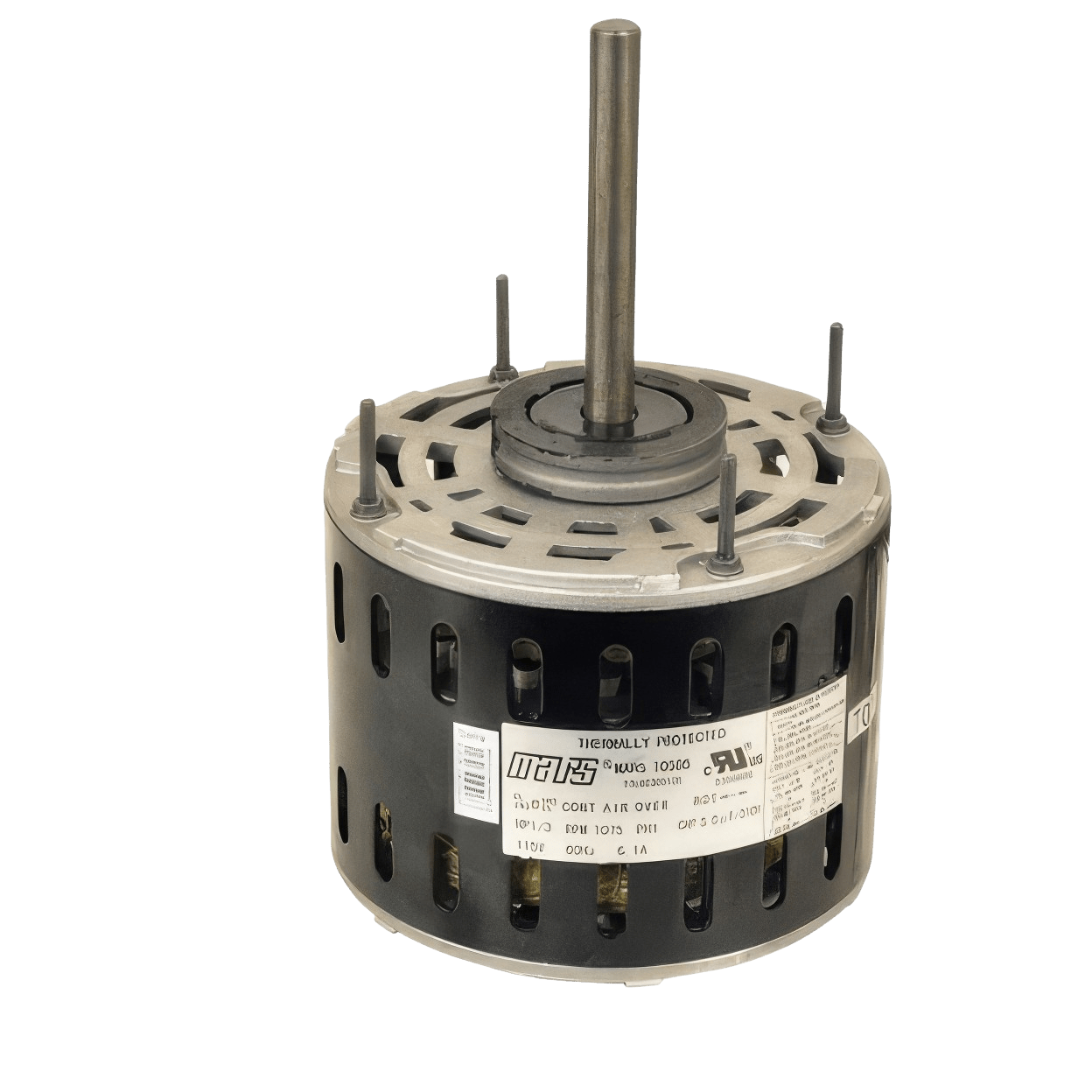

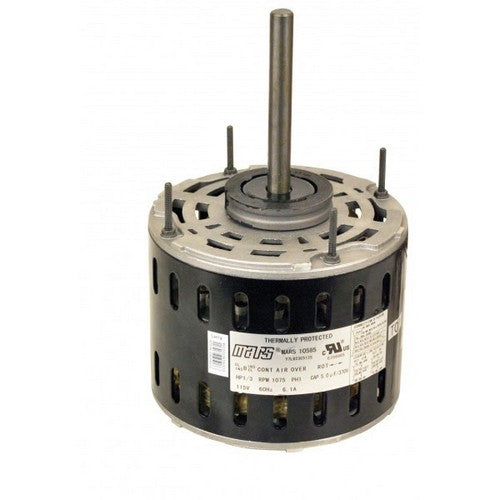

MARS Motors and Armatures 10583 Mars Direct Drive 3-Speed 1-Phase Reversible Blower Motor, 1075 rpm, 1/4 HP, 115V

Product Description

The MARS Motors and Armatures 10583 is a reliable blower motor designed for HVAC applications. This motor operates at one-quarter horsepower and runs at a speed of 1075 revolutions per minute. It is rated for 115 volts and features a reversible operation. This motor is ideal for heating and cooling systems.

• Voltage: 115V
• Horsepower: 1/4 HP
• Phase: 1-Phase

Product Highlights

This blower motor is designed for maximum efficiency and durability in HVAC systems. With a robust build, it is suitable for various applications requiring reliable airflow.

Product Information

Standard Information

• Item Name: Blower Motor
• Type: Blower Motor

Technical Specifications

• RPM: 1075 rpm
• Voltage Rating: 115V
• Horse Power: 1/4 HP
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 4-1/2 inch
• Frame: NEMA 48
• Amperage Rating: 4.2A FLA
• Bearing Type: Sleeve
• Rotation: Reversible
• Mounting: Resilient Rings, Thru Bolts
