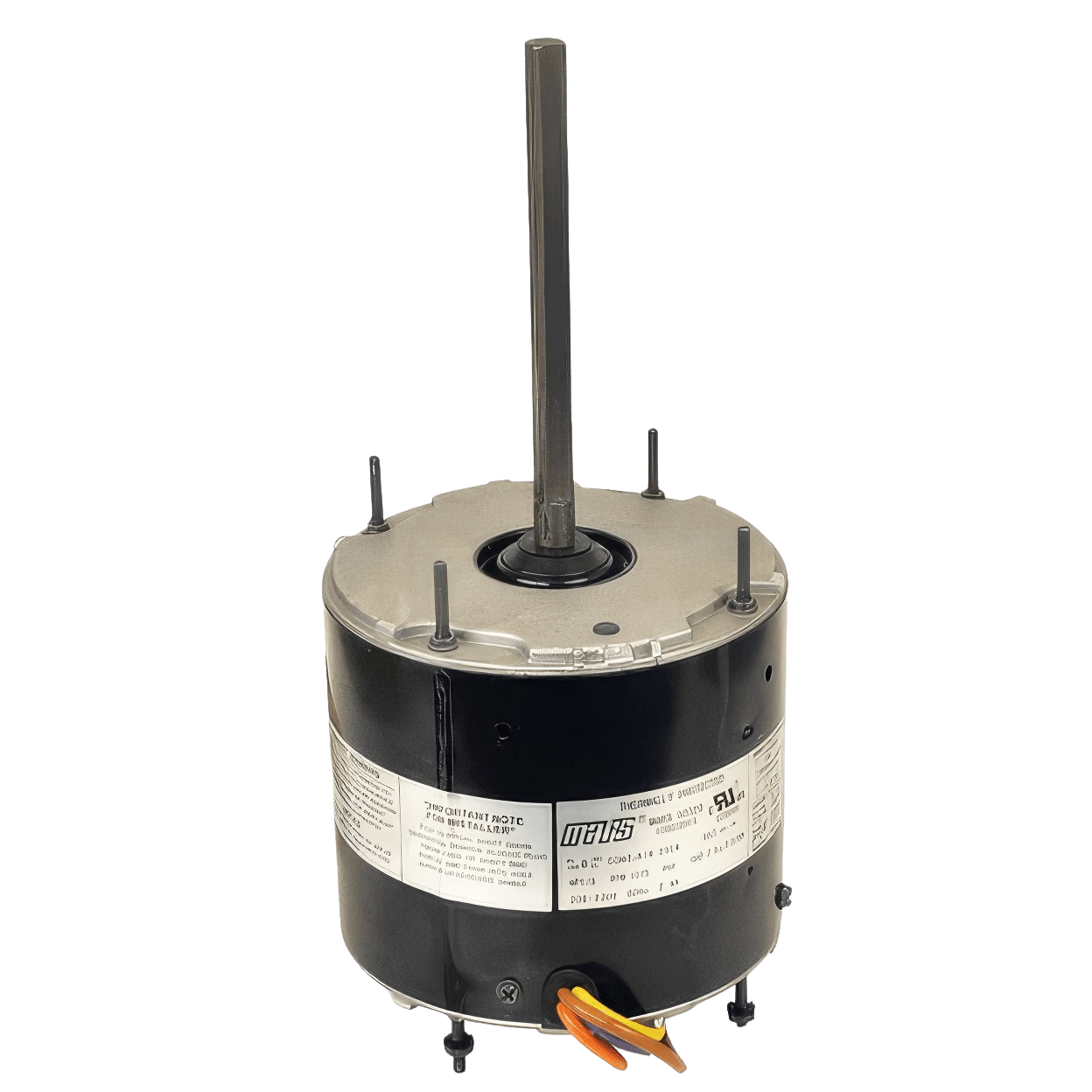

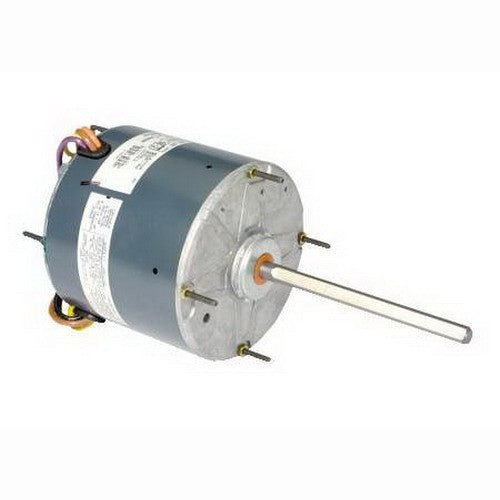

MARS Motors and Armatures 10459 GE/Genteq 1 Speed 1-Phase Reversible Condenser Fan Motor, 825 rpm, 1/3 - 1/8 HP, 208 - 230V

Product Description

MARS Motors and Armatures 10459 is a versatile condenser fan motor designed for HVAC applications. This fan motor operates at eight hundred twenty-five revolutions per minute and supports a power range from one-eighth to one-third horse power. It is suitable for voltages of two hundred eight to two hundred thirty volts.

• 1-Phase electric motor with reversible rotation
• Compatible with various mounting options including thru-bolts or belly band
• Features a NEMA 48 frame for reliable performance

Product Highlights

This product is ideal for replacing worn-out fan motors in HVAC systems. Its efficient design allows for effective airflow management and supports a range of operating voltages.

Product Information

Standard Information

• Brand: MARS Motors and Armatures
• Part Number: GEM3459

Technical Specifications

• RPM: 825 rpm
• Type: Condenser Fan Motor
• Horse Power: 1/5 HP
• Phase: 1-Phase
• Voltage Rating: 208 to 230V
• Shaft Diameter: 1/2 inch
• Shaft Length: 6-3/4 inch
• Mounting: Thru-Bolts or Belly Band
• Frame: NEMA 48
• Amperage Rating: 1.9A
• Bearing Type: Ball
• Rotation: Reversible
