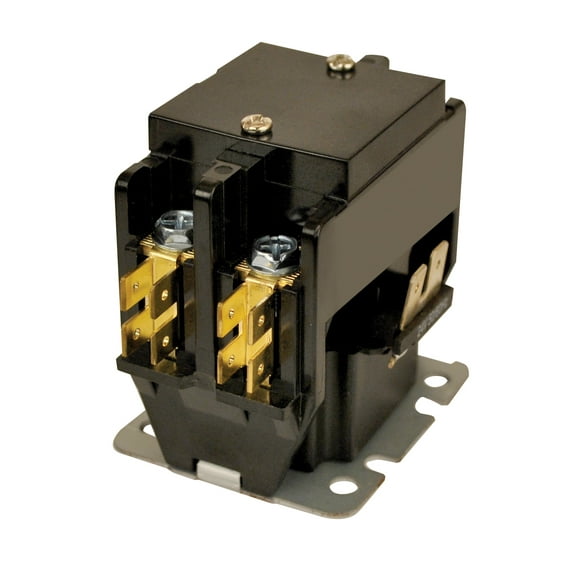

Mars Mars-17321 Definite Purpose Contractor 2 Pole 30 Full Load Amps 24 VAC 50/60 Hz

Product Description

The MARS MARS-17321 is a definite purpose contractor featuring 2 poles and a 24V AC 50/60 Hz coil. It is designed for HVAC/R applications and has a contact rating of 25A at 277 VAC Resistive and 15A at 277VAC Inductive. The contractor is designed for bracket mounting and utilizes a quick connect terminal style.

• 2 POLE,30 AMP.,24V. COIL CONTACTOR
• Hold Voltage 19.2VAC
• Drop-out Voltage >=4.8VAC

Product Highlights

This MARS definite purpose contractor is ideal for HVAC/R systems requiring reliable switching. It features a 24V coil and quick connect terminals for easy installation.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: MARS-17321

Technical Specifications

• Volts: 24 V
• Number of poles: 2
• Motor contactor type: Definite Purpose Contractor
• Brand: MARS Motors
• Hz: 50/60
• Contact Rating Amps: 25A at 277 VAC Resistive 15A at 277VAC Inductive
• Hold Voltage: 19.2VAC
• Drop-out Voltage: >=4.8VAC
• Mounting: Bracket
• Terminal Style: Quick Connect
