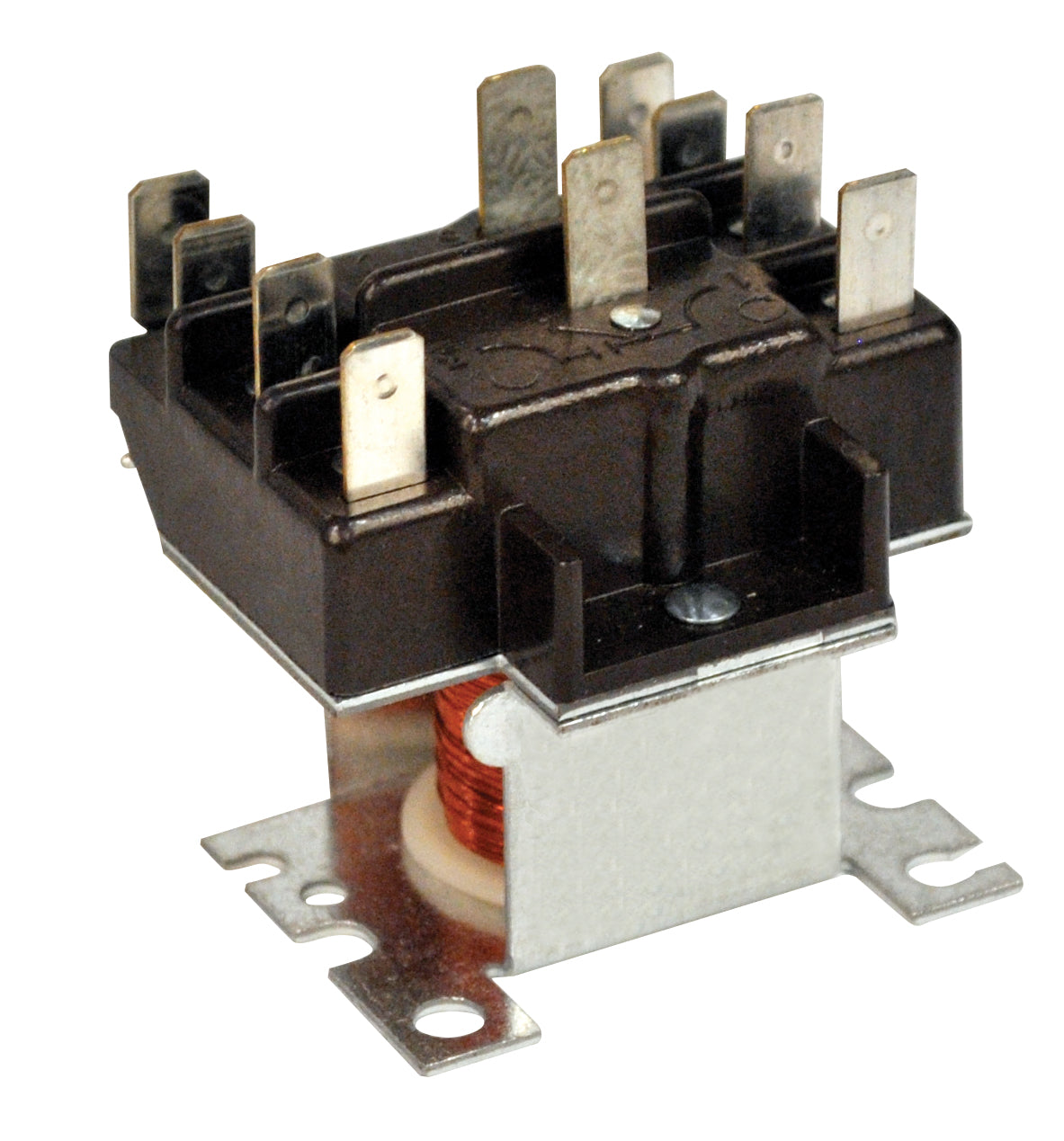

Mars M92342 dpdt Switching Relay 208/240V

Product Description

The MARS M92342 is a DPDT relay used for various applications in heating, air conditioning, and refrigeration. It is also suitable for general-purpose switching applications in appliances, vending machines, fan controls, and business machines, provided the device being controlled is within the electrical limits of the relay.

• Contact Voltage Rating: 277 Volt AC at 50/60 Hertz
• Coil Voltage: 110/120 Volt AC at 50/60 Hertz
• Contact Current Rating: 25 Amp at 277 Volt AC (Resistive), 15 Amp at 277 Volt AC (Inductive)

Product Highlights

This AC operated relay has a 2PDT contact configuration, quick connect terminals, and is UL and CUR approved. It measures 2.13" x 1.88" x 2.25".

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M92342

Technical Specifications

• Manufacturer Name: Mars
• Type: AC Operated
• Contact Configuration: DPDT
• Contact Voltage Rating: 277 Volt AC at 50/60 Hertz
• Contact Current Rating: 25 Amp at 277 Volt AC (Resistive), 15 Amp at 277 Volt AC (Inductive)
• Coil Voltage: 110/120 Volt AC at 50/60 Hertz
• Terminal Type: Quick Connect
• Approval: UL, CUR
• Application: Heating, Air Conditioning, Refrigeration
• Hold/Pick-Up Voltage Rating: 192 Volt AC
• Drop-Out Voltage: 38.4 Volt AC
