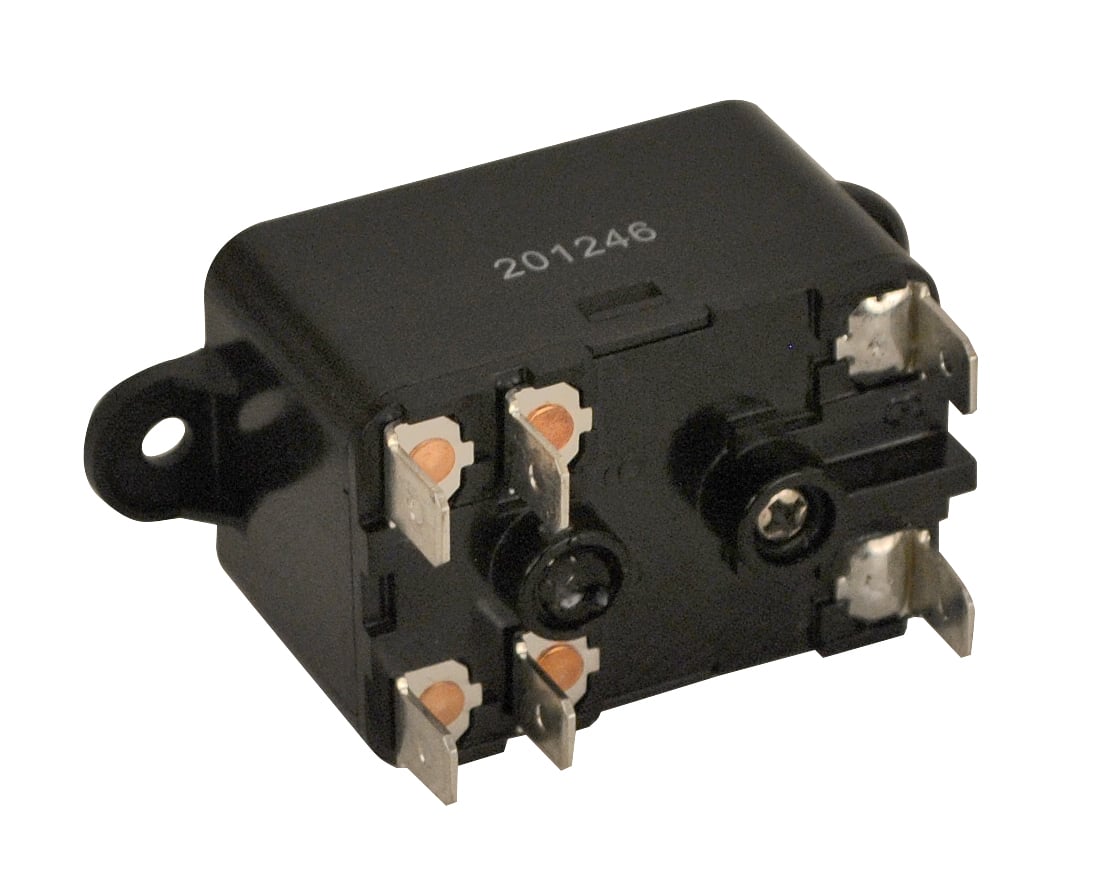

Mars M90380 Heavy Duty Fan Relay 24V replacement WR/Essex/RBM type 184

Product Description

The MARS M90380 heavy-duty fan relay is used in heating and air conditioning equipment to switch heavier loads with a compact size relay. This fan relay replaces WR/Essex/RBM type 184 and features quick-connect terminals and surface mounting. It operates at 60 Hz with a 24V AC coil.

• 1/4 in quick - connect terminal
• Packaged with instructions and cross reference
• Replaces WR/Essex/RBM type 184

Product Highlights

Heavy-duty fan relay with quick-connect terminals, suitable for HVAC applications. Replaces WR/Essex/RBM type 184.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M90380

Technical Specifications

• Coil Voltage: 24 V AC
• Contact Form: NO-NC 1 Form A/1 Form B SPST
• Contact Rating: 18 A
• Frequency Rating: 60 Hz
• Mounting Type: Surface
• Number of Poles: 1
• Series: 903
• Terminal Type: Quick-Connect
• Type: Heavy Duty
• Drop-out Voltage: 4.8 V
• Hold Voltage: 13.2 V
• Pick-up Voltage: 20.4 V
