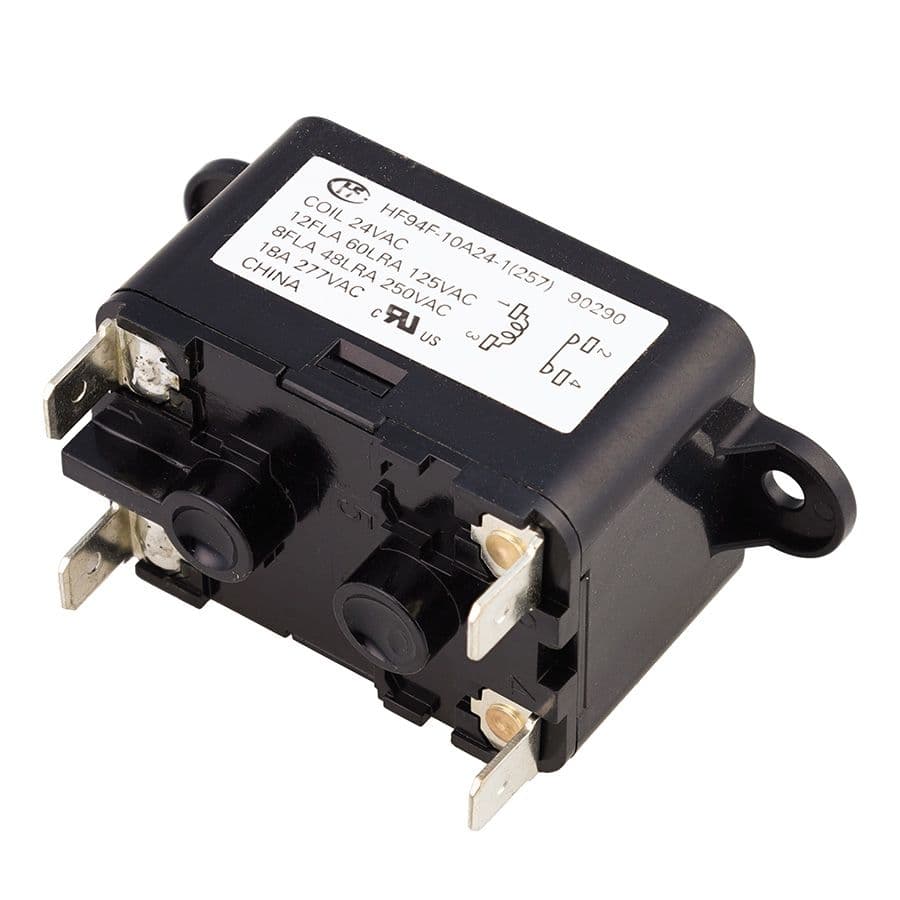

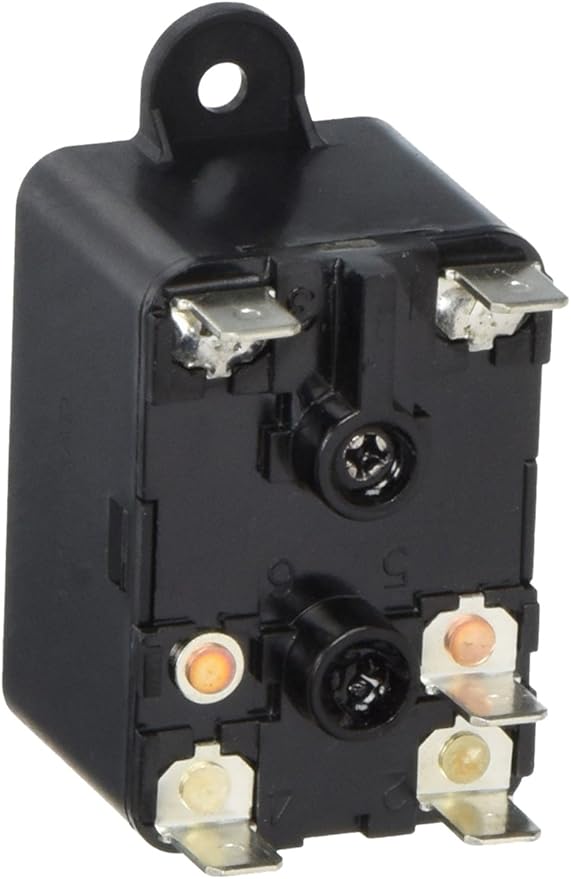

Mars M90293 spdt 24V Relay

Product Description

The MARS M90293 SPDT 24V Relay is a power relay commonly used in air conditioning systems. It features a flange mount and quick-connect terminals. The relay has a contact rating of 18 amps and operates at 60 Hz. It replaces WR/Essex/RBM Type 84 relays.

• Bracket Type flange
• Contact rating amps 18
• Pick-up Voltage 20.4
• Replaces WR/Essex/RBM Type 84

Product Highlights

The MARS M90293 is a SPDT relay with a 24V coil, flanged mount and quick connect terminals.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M90293

Technical Specifications

• Mounting Type: Flange Mount
• Contact Type: Normally Open
• Current Rating: 18 Amps
• Operation Mode: Automatic
• Coil Voltage: 24 VAC
• Contact Form: SPDT
• Contact Rating: 18 A
• Drop-out Voltage: 4.8 V
• Electrical Connection: Quick Connect
• Frequency Rating: 60 Hz
• Hold Voltage: 13.2 V
• Pick-up Voltage: 20.4 V
• Relay Type: Power Fan Relay
• Terminal Type: Quick-Connect
• Contact Material: Silver
• Maximum Switching Current: 18 Amps
• Maximum Switching Voltage: 24 Volts
• Minimum Switching Voltage: 20.4 Volts
• Specification Met: UL
• Connector Type: Quick Connect
