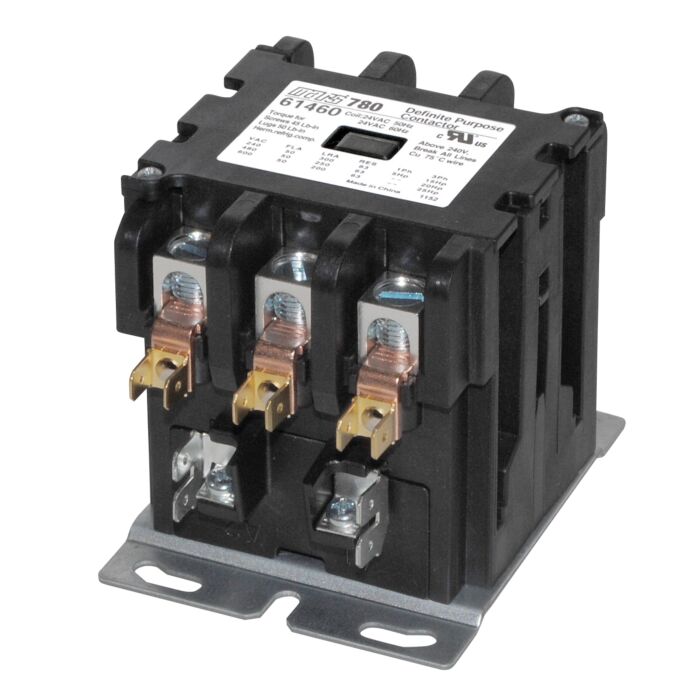

Mars M61460 780 Contactors - 3p 50a 24v Box Lug Term

Product Description

The MARS M61460 780 Professional Grade DP Contactor is designed for refrigeration, A/C, and electric applications. Built to handle demanding A/C and HVAC applications, it features an enclosed body for quieter running and longer life, and an oversized arch window to simplify wiring. It is a drop-in replacement for Furnas contactors.

• MARS 780 Professional Grade DP Contactor
• Designed for use on refrigeration, A/C & Electric
• Enclosed body for quieter running and longer life

Product Highlights

This definite purpose contactor is designed for demanding applications and provides quiet operation and improved durability.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M61460
• Country of Origin: CHINA

Technical Specifications

• Coil Voltage: 24 V AC
• Dimensions: 2.87 in W x 4.04 in D x 3.11 in H
• Frequency Rating: 50/60 Hz
• Maximum Load Current: 63 FLA
• Number of Poles: 3
• Series: 780
• Type: Definite Purpose
• Ind. F/L Amps: 50
• Res. Amps: 63
• Amps: 50
• Manufacturer: MARS
• Manufacturer Part Number: M61460
• Poles: 3NO
• Voltage: 24V
• Family Series: MARS Contactors
• Description: 3P 50A 24V BOX LUG TERM
• Nominal Coil Voltage: 24 VAC
• Inductive Current Rating: 50 A
• Coil Type: Magnetic
• Termination: Box Lug, Quick Connect
• Shunt: No
• Enclosure: Enclosed
• Resistive Rating: 63 A
• Approvals: UL
• Net Weight: 1.44 lbs
• Gross Weight: 1.485 lbs
