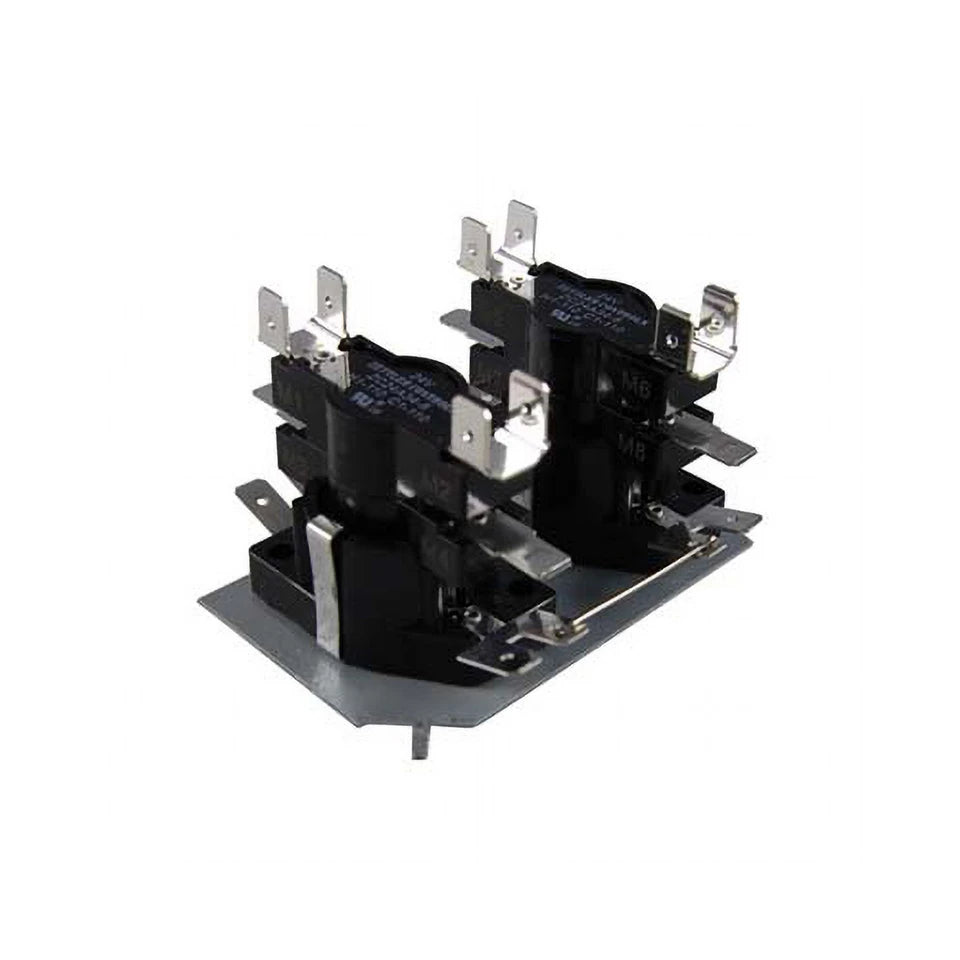

Mars M33833 Electric Heat Sequencer 24 VAC replc w-r 24a34-6

Product Description

The MARS M33833 heat sequencer is used in electric furnaces, baseboard heaters, heat pump blower control, and heating element control. It stages electric heat to prevent circuit overload, operating via a PTC (positive temperature coefficient) that ensures stable switching over a wide voltage range. Features quick connect terminals and various mounting positions.

• Solid state dependability
• Replaces Honeywell, white Rodgers, and Klixon
• 12-1/2 to 25 A contact ratings

Product Highlights

The MARS heat sequencer offers dependable solid-state performance and replaces Honeywell, White Rodgers, and Klixon models. It features a 12-1/2 to 25 A contact rating.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M33833

Technical Specifications

• Switch On: 1 to 30 sec
• Switch Off: 40 to 110 sec
• Input Voltage: 24 VAC
• Contact: (2) DPST
• Ambient Temperature: -50 to 165 deg F
• Contact Ratings: 12-1/2 to 25 A
• Full Load Rated Auxiliary Contacts: 25 FLA at 240 V
