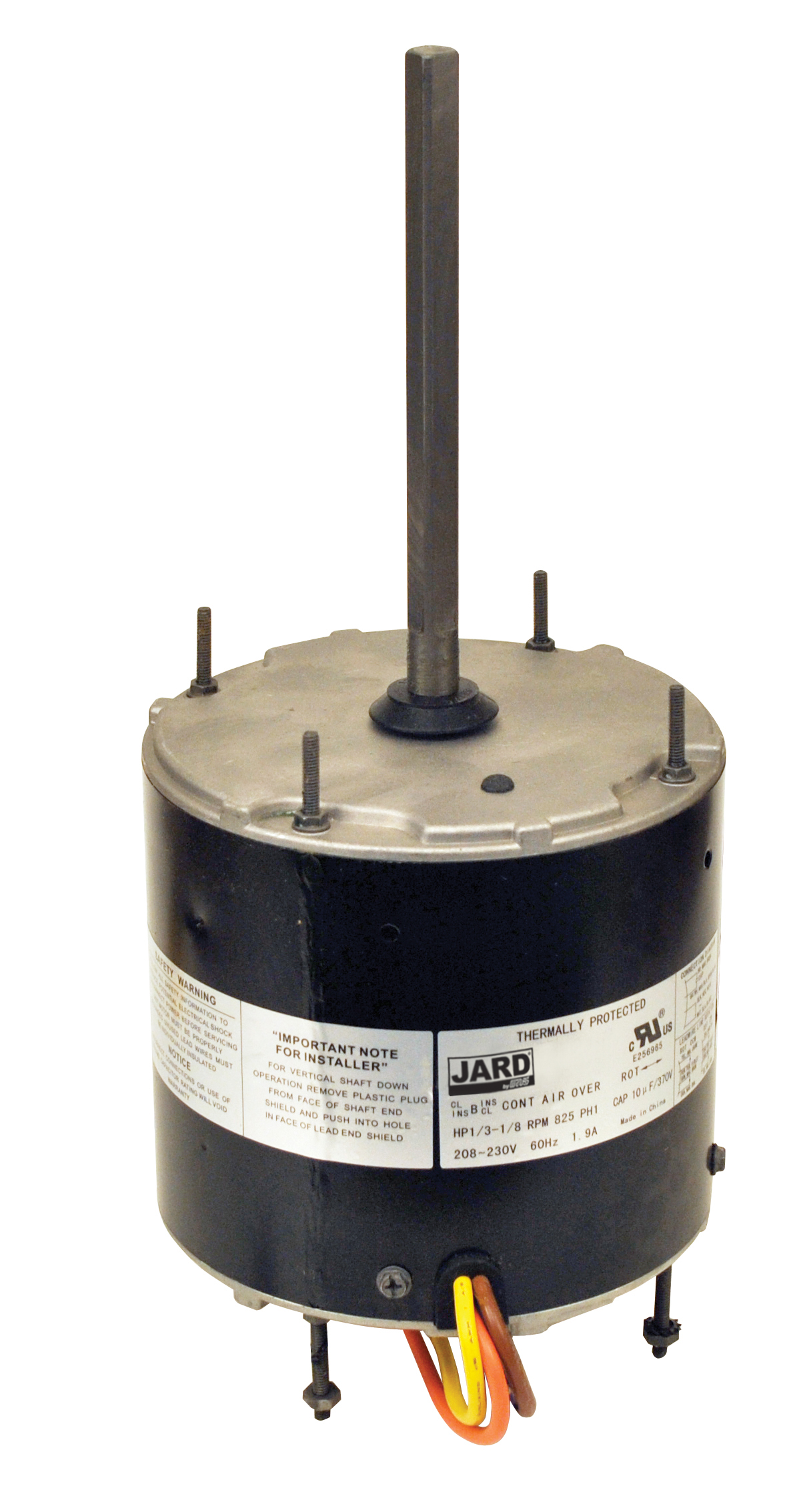

Mars M22458 Condenser Fan Motor 1/3-1/6 Hp 208-230V

Product Description

The MARS M22458 is a condenser fan motor designed for use in air conditioning and heat pump systems. Rated for operation at 208 to 230 volts and 1075 RPM, it delivers a horsepower range of 1/3 to 1/6 HP to match the load requirements of outdoor condenser units. This motor is a direct replacement component installed by HVAC technicians during routine equipment servicing or motor failure diagnosis. Its multi-horsepower capability makes it suitable across a range of condenser fan applications without requiring a unique single-HP unit for each job.

The M22458 is intended for residential and light commercial outdoor condenser units where the original fan motor has failed or requires replacement. It is well suited for applications where the system calls for a 208 to 230 volt single-phase condenser fan motor operating at 1075 RPM. HVAC service technicians typically keep this style of motor on hand as a versatile replacement to minimize truck stock and reduce callbacks on condenser fan failures.

Key Features

• Horsepower range of 1/3 to 1/6 HP accommodates multiple condenser fan applications
• Rated at 208-230 volts for compatibility with standard single-phase residential and light commercial power supplies
• 1075 RPM operating speed suited for typical condenser fan blade configurations
• Multi-horsepower design reduces the need for multiple motor SKUs in field inventory

Compatibility

Designed as an OEM-style replacement condenser fan motor for residential and light commercial air conditioning and heat pump outdoor units requiring a 208-230 volt, 1075 RPM motor in the 1/6 to 1/3 HP range.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the outdoor unit before removing the existing motor or handling any wiring. Verify that the replacement motor rotation direction, shaft size, and mounting configuration match the original unit requirements before completing installation. Follow all applicable local codes and manufacturer guidelines when reconnecting electrical connections.

Technical Specifications

• Horsepower: 1/6 to 1/3 HP
• Voltage: 208-230 volts
• Speed: 1075 RPM
• UPC: 685744224587

Standard Information

• Brand: MARS
• Manufacturer Part Number: M22458
