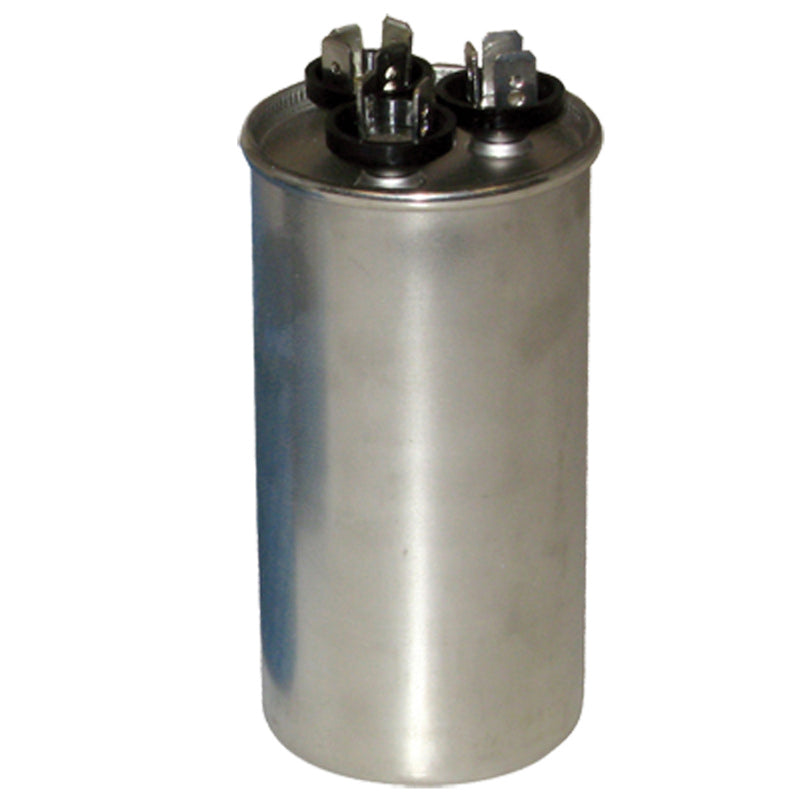

Mars M12796 60/7.5 MFD 440Vac Round Dual Capacitor

Product Description

The Mars M12796 dual section run capacitor serves two microfarad applications. By making various combinations of parallel connections, many other microfarad ratings can be obtained. These non-PCB capacitors feature a physical interrupter for safety and self-clearing metalized polypropylene film, making them suitable for general replacements.

• Dual Section Run Capacitors
• Used Primarily to Serve Two Microfarad Applications
• Non-Pcb Capacitors

Product Highlights

Perfect for general replacements in applications such as AC motors, air conditioning systems, and compressors.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12796

Technical Specifications

• Manufacturer Name: Mars
• Type: Dual Section Motor Run, Round
• Used On: 129 Series AC Motor, Air Conditioning System, Compressor
• Voltage Rating: 440 Volt 50/60 Hertz
• Capacitance: 60/10 microfarad
• Temperature Rating: -40 to 70 Deg C
• Number of Terminals: 4, 3, 2
• Material: Aluminum Case
• Size: 2" Width x 5.25" Height
• Approval: UL, CSA
