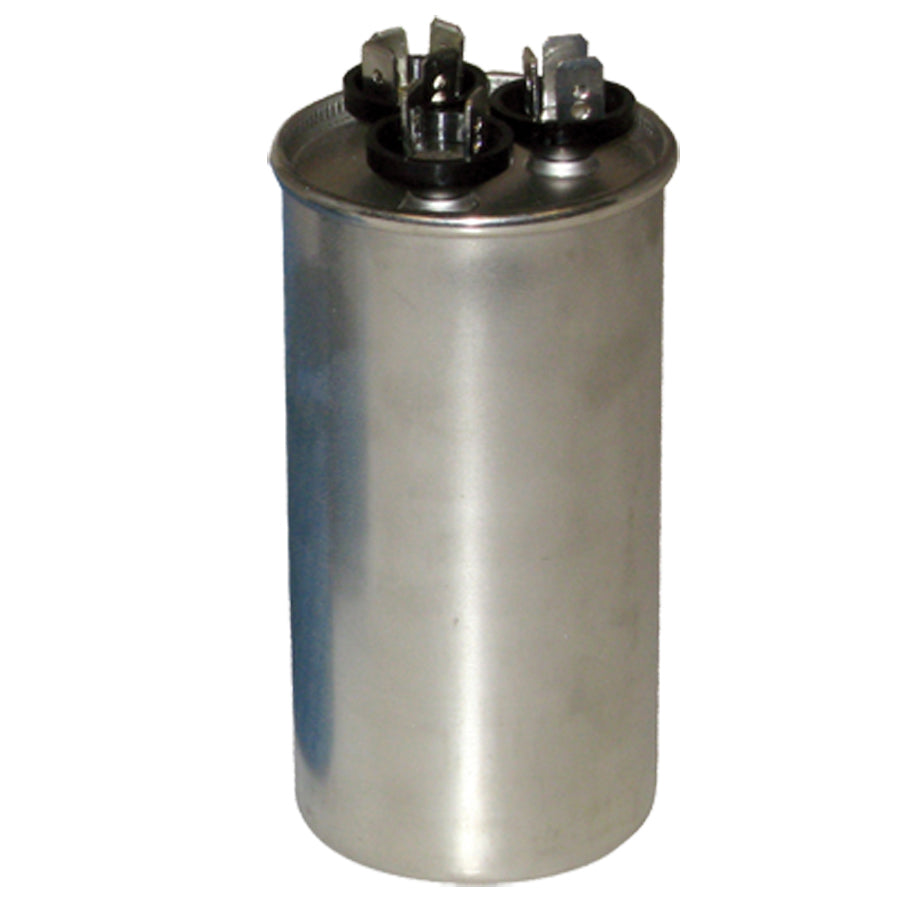

Mars M12790 50/5 mfd 440Vac Round Dual Capacitor

Product Description

The MARS M12790 dual section run capacitor serves two microfarad applications and can obtain many other microfarad ratings by making various combinations of parallel connections. This non-PCB capacitor features a physical interrupter for safety and self-clearing metalized polypropylene film. It is suitable for general replacements.

• Dual Section Run Capacitors
• Non-Pcb Capacitors
• Physical Interrupter Makes Our Capacitors Safe

Product Highlights

This dual section run capacitor is perfect for general replacements and used primarily to serve two microfarad applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12790

Technical Specifications

• Manufacturer Name: Mars
• Type: Dual Section Motor Run, Round
• Used On: 129 Series AC Motor, Air Conditioning System, Compressor
• Voltage Rating: 440 Volt 50/60 Hertz
• Capacitance: 50/5 microfarad
• Temperature Rating: -40 to 70 Deg C
• Number of Terminals: 4, 3, 2
• Material: Aluminum Case
• Size: 2" Width x 4.38" Height
• Approval: UL, CSA
