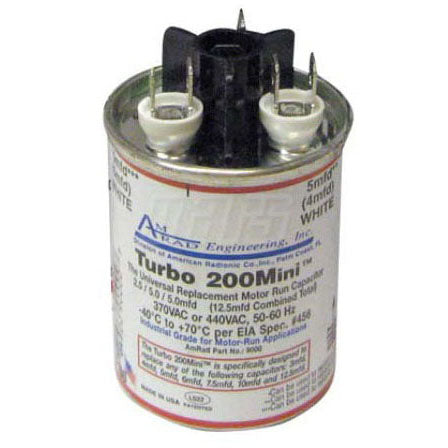

Mars M12100 Turbo 200 Mini Capacitor 2.5-15 mfd 440V

Product Description

The MARS M12100 Turbo 200 Mini Capacitor is a universal hard start replacement. This 2-wire turbo easy-start can replace any one of four compressor hard start kits. It is suitable for use on 121 series motors. The capacitor has a voltage rating of 440V 50/60 Hz and a capacitance of 2.5 to 15 microfarad.

• Universal Hard Start Replacement
• 2-Wire Turbo Easy-Start 4 Hard Start
• Replaces any One of Four Compressor Hard Start Kit's

Product Highlights

The MARS Turbo 200 Mini Capacitor is a permanent replacement capacitor protected to 10,000 AFC.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12100
• Country of Origin: UNITED STATES

Technical Specifications

• Manufacturer Name: Mars
• Type: Universal Motor Run, Round
• Used On: 121 Series Motor
• Voltage Rating: 440 Volt 50/60 Hertz
• Capacitance: 2.5 to 15 microfarad
• Temperature Rating: -40 to 70 Deg C
• Number of Terminals: 2 with 2 Blade, 1 with 1 Blade
• Material: Aluminum Case, Terne Plated Steel Cover
• Description: Turbo200Mini
• Mfd: 2.5 to 15
• Volts: 370VAC or 440VAC
