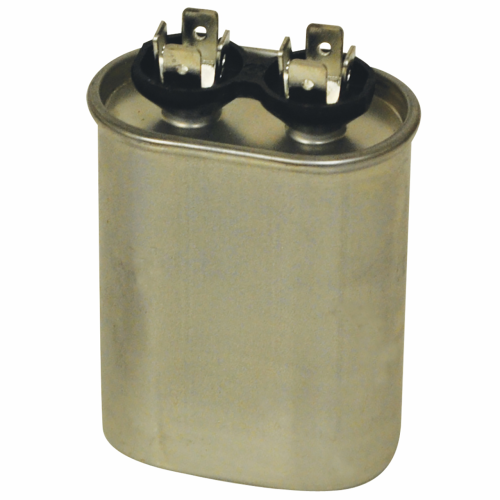

Mars M12037 Blue Box Single Section Run Capacitor 20 uF 440 VAC

Product Description

The MARS M12037 Blue Box Run Capacitor is a single section capacitor with a capacitance of 20 uF and a voltage rating of 440 VAC. It operates at 50/60 Hz and is designed with an oval shape and an aluminum case. Suitable for general replacements.

• Widest selection of ratings in the industry
• Non-PCB capacitors with physical interrupter for safety
• Perfect for general replacements

Product Highlights

The MARS Blue Box capacitor is ideal for residential and commercial AC and refrigeration applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M12037
• Country of Origin: Import

Technical Specifications

• Capacitance: 20 uF
• Voltage Rating: 440 V AC
• Frequency Rating: 50/60 Hz
• Shape: Oval
• Case Material: Aluminum
• Type: Single Section
• Temperature Rating: -40 to 70 deg C
• Dimensions: 5.25 in H x 2.806 in W
• Application: Capacitor
• Capacitor Type: Single Capacitance
• Operating Voltage: 440/370
• Operational Life in hour: 60000
• Recommended Use: Residential and Commerical AC and Refrigeration
• Terminals: 4
• Item Depth (in): 4.8000
• Item Height (in): 2.0000
• Item Width (in): 3.0000
• Product Depth (in.): 1.810
• Product Height (in.): 3.130
• Product Width (in.): 2.810
