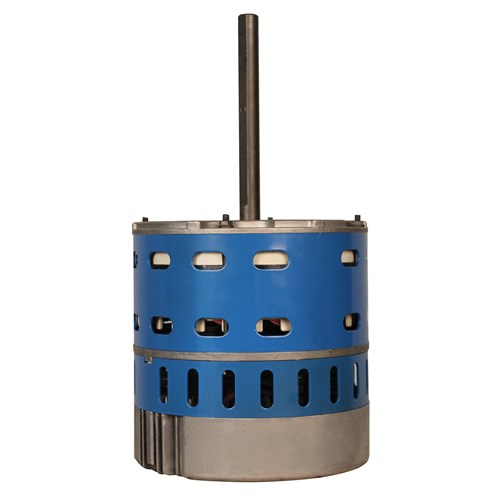

Mars M10865 ecm ac motor 1/2 hp

Product Description

The MARS M10865 is an ECM AC motor with a horsepower of 1/2 hp. It supports 120 and 240 V at 60/50 Hz and has a full load amperage of 6.4/3.8 A. Featuring an OAO enclosure and a 48 frame, it is designed for belly band mounting. The motor has 5 speeds and supports both REV+FWD rotation, suitable for various applications.

• Replaces All PSC Motors
• High efficiency 85 Percent
• Ball bearing, Thermal Overload Protection

Product Highlights

This ECM motor is designed for direct drive and connects directly to OEM harnesses. It features airflow adjustment and is ideal for truck stock.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: M10865

Technical Specifications

• Amperage Rating: 6.4/3.8 A Full Load
• Bearing Type: Ball
• Enclosure Type: OAO
• Frame: 48
• Frequency Rating: 60/50 Hz
• Horsepower: 1/2 hp
• Insulation Class: Class B
• Mounting Type: Belly Band
• Number of Speeds: 5
• Phase: 1
• Rotation: REV+FWD
• Shaft Size: 1/2 in Dia x 4.94 in L
• Temperature Rating: 55 deg C
• Type: ECM
• Voltage Rating: 120, 240 V
• Ambient Rating: 40C
